Description

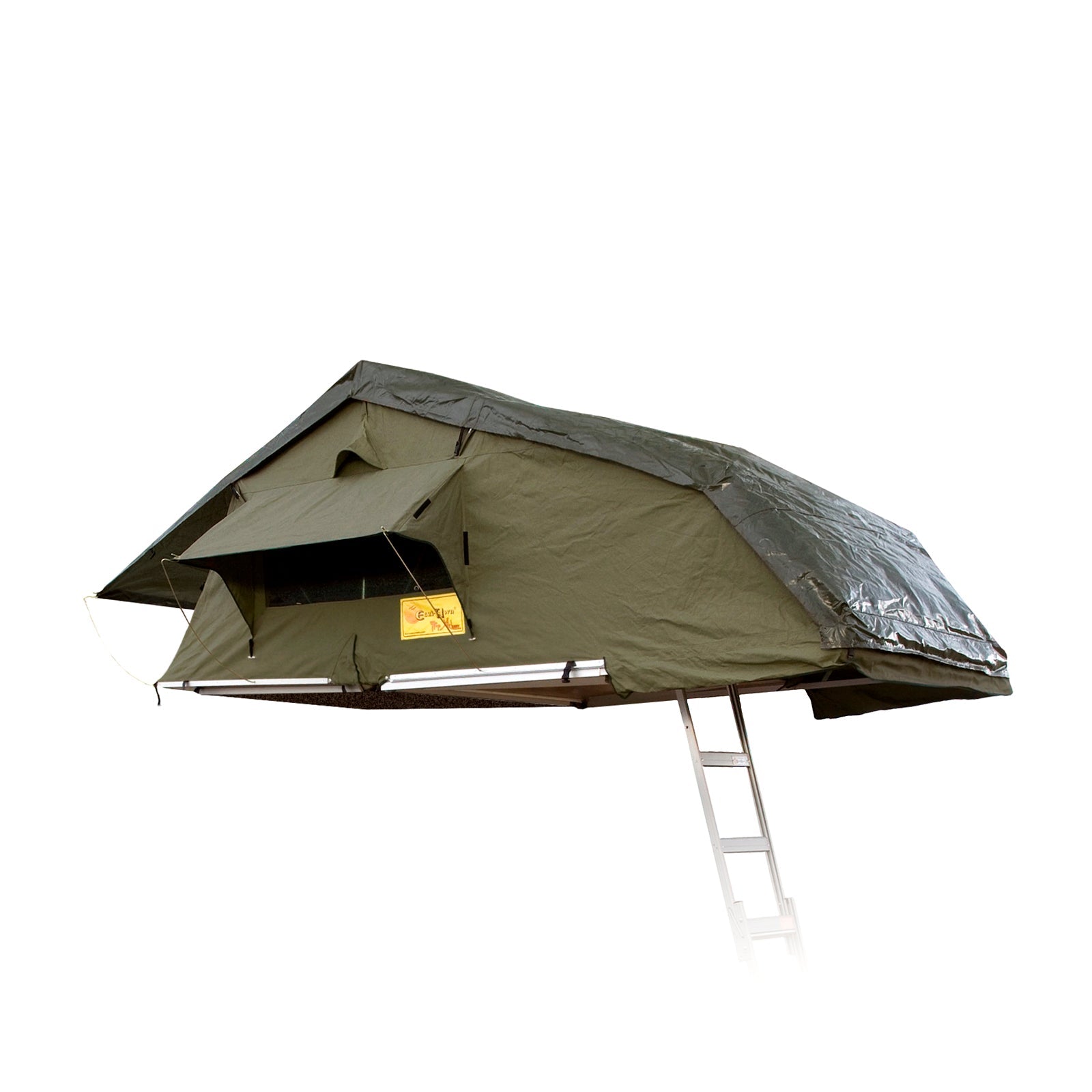

Eezi-Awn has been producing this style of roof top tent for over 30 years. The XKLUSIV is the Series 3 with the T-Top — Eezi-Awn's extended roof line that creates a full ground-level room with a 6'7" (2000mm) wall height. Same legendary 360GSM heavy-duty rip-stop canvas, same Meranti plywood floor, same folding platform design — but when you're parked for the night, you pull out the telescoping T-Top extrusions, hang the wall system, and suddenly you have a private room at ground level. For families or anyone who wants a proper base camp rather than just a sleeping platform, this is the one.
| SIZE | OPEN FOOTPRINT | CLOSED FOOTPRINT | SLEEPS | BEST FOR |
|---|---|---|---|---|
| 1400 |
96" L × 55" W 2440 × 1400mm |
48" L × 55" W | 2 | 2 adults |
| 1600 |
96" L × 63" W 2440 × 1600mm |
48" L × 63" W | 2–3 | 2 adults + 1 child |
| 1800 |
96" L × 71" W 2440 × 1800mm |
48" L × 71" W | 3–4 | 2 adults + 2 children |
| 2200 |
96" L × 87" W 2440 × 2200mm |
48" L × 87" W | 4–5 | 2 adults + 3 children |
Specifications
- Open Height: 51" | 1300mm
- Closed Height: 11" | 280mm
- Add-On Room Wall Height: 79" | 2000mm
- Mattress: 2.5" | 65mm fabric-covered high-density foam
- Tent Material: Heavy Duty Rip-stop Canvas
- Floor: 9mm solid Meranti plywood

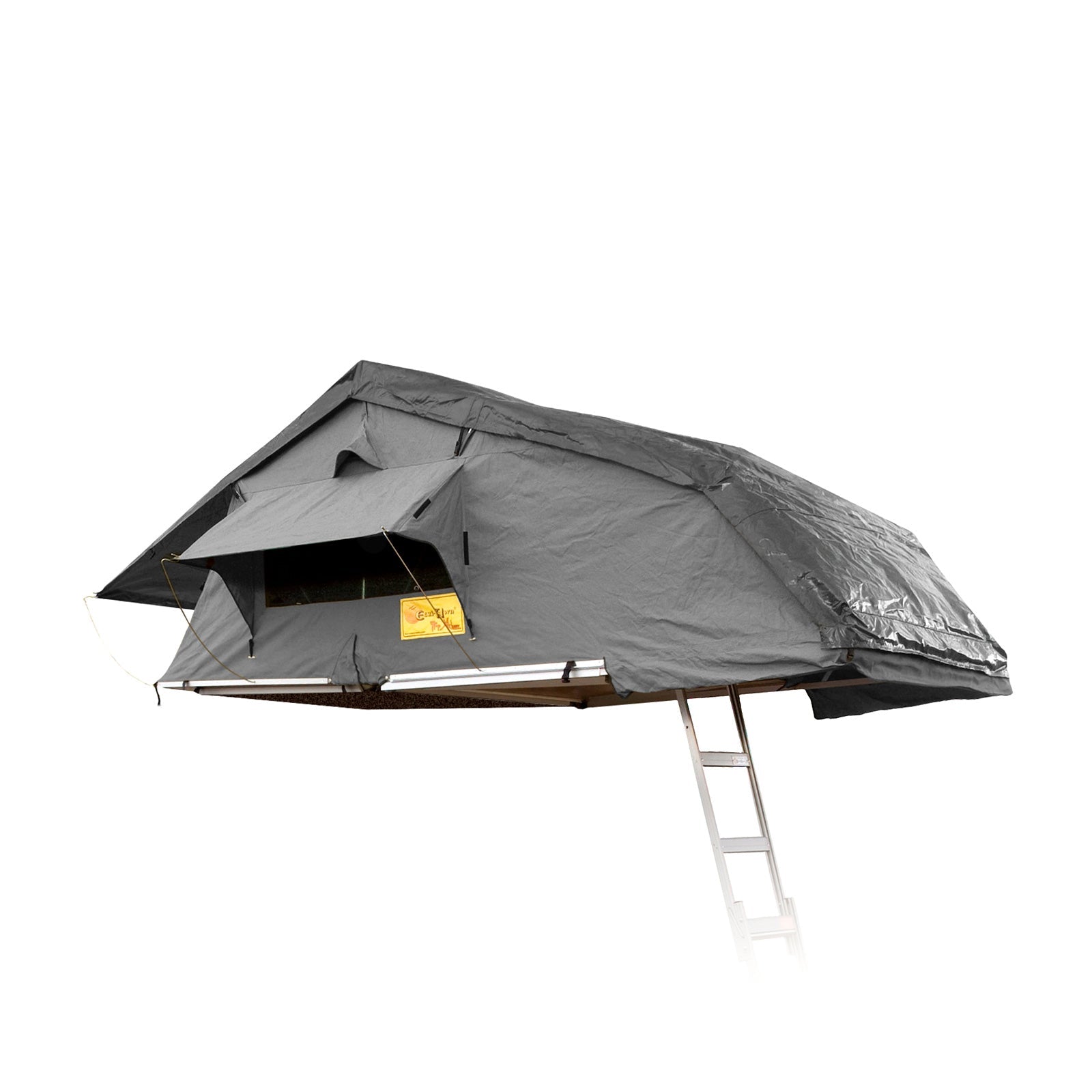

- Cover: UV-resistant heavy-duty PVC — available in Olive, Tan, or Black
- Tent Color: Olive, Beige, or Gray
- Ladder: XKLUSIV ladder with built-in incremental extension
Features

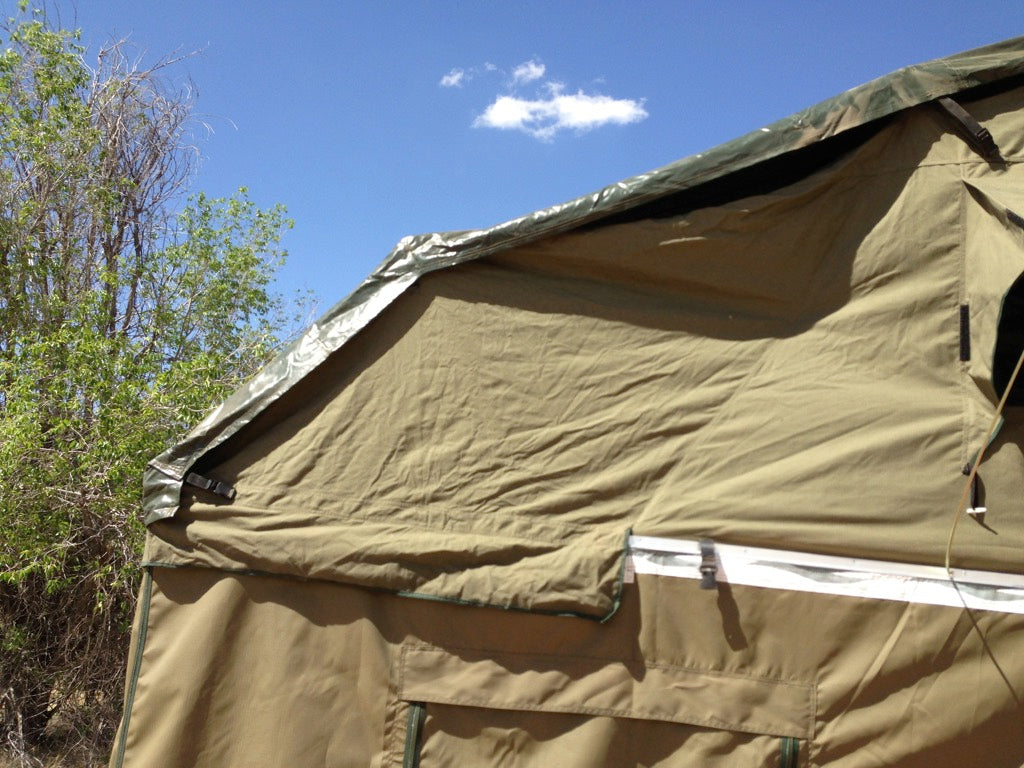

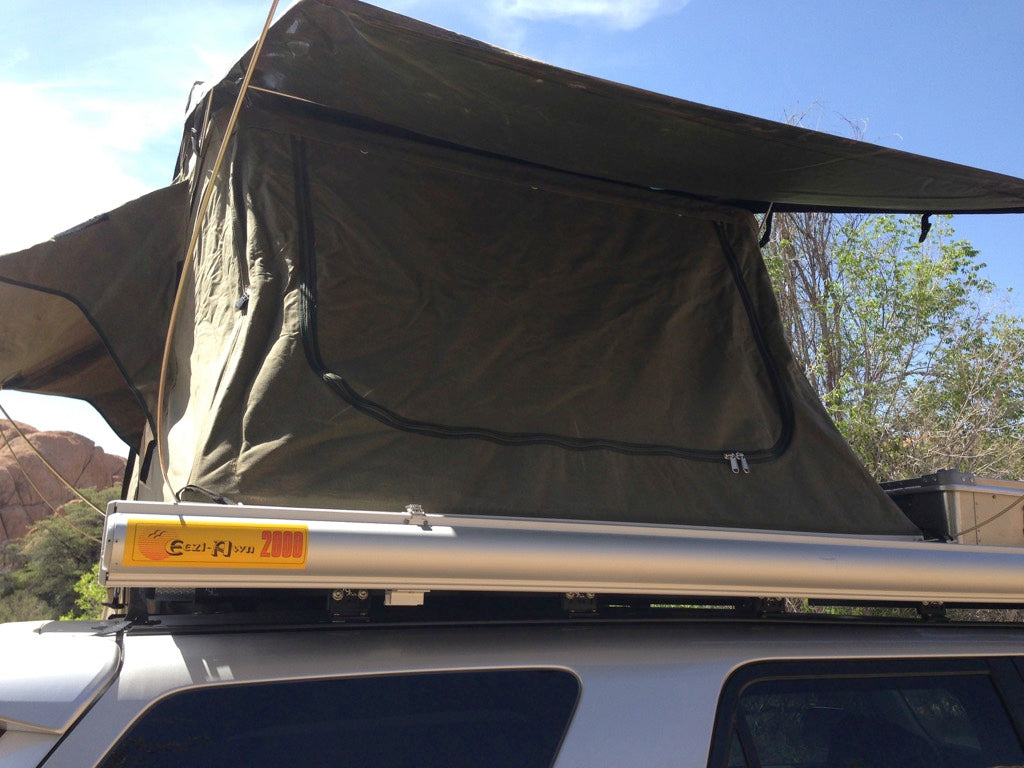

- T-Top Telescoping Roof Extension: Two U-shaped aluminum extrusions slide out horizontally and lock with friction knobs. A recessed second set elevates vertically to raise the roof line. The result is a full ground-level room off the side of the vehicle — stored completely inside the tent when closed.

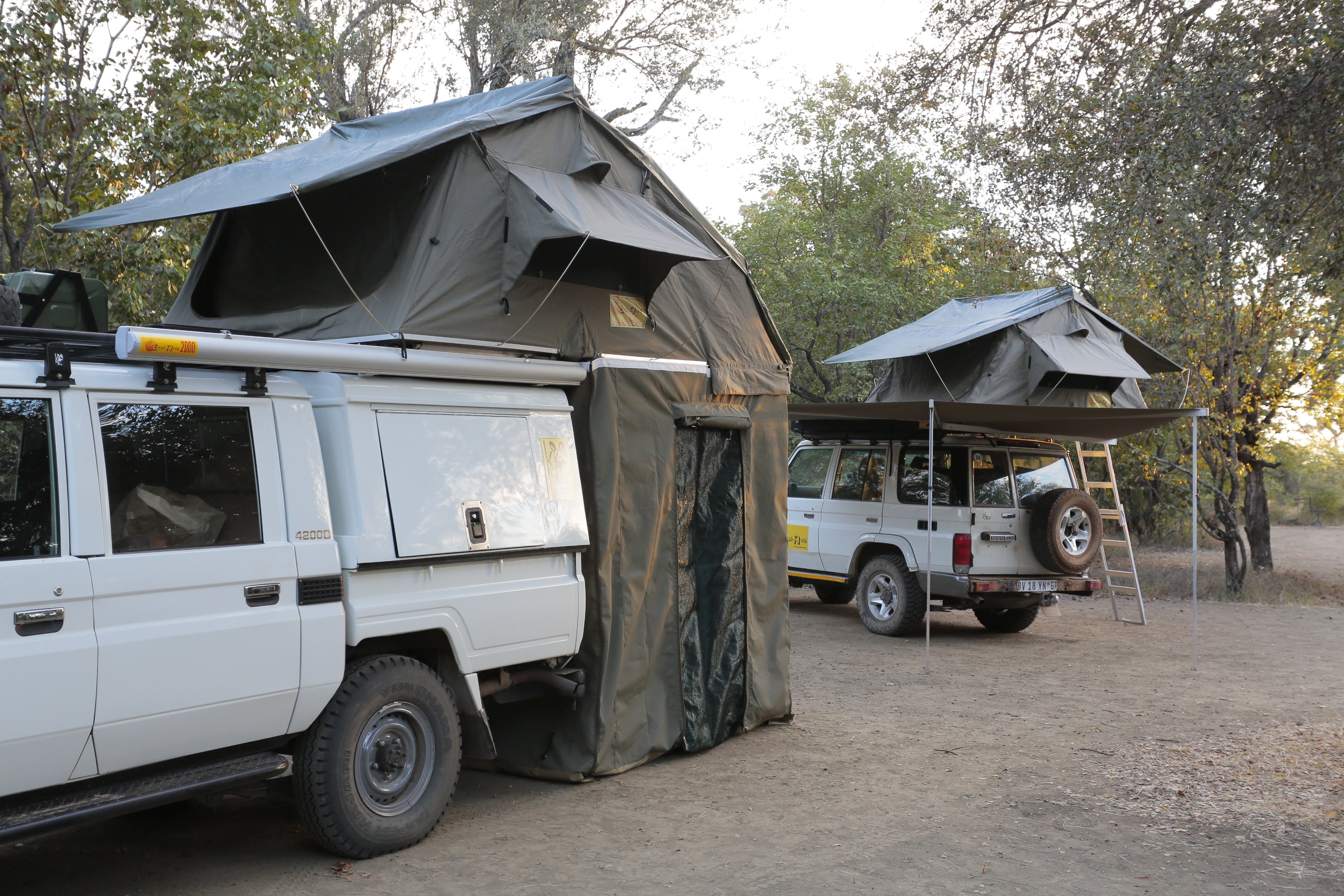

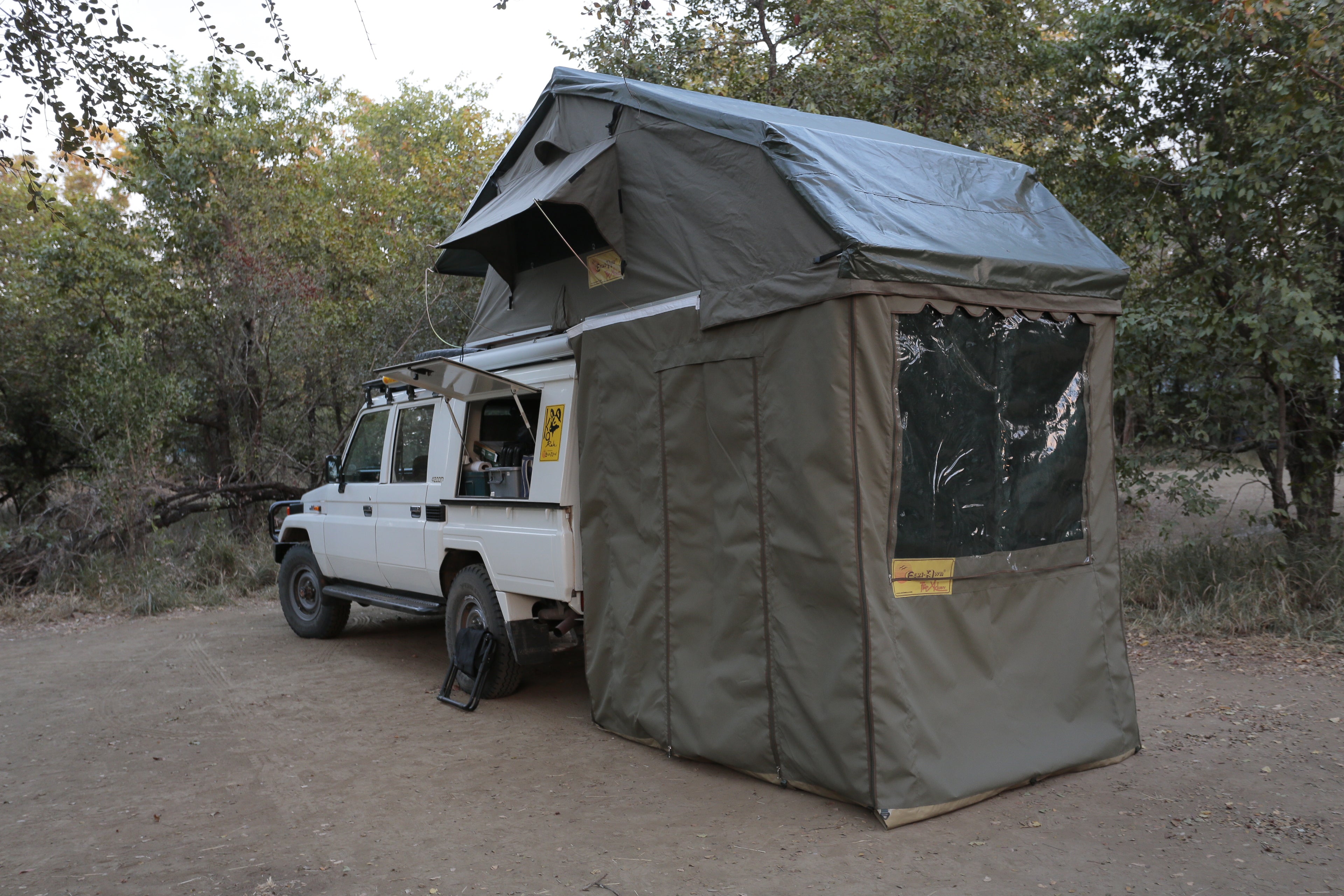

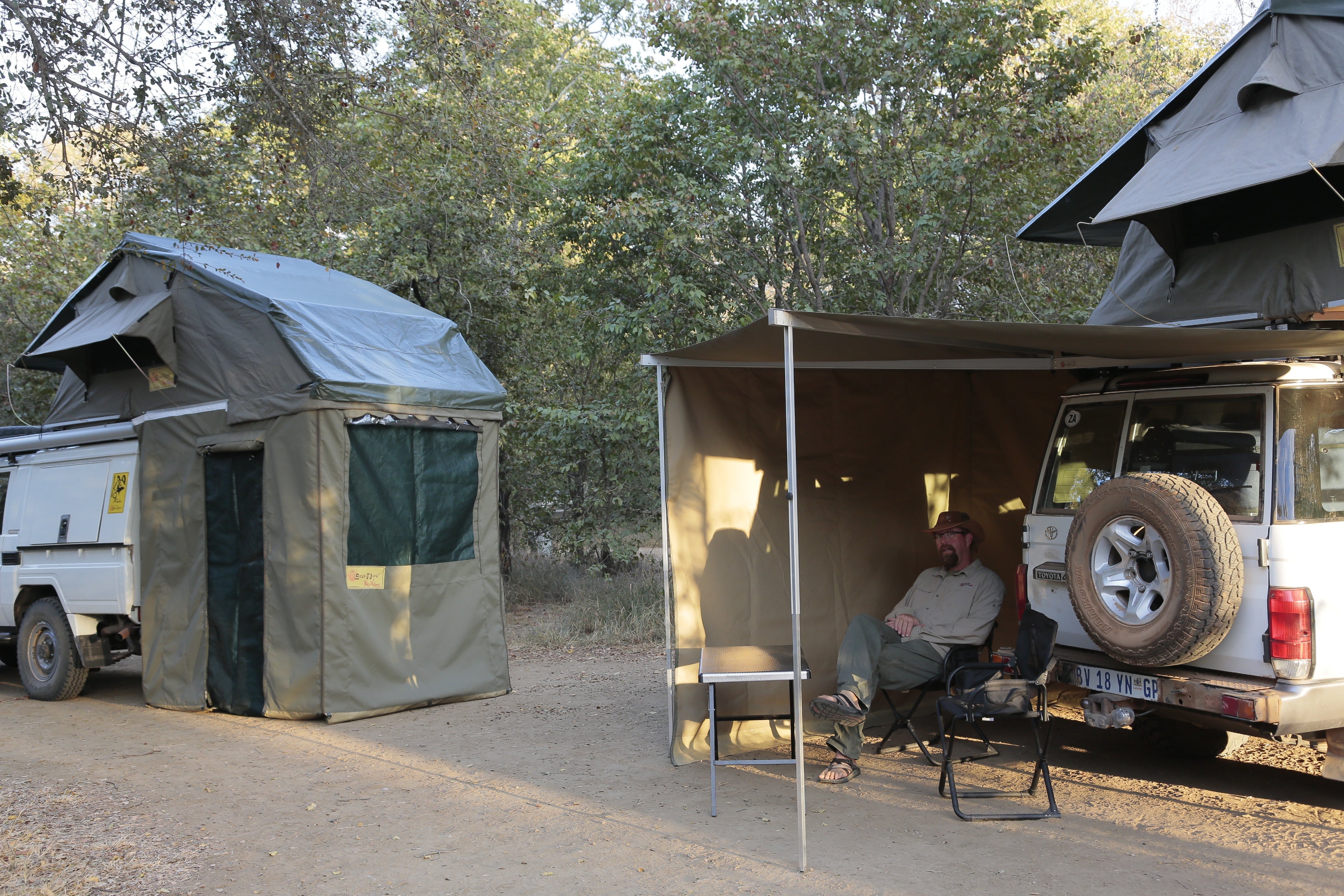

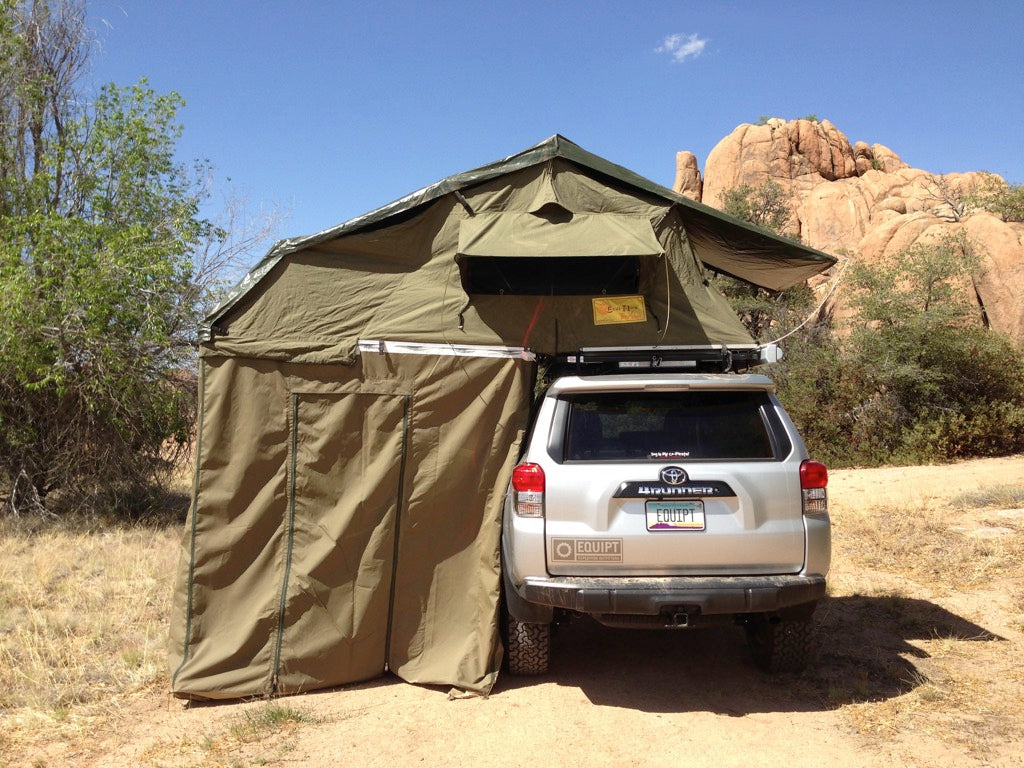

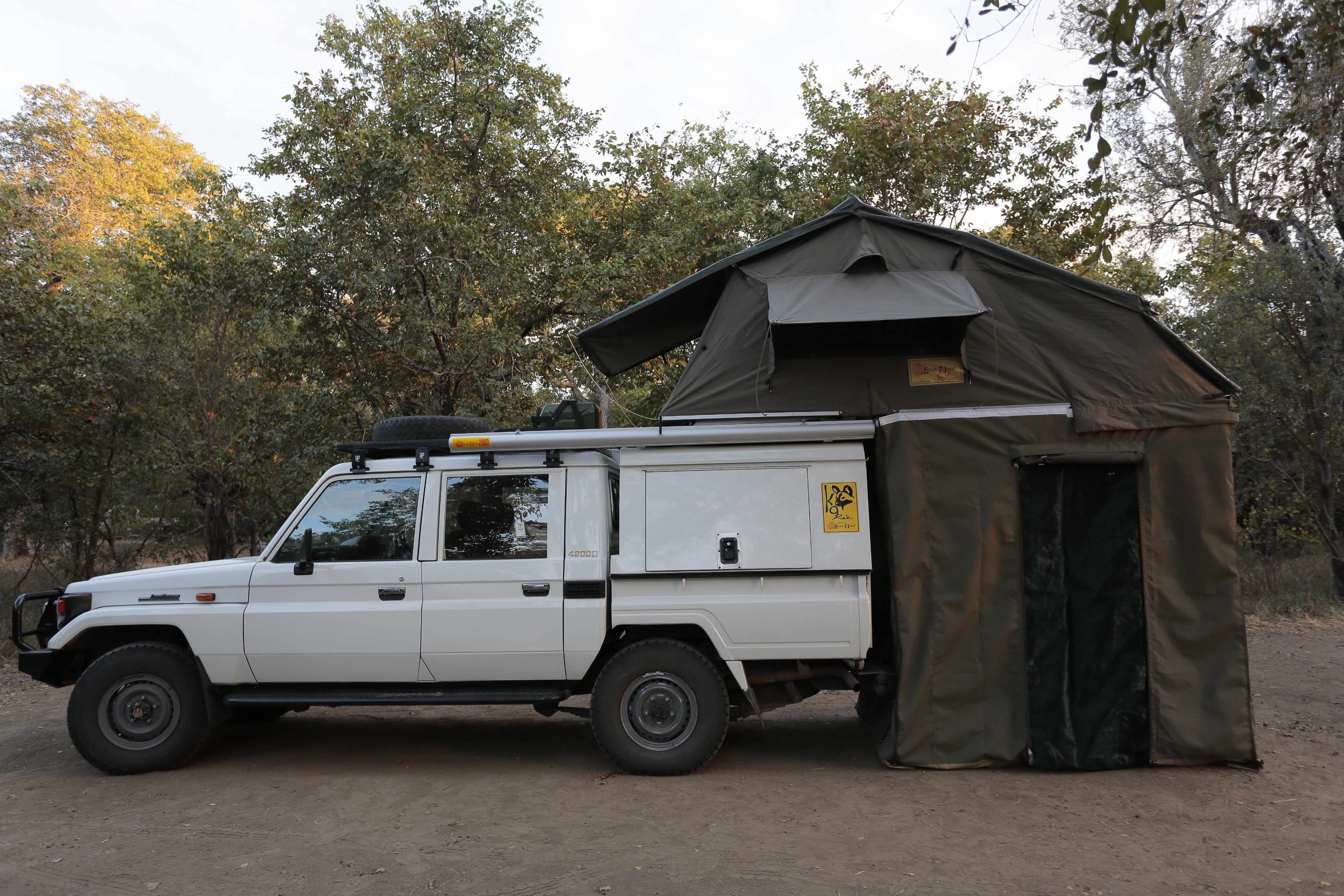

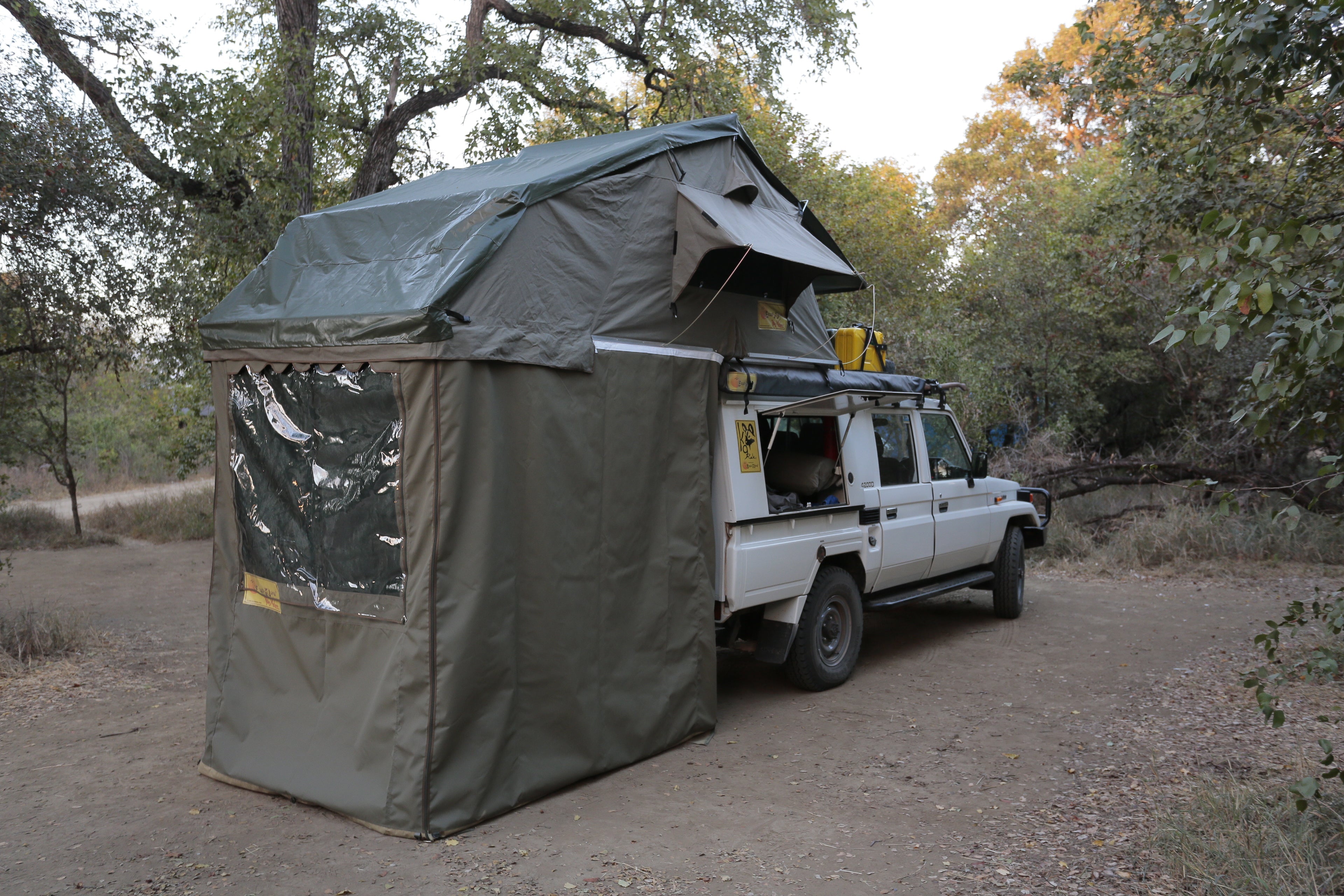

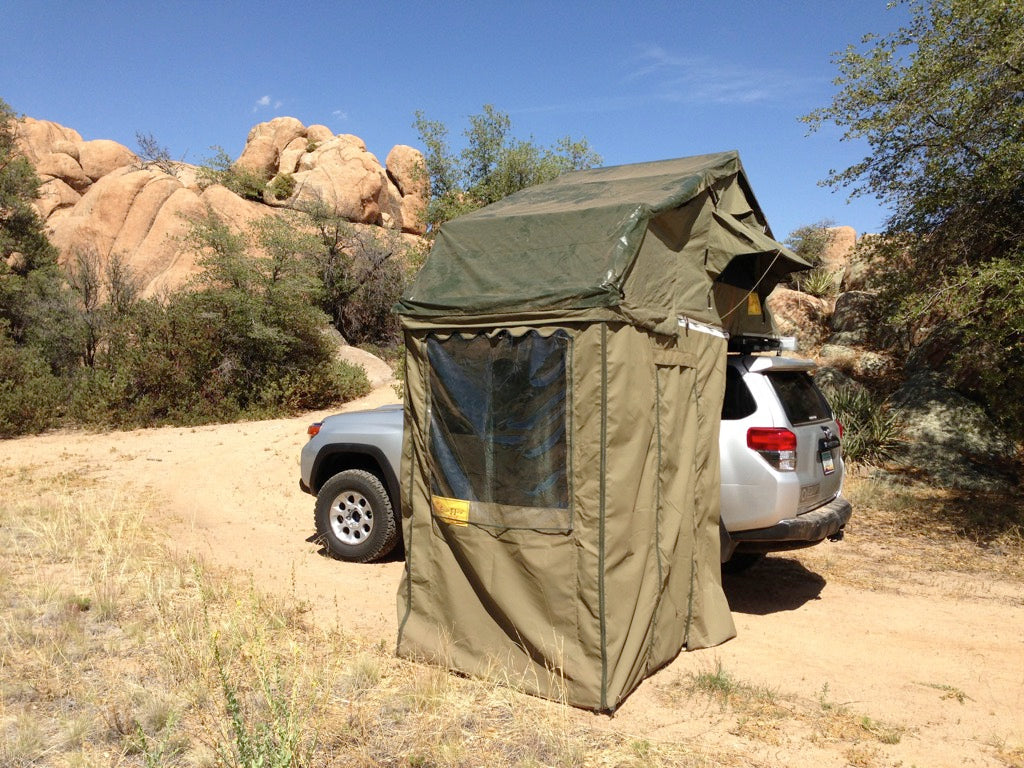

- Ground-Level Room with 6'7" Walls: The wall system ships in its own bag. Once the T-Top is extended, walls attach via male/female welts and hook-and-loop points. Bottom edges stake to the ground. Full privacy, full standing height.
- Same Canvas as Series 3: The XKLUSIV uses the same heavy-duty 360GSM rip-stop canvas that makes the Series 3 the industry benchmark. Not a downgraded material to hit a price point — identical construction.

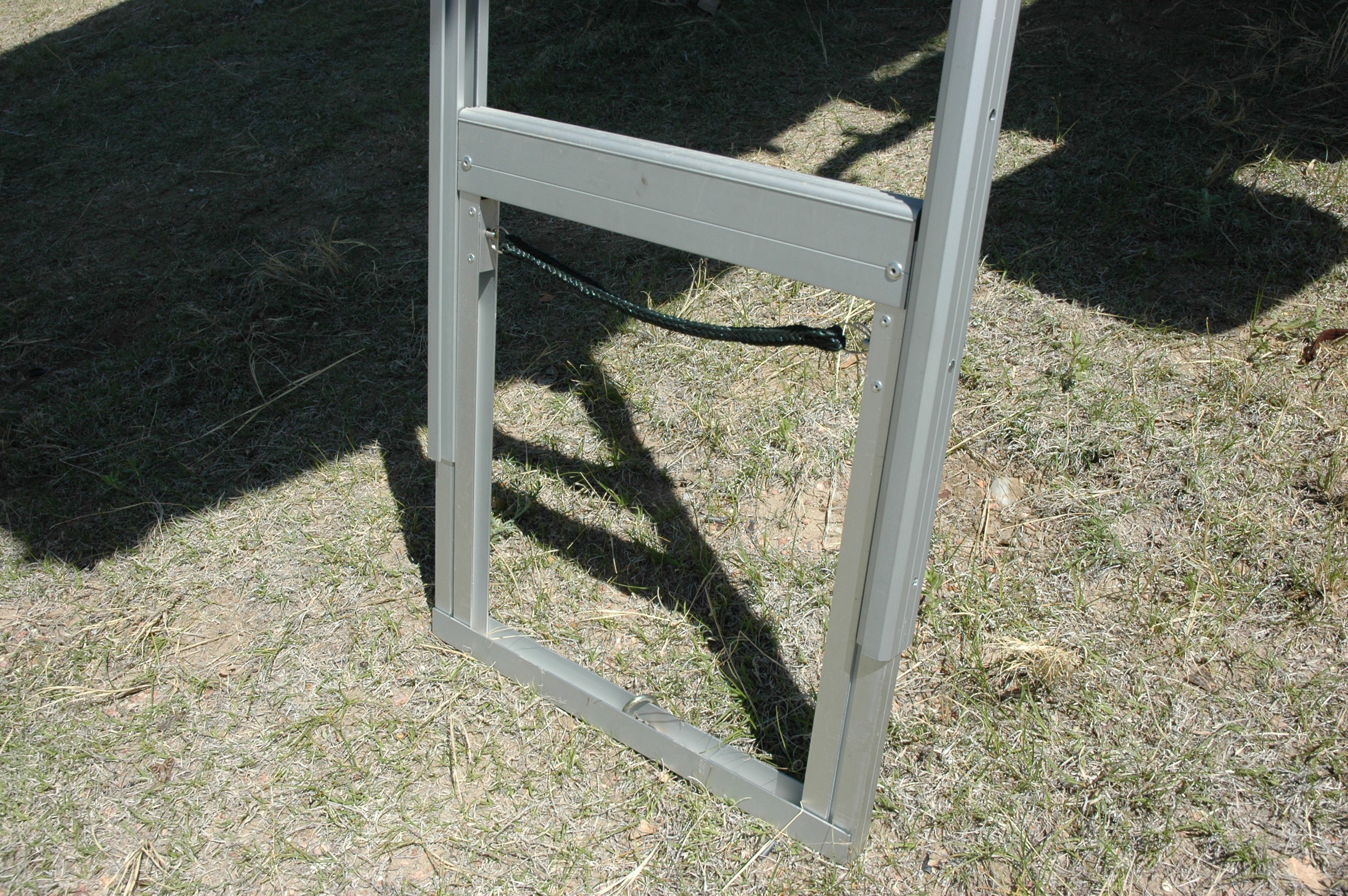

- XKLUSIV Ladder with Built-In Extension: The XKLUSIV ladder adjusts incrementally — unlike the standard Series 3 ladder — making it well-suited for taller lift heights and varied ground surfaces.

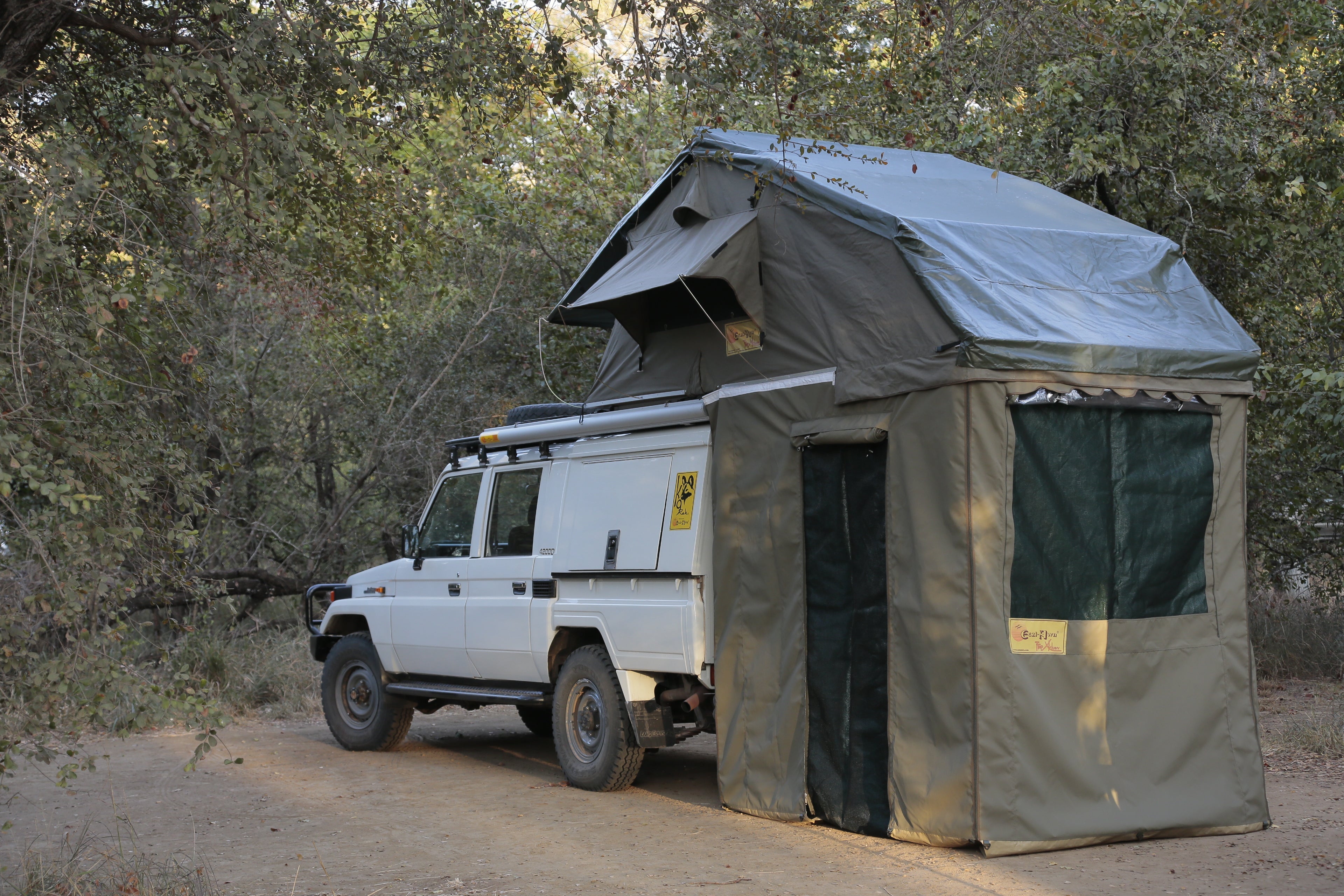

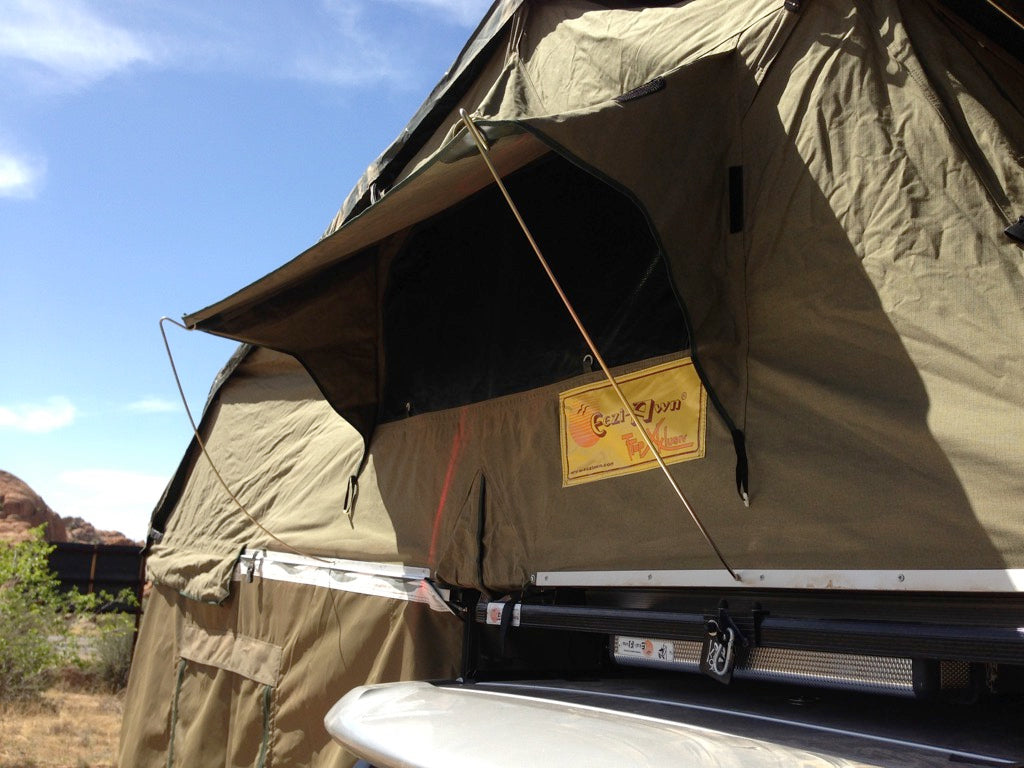

- Four Doors and Windows with Mesh: All four entry points include privacy panels and mesh screens. Two large window shades and four under-window pockets add functional comfort for extended stays.
- Meranti Plywood Floor: Dense, non-absorbent, insulating. No condensation sheet needed. Same floor that's proven on decades of international travel in every climate.
- Doubles as Trailer Tent: Universal mounting compatibility — vehicles or trailers. Configure for rear, left, or right-side entry.
Ideal For:
- Families who want a proper ground-level room for changing, gear staging, or a children's sleeping area
- Base-camp style overlanders who stay in one spot for multiple nights and want standing-height shelter
- Couples on extended trips who want the privacy and comfort of a full annex without a separate shelter
- Travelers who want the Series 3's proven platform but need more livable space at camp
In the box:
- XKLUSIV Roof Top Tent with T-Top telescoping extension
- Ground-level wall system (stored in separate bag)
- XKLUSIV patented anodized aluminum ladder with built-in extension
- UV-resistant PVC cover
- Mounting hardware
- Stakes for wall system
COMPATIBILITY

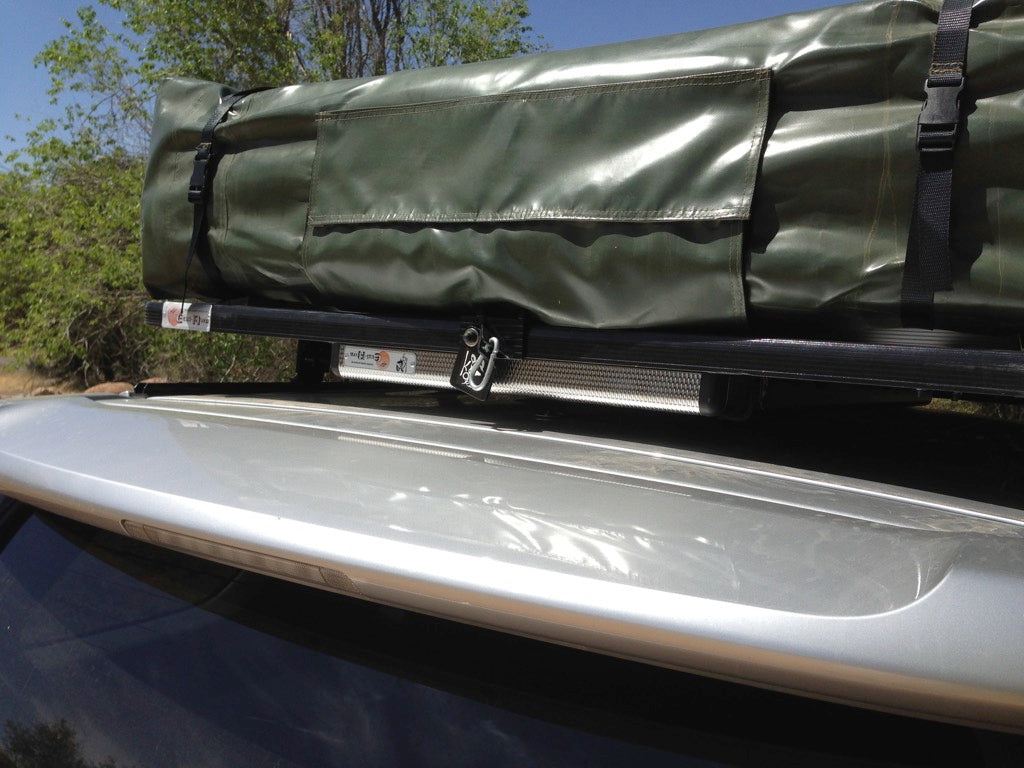

Mounts to most roof racks and crossbars via aluminum extrusions with 8mm bolt slots. Compatible with K9, Thule, Yakima, and similar crossbar systems. OEM roof bars are not recommended — load ratings are typically insufficient for tent weight plus occupants. The XKLUSIV is also compatible as a trailer tent. Configured for rear, left, or right-side entry.
WARRANTY
This product is covered by a 2-Year Limited Manufacturer Warranty. Warranty service for US customers is handled directly by Equipt Expedition Outfitters. We stock replacement parts for the full Eezi-Awn line in our Salt Lake City warehouse.
