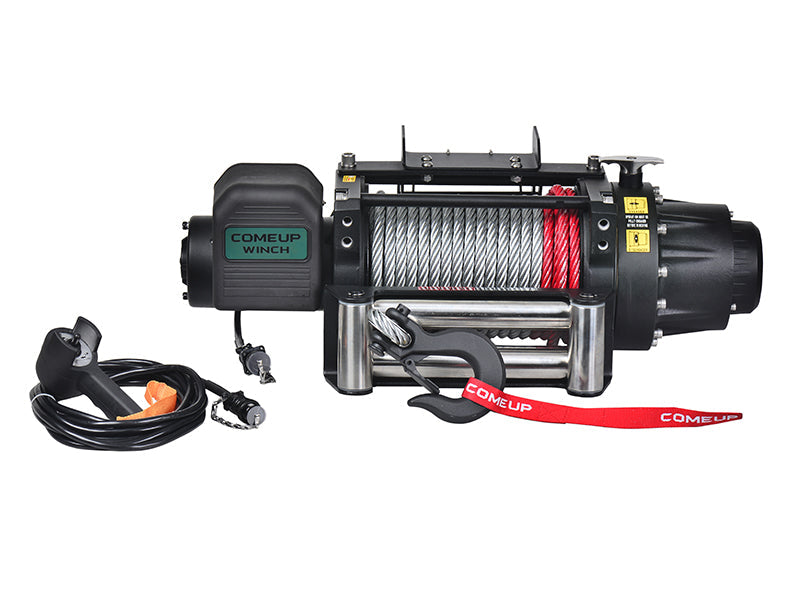

COMEUP WINCH | WALRUS 18 24V WINCH
COMEUP WINCH | WALRUS 18 24V WINCH
COMEUP WINCH | WALRUS 18 24V WINCH
COMEUP WINCH | WALRUS 18 24V WINCH

COMEUP WINCH | WALRUS 18 24V WINCH

Regular price $2,490.00
/

Part Number 281624

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 7.0 / 23 35
2,268 / 5,000 3.5 / 11.5 90
4,536 / 10,000 2.6 / 8.5 120
6,804 / 15,000 2.2 / 7.2 170
8,165 / 18,000 1.7 / 5.6 210



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 8,165 / 18,000 5.6 / 18.3
2nd 6,683 / 14,733 12.4 / 40.6
3rd 5,656 / 12,469 20.4 / 67
4th 4,903 / 10,809 27 / 89



Specifications:

  • Rated line pull: 8,165 kg / 18,000 lb single line
  • Line speed ( 1st layer): 5.2 mpm / 17.1 fpm 45 A at 12V, 7.0 mpm / 23 fpm 35 A at 24V no load
  • 0.8 mpm / 2.6 fpm 320 A at 12V, 1.7 mpm / 5.6 fpm 210 A at 24V full load
  • Motor: 5,220 w / 7.0 hp 12V series wound
  • 4,474 w / 6.0 hp 24V series wound
  • Gear train: 3-stage planetary 343:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 89 mm x 204L mm (3.5" x 8"L)
  • Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
  • Rope type: 6 × 29 - IWRC (Breaking strength 100.7 kN)
  • Rope size: 11.1 mm x 27 m (7/16” x 89’)
  • Mounting bolt pattern: 254 mm x 114.3 mm (10” x 4.5”)
  • 254 mm x 165 mm (10" x 6.5")
  • Mounting: Foot forward mounting only
  • * NOTE: Only foot forward mounting can meet SAE J706
