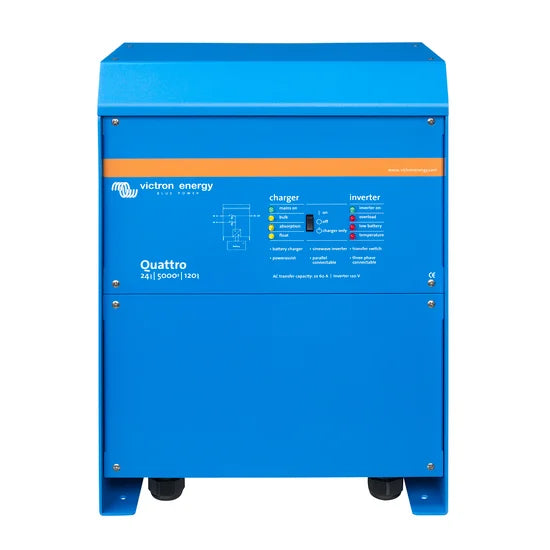

VICTRON ENERGY | Quattro Inverter & Charger 24V DC, 5000VA, 120V AC Output (1016015)

Description

• True sign wave
• Adaptive charging
• Power assist feature

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Power Assist Feature: The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

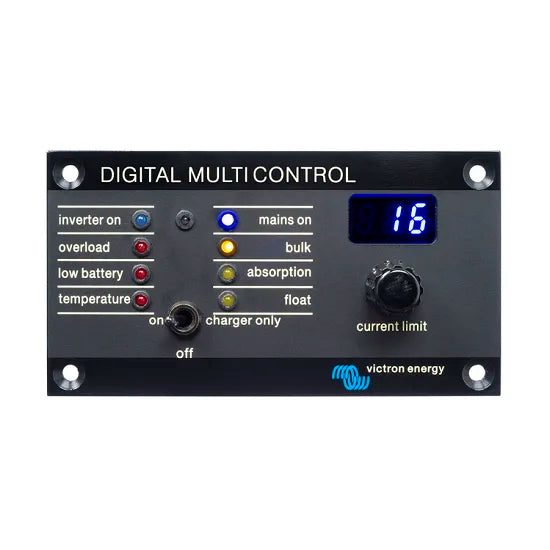

Monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the Color Control GX or Venus GX. Please note these products are not included - see accessories below to order them.

System configuring
• In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
• Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
• Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).

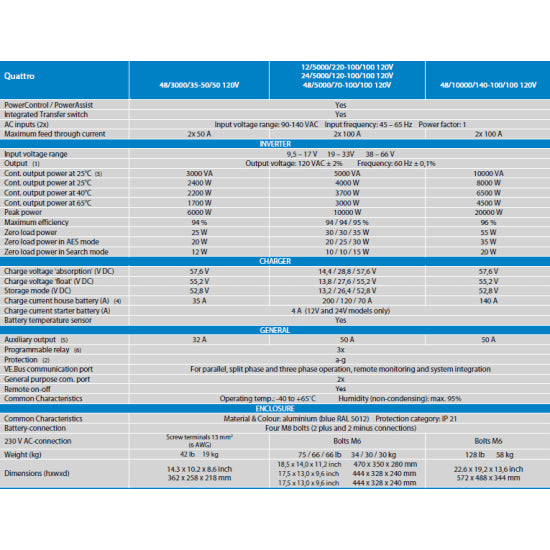

Specifications

• Input: 19-33V
• Cont. Output 25°C (VA): 5000VA
• Cont. Output 25°C (W): 4000W
• Dimensions (in): 17.5 H x 13.0 W x 9.6 D
• Dimensions (mm): 444 H x 328 W x 240 D
• Input Voltage Range: 19-33V
• Maximum Efficiency: 94%
• Output: 5000VA, 120V
• Output Voltage: 120 VAC ± 2% Frequency: 60 Hz ± 0,1%
• Peak Power: 10,000W
• Weight: 80 lbs
• Barcodes: 190760241871, QUA245023110, 8719076024187

(1016015)
