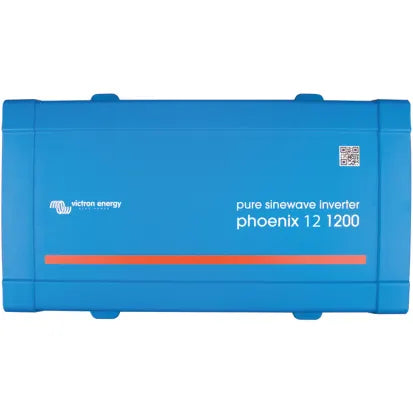

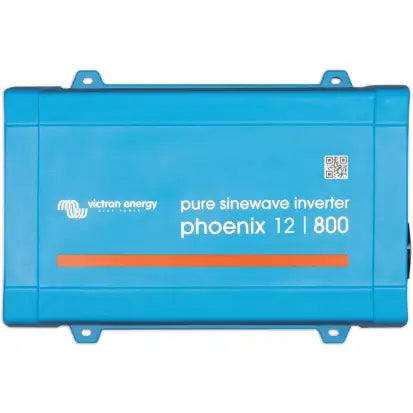

VICTRON ENERGY | Phoenix Sine Wave Inverter 12V (1015626)

Description

• Pure Sine Wave AC Output
• Ideal for TVs and computers
• Optional Bluetooth Connection

Developed for professional duty, the Phoenix range of inverters are suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. These Phoenix Inverters have 12 Volt input, 120 Volt Pure sine wave output, high peak power and high efficiency. They include optional Bluetooth connectivity (via VE.Direct), eco mode, a remote switch option and a standard NEMA5-15R AC receptacle output.

A VE.Direct communication port allows the inverter to be connected to either a computer (via VE.Direct to USB interface cable - see accessories below, not included) or to Apple and Android smartphones, tablets, etc. (VE.Direct Bluetooth Smart dongle needed - see accessories below, not included). With VE.Direct the Phoenix is fully configurable, including:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 120V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level
• Monitoring: In- and output voltage, % load and alarms

Features

• Input voltage between 9.2 and 17 Volts
• Max DC cable size 4 AWG
• Ideal for powering entertainment system, computers or small appliances
• NMEA5-15R (standard US Style AC receptacle) output connection.
• Connector for optional remote on-off switch (switch not included)
• User adjustable ECO Mode with auto switch off (programming requires optional equipment)
• Blue steel and plastic case
• IP 21 protection (no water protection)

Specifications

Model: 12/800

SKU: 1015626
