VICTRON ENERGY | Orion IP67 24V DC To DC Converters (1025621)
Max Continuous Output
SELECT OPTIONS
Max Continuous Output
Max Continuous Output
Description
- Waterproof
- Shockproof
- Ignition protected

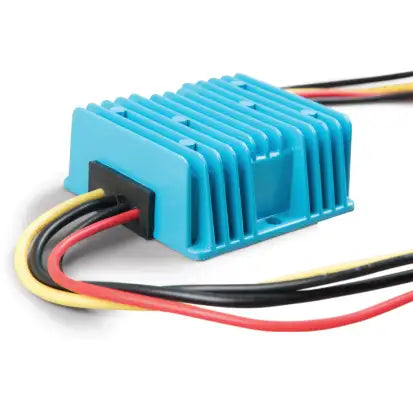

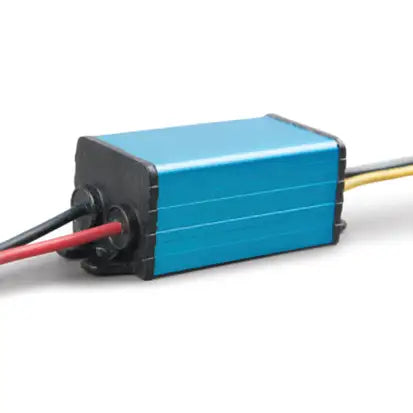

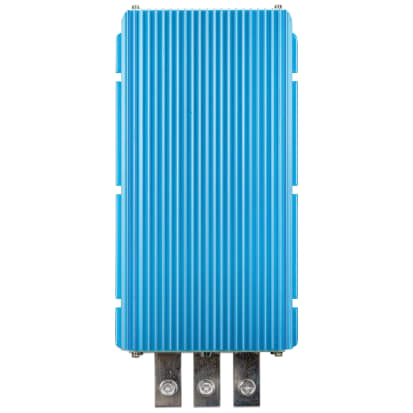

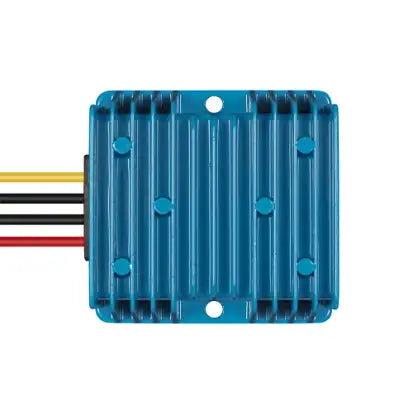

Completely encapsulated: waterproof, shockproof and ignition protected! Water, oil or dirt will not damage these Orion IP67 DC to DC converters. The casing is made of cast aluminium and the electronics are molded in resin.

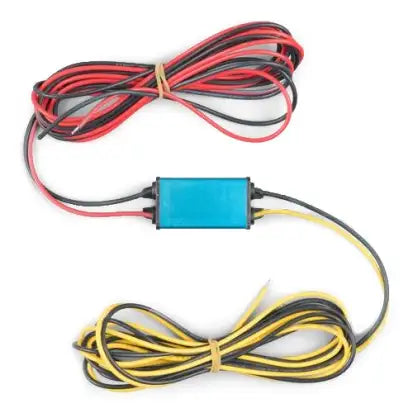

Extra-long input and output cables - thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range - with 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating - this converter can be used in a hot environment such as a machine room.
Specifications
Max Continuous Output: 5A
SKU: 1025621
- DC Output Voltage: 12V +/- 3%
- Depth: 0.8" (20 mm)
- Efficiency: 93%
- Height: 1" (25 mm)
- Input Voltage: 15 - 40VDC
- Max. Cont. Output: 5A
- Watts: 60 W
- Width: 1.7 " (43 mm)
- Barcodes: 8719076048428, 190760484285
Max Continuous Output: 10A
SKU: 1027069
- DC Output Voltage: 12V +/- 3%
- Depth: 1.25" (32 mm)
- Efficiency: 93%
- Height: 2.9" (74 mm)
- Input Voltage: 15 - 40VDC
- Max. Cont. Output: 10A
- Watts: 120W
- Width: 2.9" (74 mm)
- Barcodes: ORI241210260, ORI241210160, 8719076048435, HQ2029R2PBH, 190760484353
