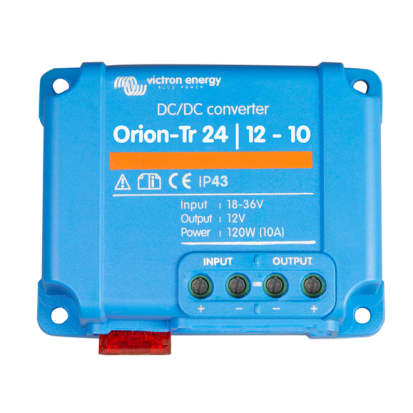

VICTRON ENERGY | Orion 24V TR DC to DC Non Isolated Converters 10A (1017779)

VICTRON ENERGY | Orion 24V TR DC to DC Non Isolated Converters 10A (1017779)

$33.15
Quantity:

Description

  • High efficiency
  • IP43 protection
  • Non-Isolated

High efficiency - using synchronous rectification, full load efficiency exceeds 95%.

• IP43 protection when installed with the screw terminals oriented downwards
• No special tools needed for installation

For more information or specifications, please refer to the manual or datasheet below.

Specifications

Continuous Output Current: 10A

  • Depth: 1.5" (37 mm)
  • Efficiency: 97%
  • Input Voltage Range: 18 - 35V
  • Height: 2.9" (73 mm)
  • Max. Output Current: 12A
  • Operating Temp.: -20 to +55°C
  • Output Voltage: 12.5V
  • Width: 3.7" (94 mm)
  • Barcodes: 190760228933, 8719076022893

(1017779)
