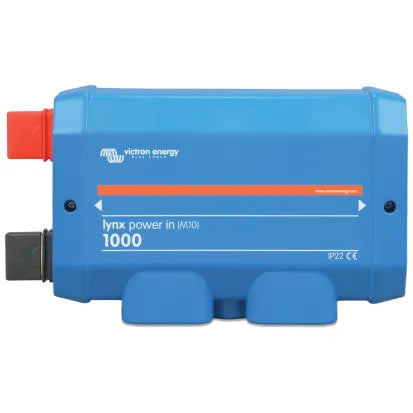

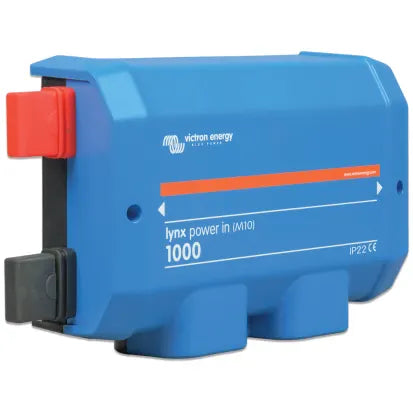

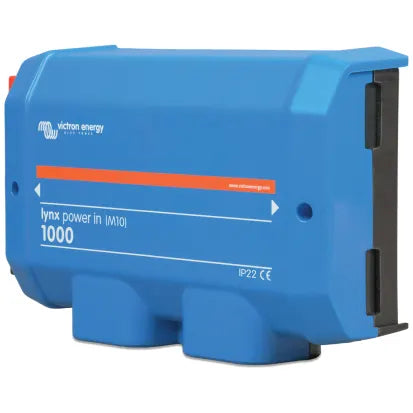

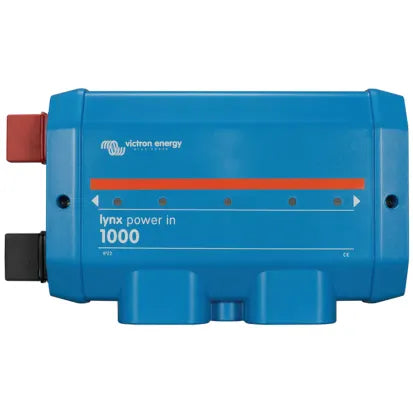

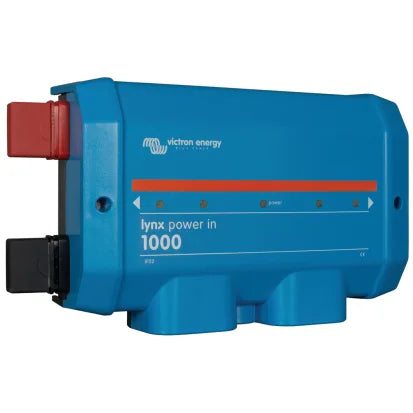

VICTRON ENERGY | Lynx Power In Modular DC (1022578)
VICTRON ENERGY | Lynx Power In Modular DC (1022578)
VICTRON ENERGY | Lynx Power In Modular DC (1022578)
VICTRON ENERGY | Lynx Power In Modular DC (1022578)
VICTRON ENERGY | Lynx Power In Modular DC (1022578)
VICTRON ENERGY | Lynx Power In Modular DC (1022578)

VICTRON ENERGY | Lynx Power In Modular DC (1022578)

$141.10
Busbar:

Busbar
Quantity:

Description

  • Available as M8 and M10 models

A modular DC bus bar, used to connect batteries to the Lynx DC distribution system, available as M8 and M10 models.

• 290mm H x 170mm W x 80mm D

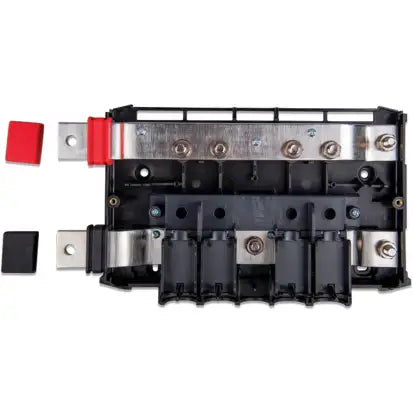

• Tinned copper Busbar
• Busbar: 8mm H x 30mm W
• Operating temperature range -40°C to +60°
• Storage temperature range -40°C to +60°
• Humidity Max. 95% (non-condensing)
• Protection class IP22

Specifications

Busbar: M8

SKU: 1022578

  • Volts: 9 - 60V DC
  • Current: 1000A DC continuous
  • Volts: 9 - 60V DC
  • Barcodes: 8719076022589, 190760225895, LYN020102000

Busbar: M10

SKU: 1042230

  • Current: 1000A DC continuous
  • Volts: 9 - 60V DC
  • Barcodes: 8719076057642, 190760575815, 8719076057581, LYN020102010
