VICTRON ENERGY | Centaur Battery Charger (1015630)

Description

• 12 or 24V DC
• Corrosion resistant
• DC to DC or AC to DC

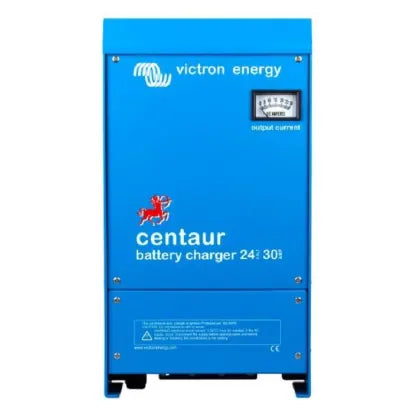

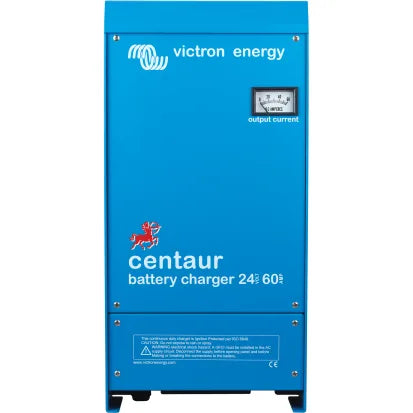

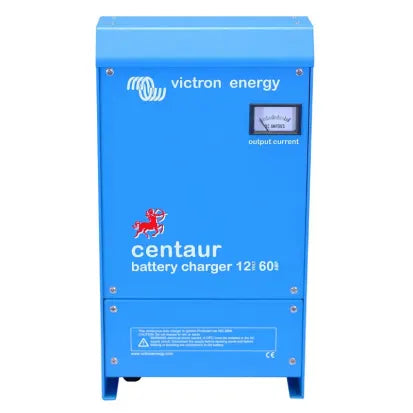

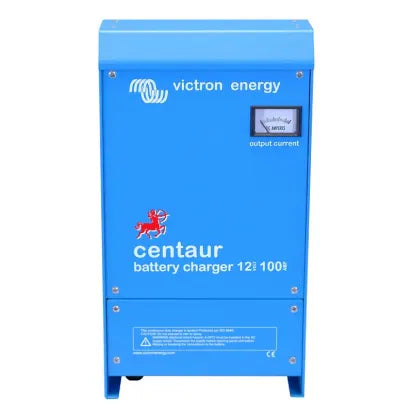

Victron Centaur battery charger. Quality without compromise
Aluminium epoxy powder coated cases with drip shield and stainless steel fittings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation). All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.

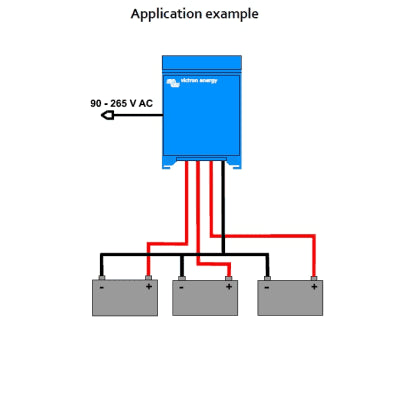

Three outputs that each can supply the full output current. Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.

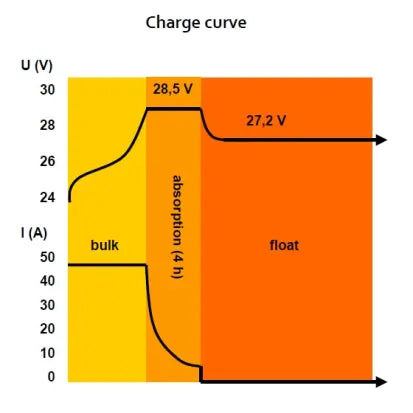

Three-stage charging, with temperature compensation. The Victron Energy Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate.

An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.

Are Victron Chargers good?

It is one of the top 110 chargers available for 12v LIPO batteries. It has received high ratings. While it is pricier, it seems to be a high-quality device that will function reliably for many years without issues, and it is not likely to require frequent replacement.

Specifications

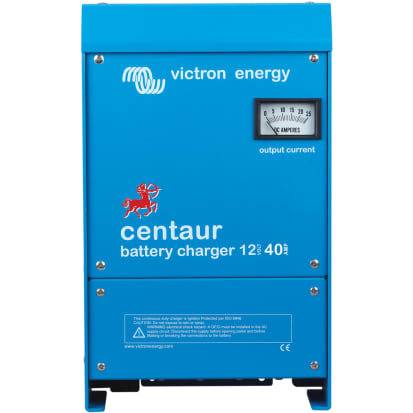

12/40A

SKU: 1015630
