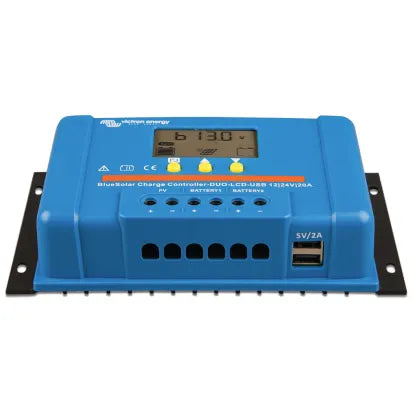

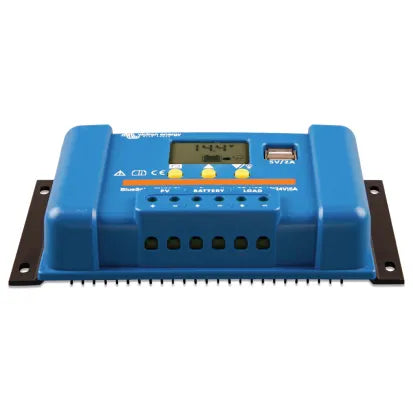

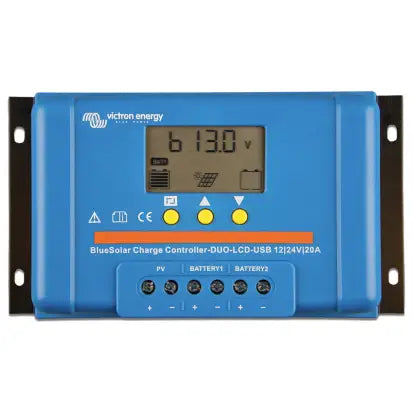

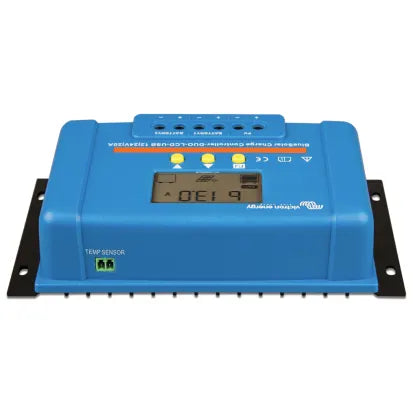

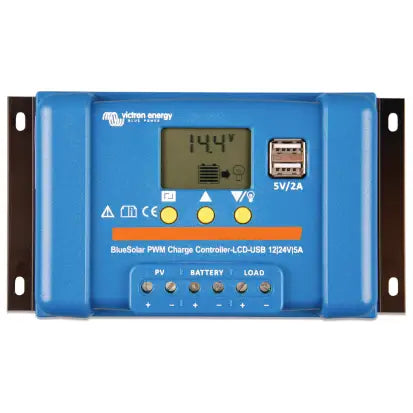

VICTRON ENERGY | BlueSolar PWM Charge Controller LCD & USB (1041681)
Rated Charge Current
SELECT OPTIONS
Rated Charge Current
Rated Charge Current
Description
- 12/24V DC
- Day/night timing of output
- Two 5 Volt USB outputs
Features
Liquid crystal display
For status monitoring and set-up
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.
Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
Overload protection
Shut down after 60s in case of 130% load, Shut down after 5s in case of 160% load, Short circuit: immediate shut down
Specifications
- Max Solar Voltage: 28V / 55V
- Operating Temp. Range: -35 to +60°C (full load)
- Rated Charge Current: 5A
- Size: 3.8"H x 6.7"W x 1.4"D
- Terminal Size: AWG10
- Volts: 12/24V DC
- Barcodes: 190760461729, SCC010005050
Specifications
- Max Solar Voltage: 28V / 55V
- Operating Temp. Range: -35 to +60°C (full load)
- Rated Charge Current: 20A
- Size: 3.8"H x 6.7"W x 1.4"D
- Terminal Size: AWG10
- Volts: 12/24V DC
- Barcodes: SCC010020050, 190760462023
