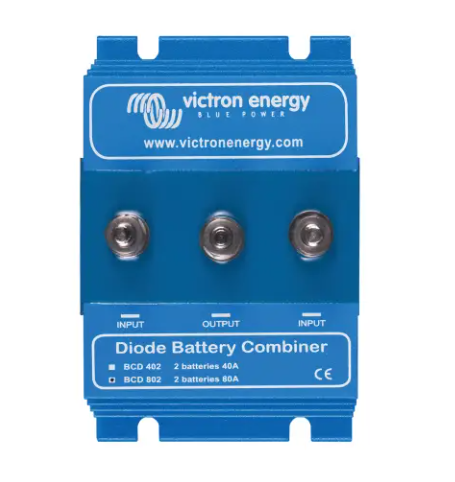

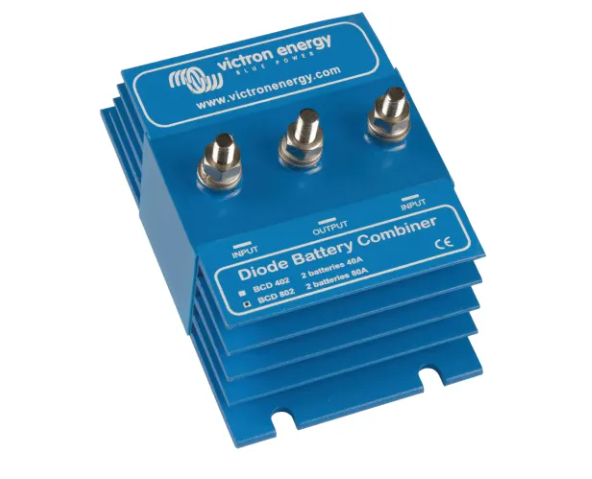

VICTRON ENERGY | BCD 802 Diode Battery Combiner (1044364)
Quantity:
SELECT OPTIONS
Quantity:
Description

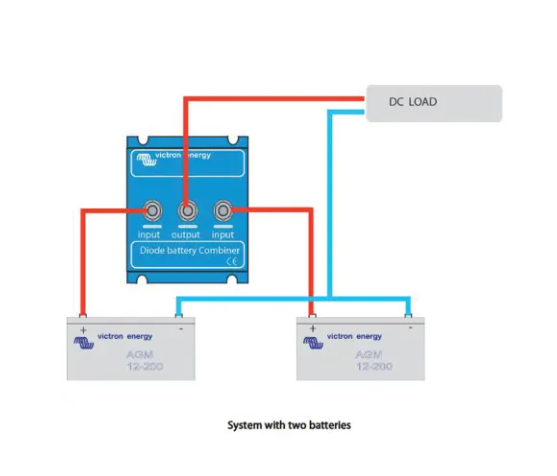

Diode battery combiners serve to ensure uninterrupted DC power supply to essential equipment, including electronic engine control systems. By utilizing a diode battery combiner, multiple DC power sources can operate in parallel to provide power to the critical load. The failure of any single source will not disrupt the power supply to the essential load.
Specifications
Connection
M6 bolts
Maximum Continuous Current
80A
Nominal Battery Voltage
12V and 24V
Number of Batteries
2
Size
2.4"H x 4.7"W x 3.0"D
(1044364)
