VIAIR | VMS Dual Compressor Custom Lock Mount Bracket
Fitment
SELECT OPTIONS
Fitment
Fitment
Description

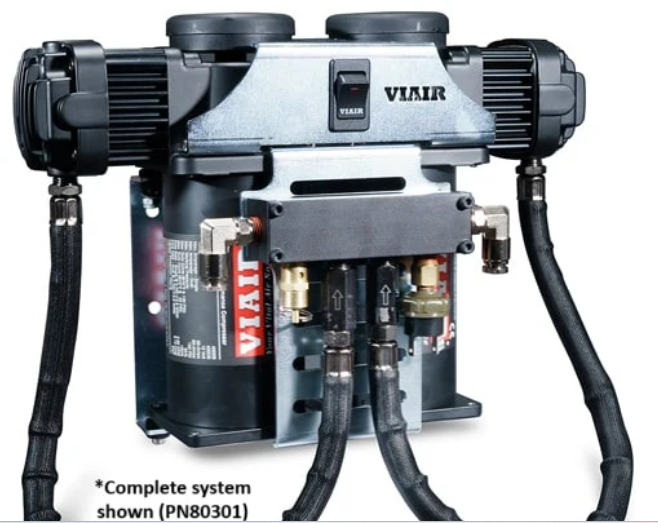

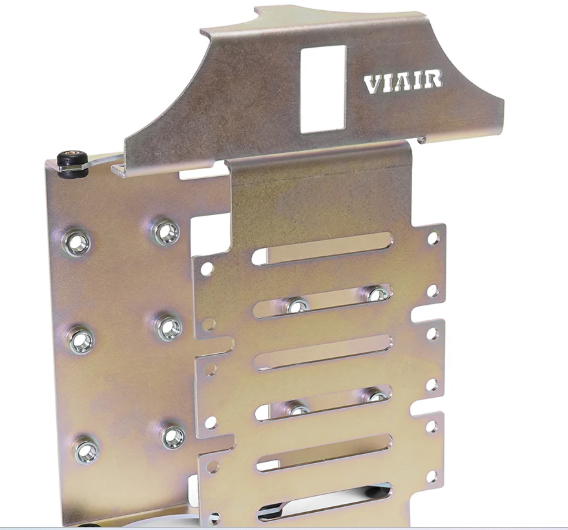

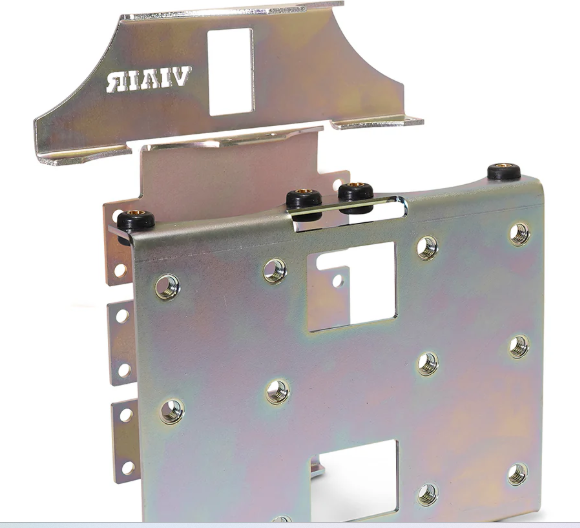

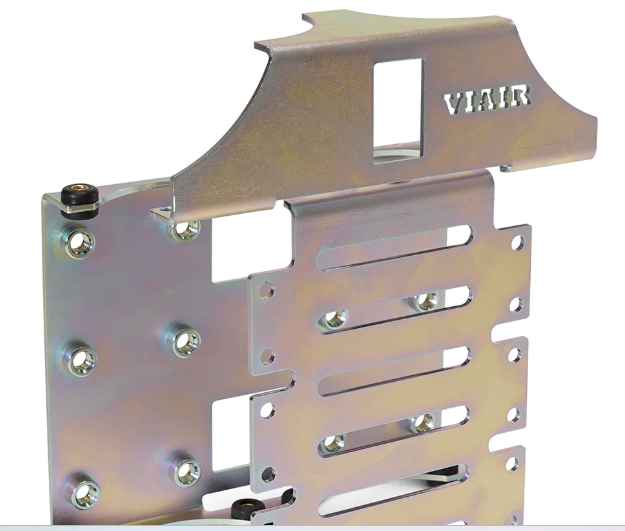

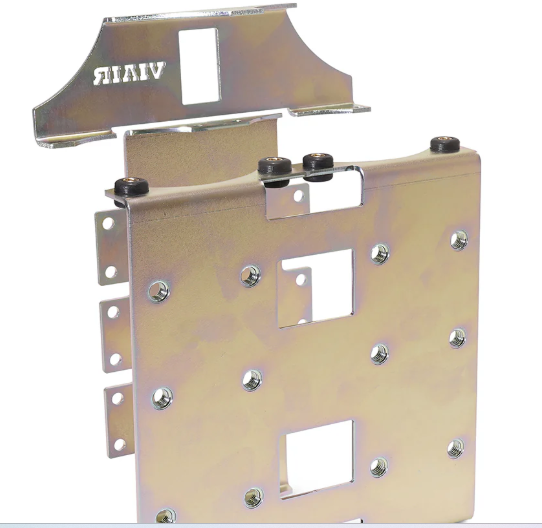

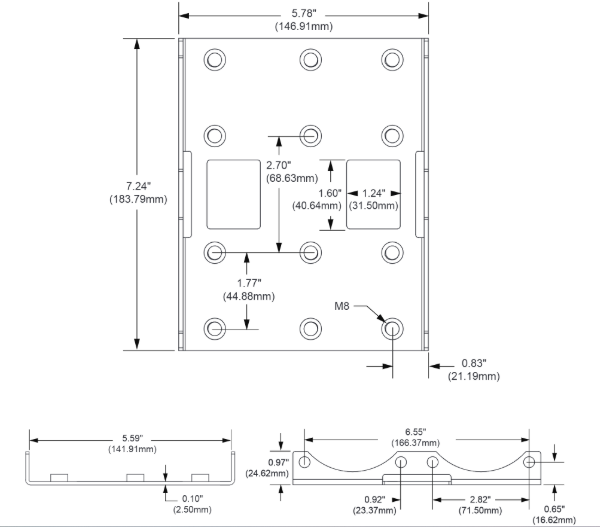

Our VMS Dual Compressor Custom Lock Mount brackets are our latest mounting solution for dual onboard compressor systems. We offer mounting solutions for 380, 425, 400 & 440 and 444 & 485 C-models. The Dual VMS Bracket integrates all system components, creating a modular mounting solution for your vehicle. Brackets include 3 positions for manifold placement and base plate with multiple threaded hole positions for mounting flexibility. Brackets are electroplated for corrosion protection. All necessary compressor mounting hardware is included. *Compressors not included
*Compressors not included.
Specifications
SPECS

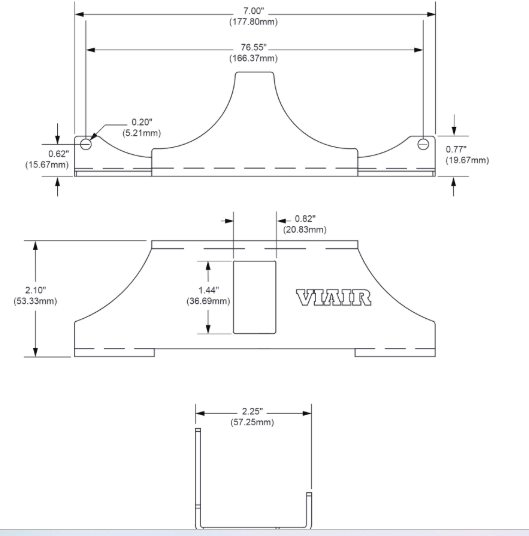

(1) Cradle Bracket
(4) M5 0.8mm x 30mm Stainless Steel Socket Head Cap
(4) M5 0.8mm x 18mm Stainless Steel Socket Head Cap
(4) M5 0.8mm x 14mm Stainless Steel Socket Head Cap
(2) M5 0.8mm x 10mm Stainless Steel Socket Head Cap
(8) M5 Stainless Steel Flat Washer
(4) M5-0.8mm Stainless Steel Nyloc Hex Nut
(8) Rubber Feet Vibration Isolators & Grommets
