The Ultra-Light Duty OBA is ideal for light duty pneumatic tasks such as air horns, air lockers and more. While not intended for tire inflation, this system provides a reliable and cost effective air source package.

What’s in the Box


Compressor





Tank and AirLine





Electrical





Fittings





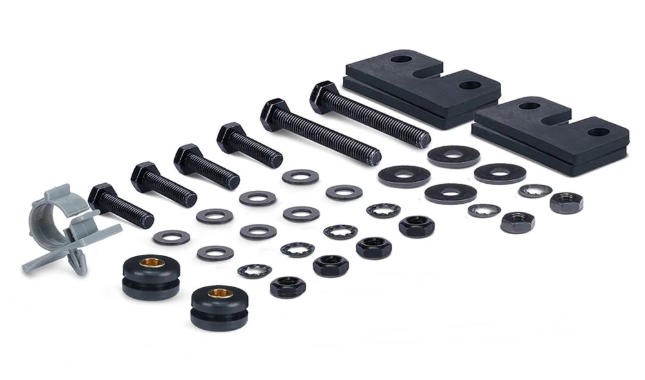

Mounting Kit

Specifications

SPECS:

12-Volt
Permanent Magnetic Motor
Duty Cycle: 10% @ 100 PSI
Max. Working Pressure: 105 PSI
Max. Amp Draw: 13-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

FEATURES:

1.0 Gallon VIAIR Air Tank
98C VIAIR Air Compressor
Omega Bracket with Mounting Hardware
Pressure Switch (85 PSI on, 105 PSI off)
40-Amp Relay
145 PSI Safety Valve
T-Fitting: 1/4” (M) x 1/4″ (F) x 1/8” (F)
T-Fitting: 1/4” (M) x 1/4″ (F) x 1/4” (F)
1/4” Drain Cock
1/4” Compression Fitting
1/4” Plug (M)
(2) 1/4” (M) NPT to 1/8” (F) BSP
20ft. 16 Gauge Wire with Inline Fuse Holder
Accessory Airline
Electrical Connections

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.53 7 0 43.5 7
10 1.00 9 1.0 28.0 9
20 0.95 10 2.0 25.5 11
30 0.90 11 3.0 22.7 11
40 0.83 11 4.0 20.7 12
50 0.77 12 5.0 18.3 12
60 0.72 12 6.0 16.3 12
70 0.65 12 7.0 13.7 12
80 0.60 12 8.0 11.7 12
90 0.54 12 9.0 10.0 11
100 0.48 12



Fill Rates

1.0 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
85 to 105 PSI 30 sec. (± 05 sec.)



Product Resources

User Manual

Wiring Diagram

Plumbing Diagram

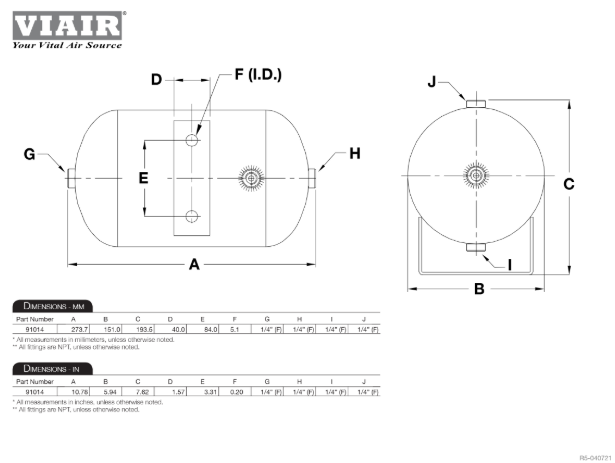

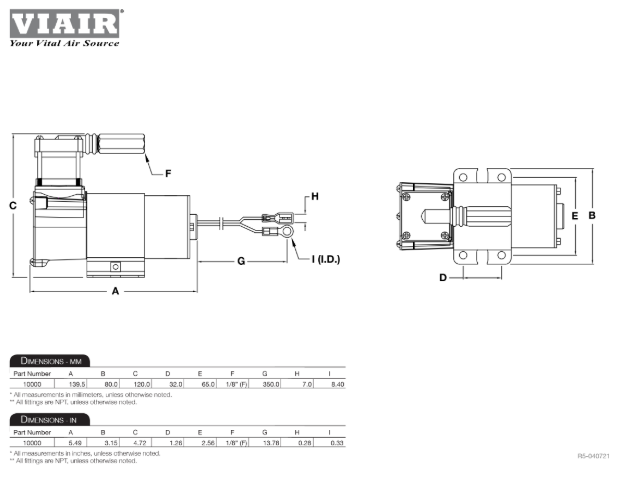

Dimensional Drawing
