VIAIR | TLC® PLUS Portable Compressor (00190)
SELECT OPTIONS
Description

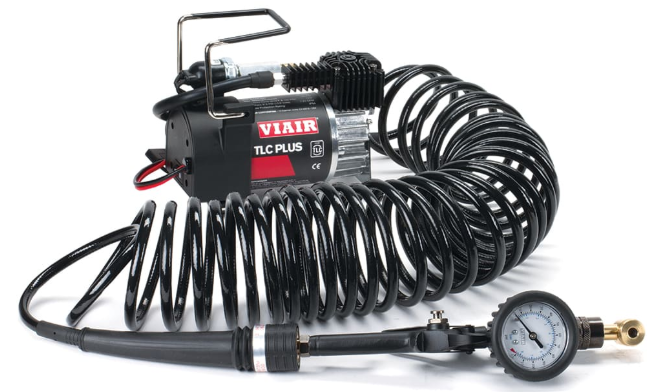

The TLC® PLUS is the perfect combination of performance, versatility and price point. Packing a strong blast of 120PSI, this coffee-mug-sized compressor has the lowest decibel rating in the TLC lineup and can be used as a portable or hard mounted to your vehicle. It's tubeless capable and can inflate truck tires up to 31 inches, making a great choice for those with larger vehicle tires who don't need the size or price tag of a bigger compressor.

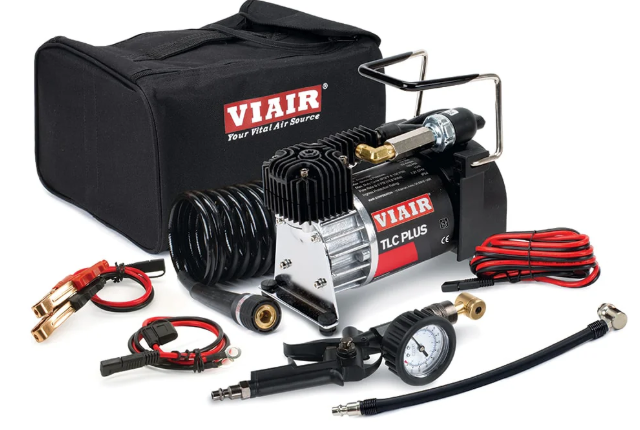

What’s in the Box
Compressor
Coil Hose
Inflation Gun
Presta Head
SEA to Battery Clamps
SAE to Battery Terminal Rings
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 30 min. @ 30 PSI
Max. Working Pressure: 120 PSI
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -4°F

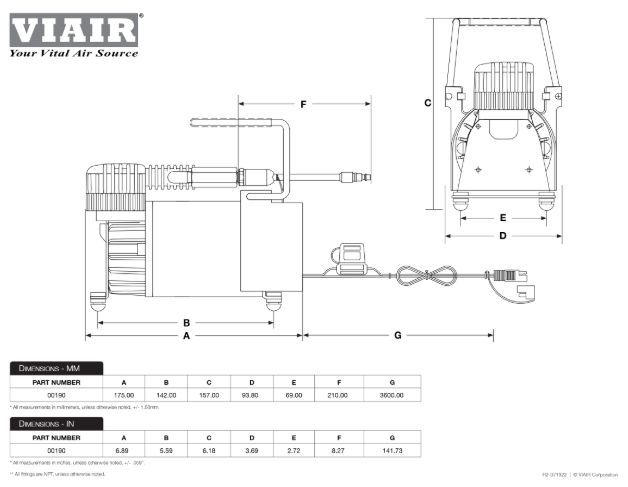

Dimensions: 6.8″L x 3.7″W x 6.5″H
Net Weight: 5.75 lbs.
Power Cord Length: 12 ft.
FEATURES:
Thermal Overload Protector
Shop-Style lnflator with 120 PSI Gauge
Fully Rebuildable Presta Head Attachment
90° Twist-on Schrader Attachment

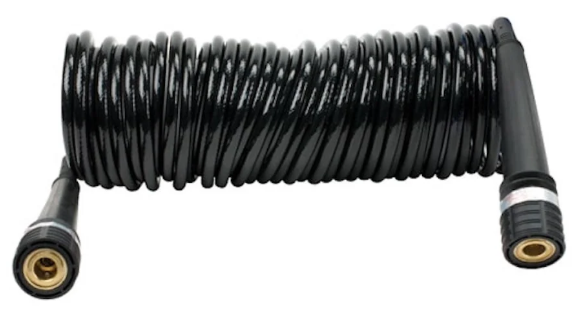

30ft. Inside Braided Coil Hose
2-Pin SAE Connection with Battery Terminal and Clamp Options
Deluxe Carry Bag
PLEASE NOTE:
Always check your vehicle’s power port rating for maximum amperage before ordering. The 90P does not work with Presta bicycle valves, unless used with a Presta Valve Adapter. The 90P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.93 | 10 | 0 | 54.7 | 10 |
| 10 | 1.54 | 11 | 1.0 | 41.7 | 12 |
| 20 | 1.44 | 13 | 2.0 | 38.0 | 15 |
| 30 | 1.35 | 15 | 3.0 | 33.3 | 16 |
| 40 | 1.22 | 16 | 4.0 | 30.3 | 17 |
| 50 | 1.12 | 17 | 5.0 | 27.3 | 18 |
| 60 | 1.06 | 17 | 6.0 | 24.3 | 18 |
| 70 | 0.99 | 18 | 7.0 | 22.3 | 19 |
| 80 | 0.92 | 18 | 8.0 | 18.7 | 18 |
| 90 | 0.82 | 18 | |||
| 100 | 0.79 | 19 | |||
| 110 | 0.73 | 19 | |||
| 120 | 0.50 | 18 |
Fill Rates
TIRE FILL RATE
| 205/65R16 | FILL RATE |
|---|---|
| 27 to 35 PSI | 38 sec. (± 05 sec.) |
| 35 to 44 PSI | 50 sec. (± 05 sec.) |
| 225/60R18 | FILL RATE |
| 27 to 35 PSI | 51 sec. (± 05 sec.) |
| 35 to 44 PSI | 1 min. 07 sec. (± 05 sec.) |
| 31″X10.5″ | FILL RATE |
| 0 to 40 PSI | 6 min. 31 sec. (± 15 sec.) |
| 10 to 40 PSI | 5 min. 14 sec. (± 10 sec.) |
ROAD BIKE TIRE FILL RATE - * For 12V Only
| 25MM | FILL RATE |
|---|---|
| 0 to 70 PSI | 10 sec. |
| 0 to 100 PSI | 18 sec. |
| 28MM | FILL RATE |
| 0 to 70 PSI | 13 sec. |
| 0 to 100 PSI | 21 sec. |
| 30MM | FILL RATE |
| 0 to 70 PSI | 16 sec. |
| 0 to 100 PSI | 25 sec. |
| 32MM | FILL RATE |
| 0 to 70 PSI | 18 sec. |
| 0 to 100 PSI | N/A |
GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only
| 35MM | FILL RATE |
|---|---|
| 0 to 30 PSI | 6 sec. |
| 0 to 50 PSI | 13 sec. |
| 38MM | FILL RATE |
| 0 to 30 PSI | 7 sec. |
| 0 to 50 PSI | 15 sec. |
| 42MM | FILL RATE |
| 0 to 30 PSI | 8 sec. |
| 0 to 50 PSI | 17 sec. |
| 45MM | FILL RATE |
| 0 to 30 PSI | 9 sec. |
| 0 to 50 PSI | 19 sec. |
MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only
| 2.0" | FILL RATE |
|---|---|
| 0 to 20 PSI | 11 sec. |
| 0 to 40 PSI | 22 sec. |
| 2.3" | FILL RATE |
| 0 to 20 PSI | 14 sec. |
| 0 to 40 PSI | 26 sec. |
| 2.6" | FILL RATE |
| 0 to 20 PSI | 16 sec. |
| 0 to 40 PSI | 30 sec. |
| 3.0" | FILL RATE |
| 0 to 20 PSI | 18 sec. |
| 0 to 40 PSI | 35 sec. |
