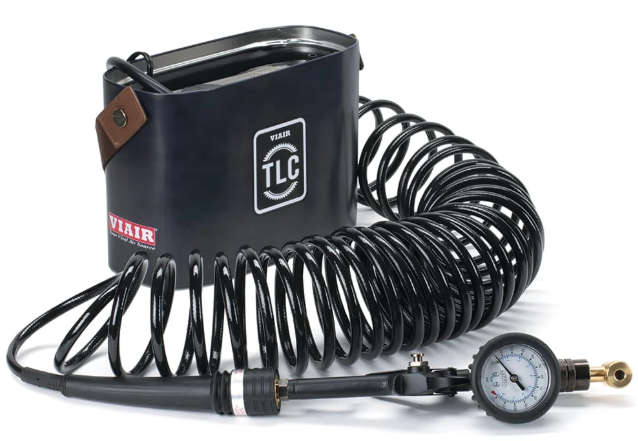

VIAIR | TLC® LITE Portable Compressor (00071)
SELECT OPTIONS
Description
The TLC LITE is the indispensable piece of gear for your vehicle and bike. It is the only aux-powered air compressor capable of seating tubeless bicycle tires and reaching pressures up to 105PSI. It's compact enough to be neatly stored and can be easily transferred to different vehicles, making it a versatile tool for the adventurer cyclists.
* The TLC LITE may have some trouble seating tires smaller than 30c such as Ultradynamico and Panaracer - some tire/rim combos are more stubborn than others. If you aren't sure the LITE will work for you, contact us before buying!
What’s in the Box
Compressor
Coil Hose

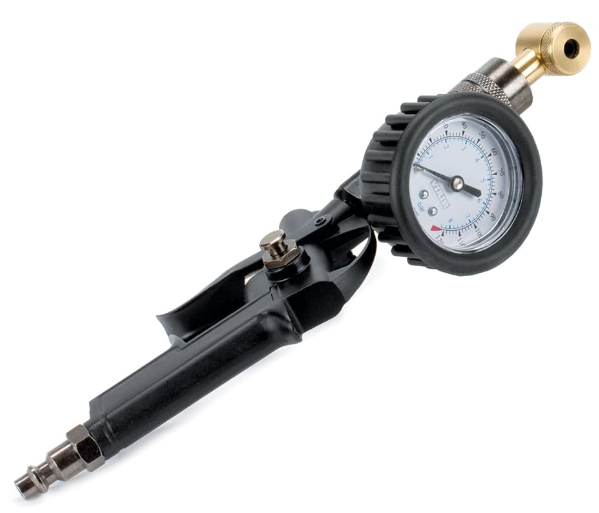

Inflation Gun
Presta Head
Chuck Hose
Specifications
SPECS:
Shop-Style Inflator with 120 PSI Gauge
Fully Rebuildable Presta Head Attachment
90° Twist-on Schrader Attachment
30ft. Inside Braided Coil Hose
Deluxe Carry Bag
Accessory Power Plug
Durable Leather Tipped Handle
FEATURES:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 10% @ 100 PSI
Max. Working Pressure: 105 PSI
Max. Amp/Watt Draw: 13A/156W
Ingress Protection Rating: IP54
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 9.64″L x 4.33″W x 9.68″H
Net Weight: 4.44 lbs.
Power Cord Length: 10 ft
Air Hose Length: 30 ft.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.57 | 6 | 0 | 44.3 | 6 |
| 10 | 1.15 | 8 | 1.0 | 30.0 | 9 |
| 20 | 1.01 | 9 | 2.0 | 26.0 | 10 |
| 30 | 0.92 | 10 | 3.0 | 22.7 | 11 |
| 40 | 0.84 | 11 | 4.0 | 20.7 | 12 |
| 50 | 0.73 | 11 | 5.0 | 19.0 | 11 |
| 60 | 0.66 | 11 | 6.0 | 14.3 | 12 |
| 70 | 0.58 | 12 | 7.0 | 11.7 | 12 |
| 80 | 0.53 | 12 | |||
| 90 | 0.48 | 11 | |||
| 100 | 0.41 | 11 |
Fill Rates
TIRE FILL RATE
| 205/65R16 | FILL RATE |
|---|---|
| 27 to 35 PSI | 53 sec. (± 05 sec.) |
| 35 to 44 PSI | 1 min. 15 sec. (± 05 sec.) |
| 225/60R18 | FILL RATE |
| 27 to 35 PSI | 55 sec. (± 05 sec.) |
| 35 to 44 PSI | 1 min. 21 sec. (± 05 sec.) |
ROAD BIKE TIRE FILL RATE - * For 12V Only
| 25MM | FILL RATE |
|---|---|
| 0 to 70 PSI | 20 sec. |
| 0 to 100 PSI | 34 sec. |
| 28MM | FILL RATE |
| 0 to 70 PSI | 24 sec. |
| 0 to 100 PSI | 39 sec. |
| 30MM | FILL RATE |
| 0 to 70 PSI | 27 sec. |
| 0 to 100 PSI | 45 sec. |
| 32MM | FILL RATE |
| 0 to 70 PSI | 31 sec. |
| 0 to 100 PSI | N/A |
GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only
| 35MM | FILL RATE |
|---|---|
| 0 to 30 PSI | 12 sec. |
| 0 to 50 PSI | 24 sec. |
| 38MM | FILL RATE |
| 0 to 30 PSI | 14 sec. |
| 0 to 50 PSI | 27 sec. |
| 42MM | FILL RATE |
| 0 to 30 PSI | 16 sec. |
| 0 to 50 PSI | 30 sec. |
| 45MM | FILL RATE |
| 0 to 30 PSI | 18 sec. |
| 0 to 50 PSI | 33 sec. |
MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only
| 2.0" | FILL RATE |
|---|---|
| 0 to 20 PSI | 13 sec. |
| 0 to 40 PSI | 33 sec. |
| 2.3" | FILL RATE |
| 0 to 20 PSI | 16 sec. |
| 0 to 40 PSI | 43 sec. |
| 2.6" | FILL RATE |
| 0 to 20 PSI | 20 sec. |
| 0 to 40 PSI | 53 sec. |
| 3.0" | FILL RATE |
| 0 to 20 PSI | 25 sec. |
| 0 to 40 PSI | 1 min. 3 sec. |
