VIAIR | TLC® BOOST 120 PSI Air Source Kit (30031)
SELECT OPTIONS
Description

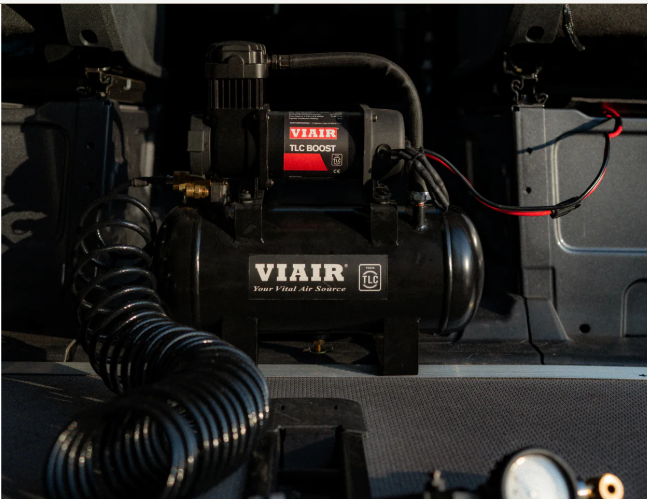

The mobile mechanic's favorite. Meant to be hard-mounted to your vehicle, the TLC®BOOST offers shop-air performance in a quiet, small and powerful package. It has VIAIR's™ 300C motor on top of a 1.5 Gallon tank, filling up to 120PSI to satisfy your pneumatic needs as quickly as possible. Blowing tasks, recreational inflatables, air tools, RV and bus tires, high volume tubeless setups, The BOOST can do it all.
What’s in the Box
Compressor and Tank
Coil Hose
Inflation Gun
Blow Gun
Presta Head
Inflation Tips Kit
Chuck Hose
SAE to Battery Terminal Rings
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 25% @ 100 PSI
Max. Working Pressure: 120 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -4°F

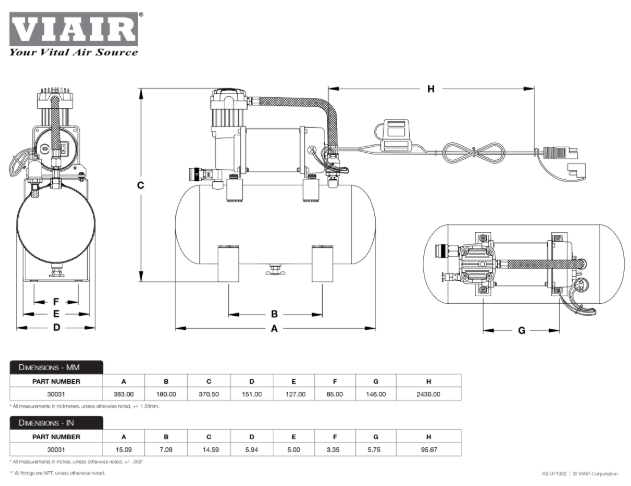

Dimensions: 15″L x 5.9″W x 14.79″H
Net Weight: 17.60 lbs.
FEATURES:
Shop-Style Inflator with 120 PSI Gauge

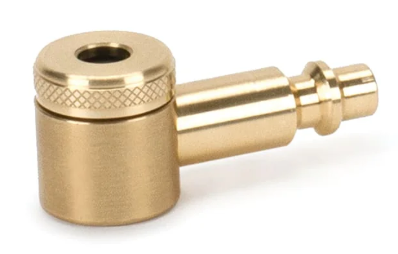

Fully Rebuildable Presta Head Attachment
90° Twist-on Schrader Attachment
30ft. Inside Braided Coil Hose

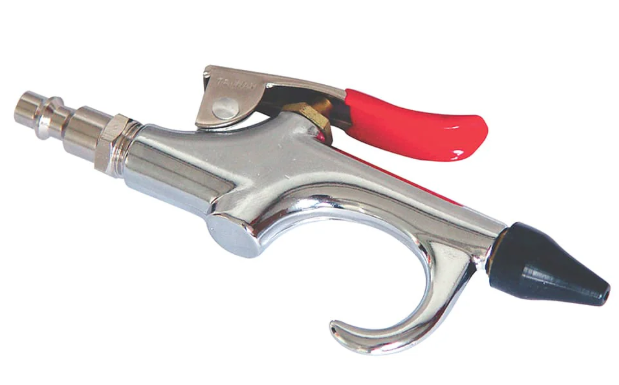

Blow Gun
1.5-Gallon Air Tank
2-Pin SAE Connector Attachment with Terminal Rings
40-Amp Inline Fuse Holder
Mounting Hardware
Deluxe Carry Bag
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.372.06 | 15 | 0 | 67.0 | 15 |
| 10 | 1.88 | 18 | 1.0 | 55.3 | 19 |
| 20 | 1.78 | 20 | 2.0 | 51.0 | 22 |
| 30 | 1.66 | 22 | 3.0 | 45.0 | 24 |
| 40 | 1.53 | 23 | 4.0 | 40.7 | 25 |
| 50 | 1.44 | 24 | 5.0 | 38.0 | 26 |
| 60 | 1.35 | 25 | 6.0 | 35.3 | 27 |
| 70 | 1.28 | 26 | 7.0 | 33.0 | 27 |
| 80 | 1.22 | 26 | 8.0 | 30.7 | 27 |
| 90 | 1.17 | 27 | |||
| 100 | 1.12 | 27 | |||
| 110 | 1.06 | 27 | |||
| 120 | 27 |
Fill Rates
TIRE FILL RATE
| 31″X10.5″ - R15 | FILL RATE |
|---|---|
| 0 to 30 PSI | 1 min. 57 sec. (±10 Sec.) |
| 15 to 30 PSI | 1 min. 17 sec. (± 05 Sec.) |
| 33″X12.5″ - R20 | FILL RATE |
| 0 to 30 PSI | 3 min. 37 sec. (±10 Sec.) |
| 15 to 30 PSI | 2 min. 19 sec. (± 05 Sec.) |
| 35"x12.5" - R20.5 | FILL RATE |
| 50 to 60 PSI | 55 sec. (±03 Sec.) |
| 60 to 80 PSI | 1 min. 41 sec. (± 05 Sec.) |
| 80 to 90 PSI | 44 sec. (±03 Sec.) |
| 90 to 110 PSI | 1 min. 38 sec. (± 05 Sec.) |
TANK FILL RATE
| 1.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 120 PSI | 1 min. 12 sec. (±05 Sec.) |
| 90 to 120 PSI | 19 sec. (± 05 Sec.) |
ROAD BIKE TIRE FILL RATE - * For 12V Only
| 25MM | FILL RATE |
|---|---|
| 0 to 70 PSI | <3 sec. |
| 0 to 100 PSI | 5 sec. |
| 28MM | FILL RATE |
| 0 to 70 PSI | 4 sec. |
| 0 to 100 PSI | 6 sec. |
| 30MM | FILL RATE |
| 0 to 70 PSI | 5 sec. |
| 0 to 100 PSI | 7 sec. |
| 32MM | FILL RATE |
| 0 to 70 PSI | 7 sec. |
| 0 to 100 PSI | N/A |
GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only
| 35MM | FILL RATE |
|---|---|
| 0 to 30 PSI | <3 sec. |
| 0 to 50 PSI | 5 sec. |
| 38MM | FILL RATE |
| 0 to 30 PSI | 4 sec. |
| 0 to 50 PSI | 5 sec. |
| 42MM | FILL RATE |
| 0 to 30 PSI | 4 sec. |
| 0 to 50 PSI | 6 sec. |
| 45MM | FILL RATE |
| 0 to 30 PSI | 4 sec. |
| 0 to 50 PSI | 6 sec. |

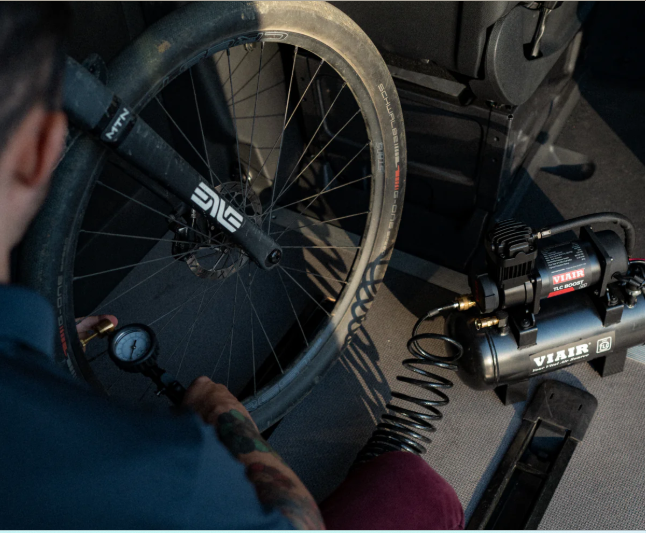

MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only
| 2.0" | FILL RATE |
|---|---|
| 0 to 20 PSI | 5 sec. |
| 0 to 40 PSI | 8 sec. |
| 2.3" | FILL RATE |
| 0 to 20 PSI | 5 sec. |
| 0 to 40 PSI | 10 sec. |
| 2.6" | FILL RATE |
| 0 to 20 PSI | 6 sec. |
| 0 to 40 PSI | 12 sec. |
| 3.0" | FILL RATE |
| 0 to 20 PSI | 6 sec. |
| 0 to 40 PSI | 15 sec. |
