VIAIR | Tank Port Fitting Kits

Description

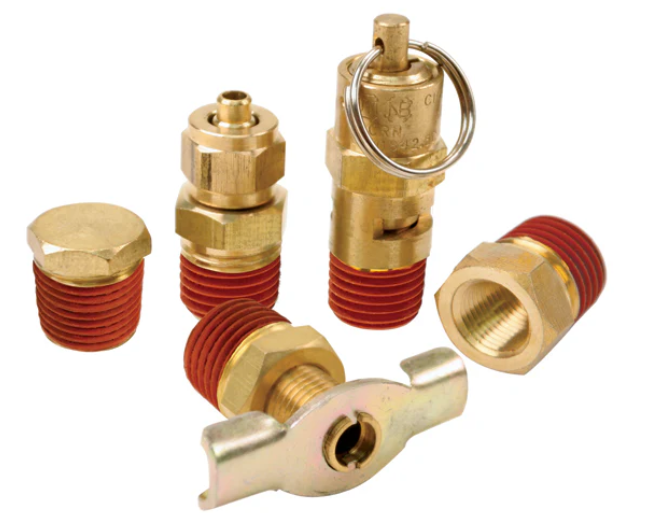

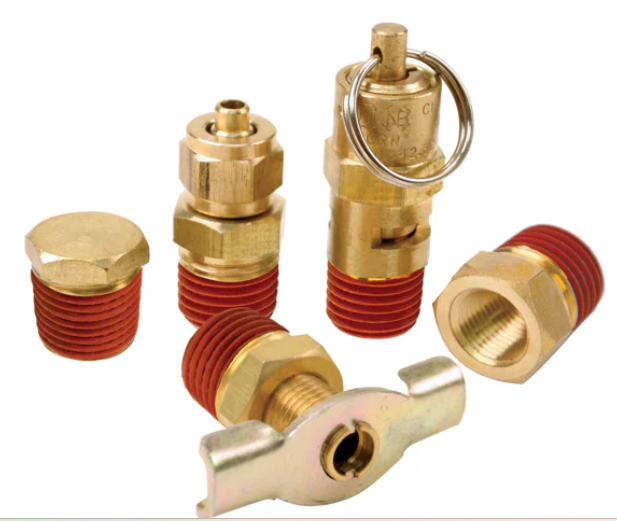

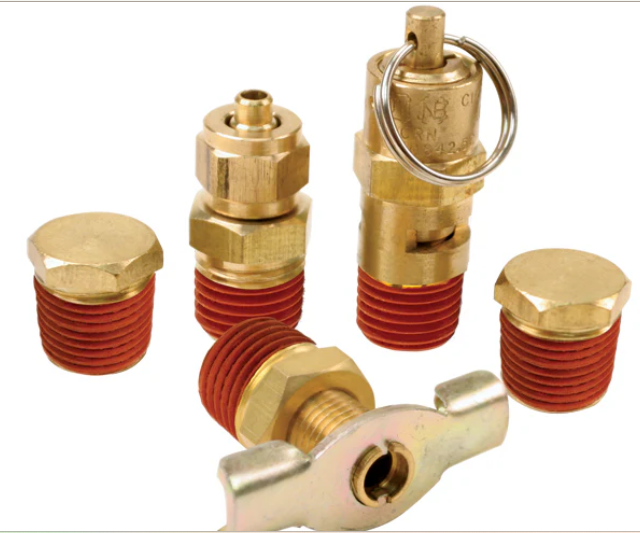

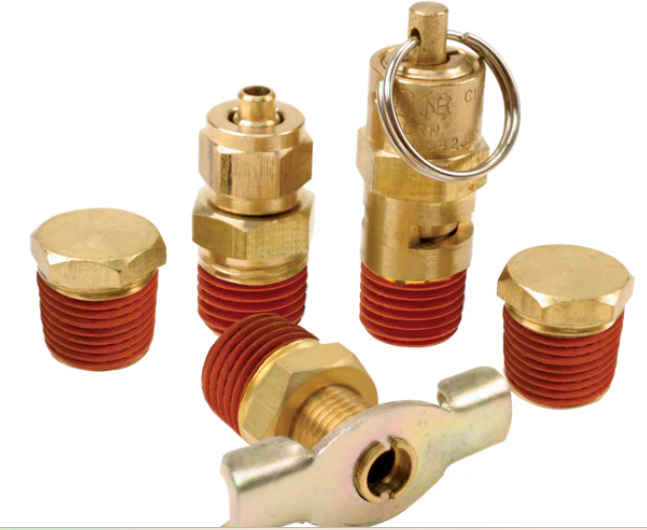

We've taken the thinking out of it for you. Our all-in-one Tank Port Fitting kits are put together to address both 150PSI and 200PSI Rated tanks. Each 5pc kit comes equipped with combination of two 1/4" NPT plugs or one 1/4" NPT plug and one 1/4" (M) NPT to 1/8" (F) BSP adapter, one drain Cock, one compression fitting and a safety valve. Each fitting is made of high-quality brass for high durability, corrosion resistance, and high-temp resistance making them excellent for pneumatic systems. Fittings are all pre-treated with thread sealant. We offer four different kits to cover most applications Notes Recommended Torque 16-18 ft. lbs. P# 90002 & 90006 Check with air locker manufacturer for proper air pressure to air lockers

Specifications

90002 Kit

(One) 1/4" (M) NPT to 1/8" (F) BSP Adapter
(One) 1/4" NPT Drain Cock
(One) 1/4" 250 PSI Safety Valve
(One) 1/4" NPT Compression Fitting
(One) 1/4" NPT Plug

90004 Kit

(Two) 1/4" (M) NPT Plugs
(One) 1/4" NPT Drain Cock
(One) 1/4" 250 PSI Safety Valve
(One) 1/4" NPT Compression Fitting

90005 Kit

(Two) 1/4" (M) NPT Plugs
(One) 1/4" NPT Drain Cock
(One) 1/4" 175 PSI Safety Valve
(One) 1/4" NPT Compression Fitting

90006 Kit

(One) 1/4" (M) NPT to 1/8" (F) BSP Adapter
(One) 1/4" NPT Drain Cock
(One) 1/4" 175 PSI Safety Valve
(One) 1/4" NPT Compression Fitting
(One) 1/4" NPT Plug
