Description

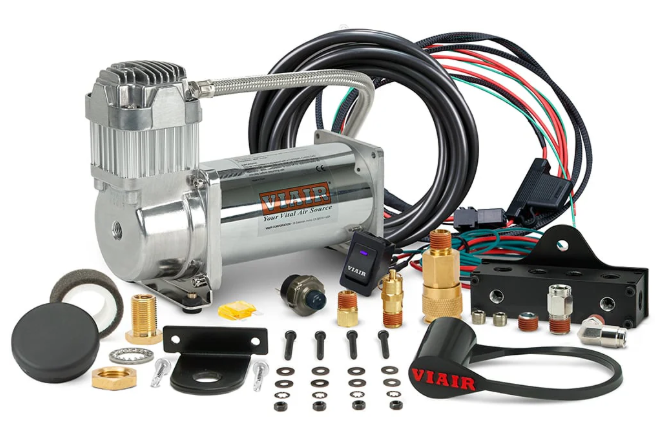

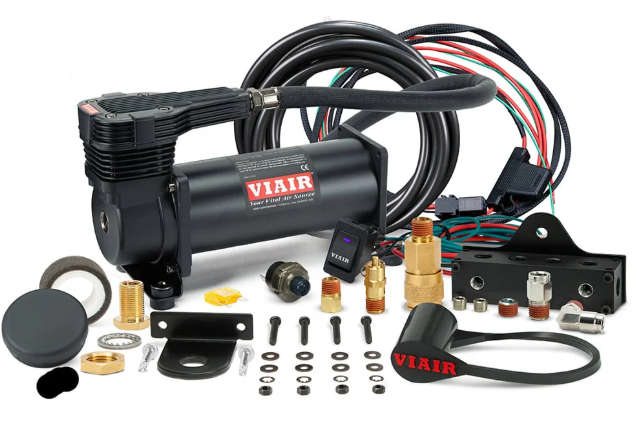

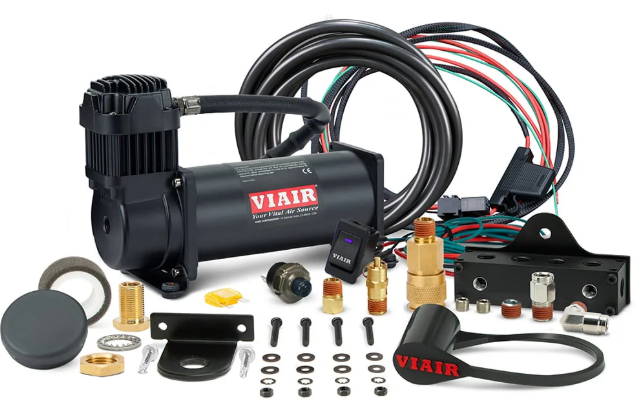

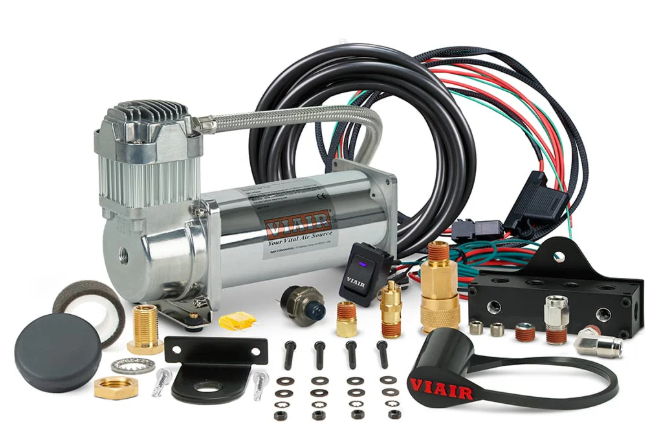

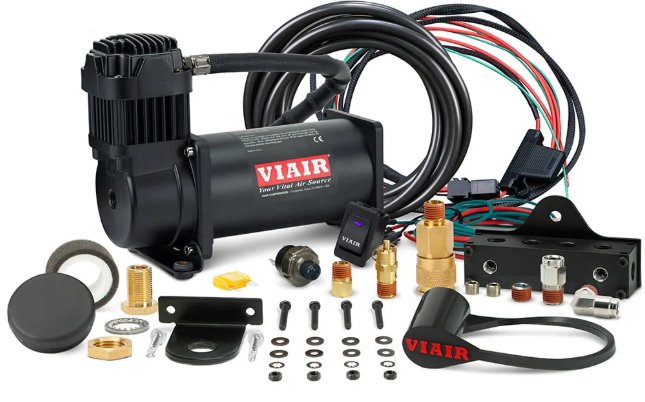

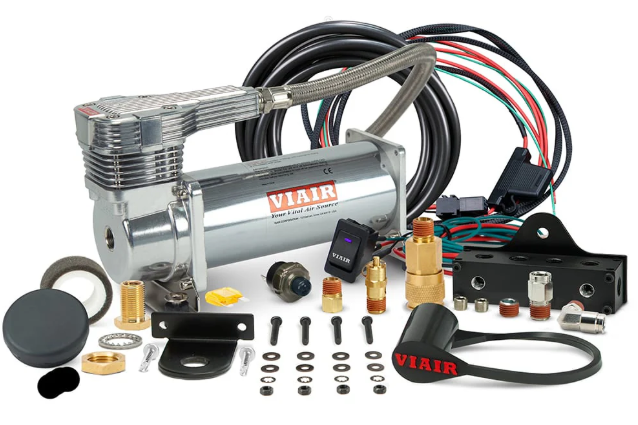

VIAIR Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM flow and fast tire fill with unsurpassed durability. These kits come with a single compressor, wiring harness, a high-quality remote air chuck kit, and all necessary hardware and components to install a fully functioning system. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags, and inflatables of all kinds. Kits are also available in a dual configuration.
400C (150 PSI): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.
444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.
485C (200 PSI): One of our finest 12 volt compressors available. Well-suited for tire pressure management, air suspension, air horns, and other general compressed air needs. One of the only compressors that has 100% Duty Cycle @ 200PSI.
Specifications
400C SPECS
CFM: 2.62 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Duty Cycle: 100% @ 40 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions:9″L x 4″W x 6.75″H
Net Weight: 8.65 lbs.
444C SPECS
CFM: 2.12 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Duty Cycle: 50% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

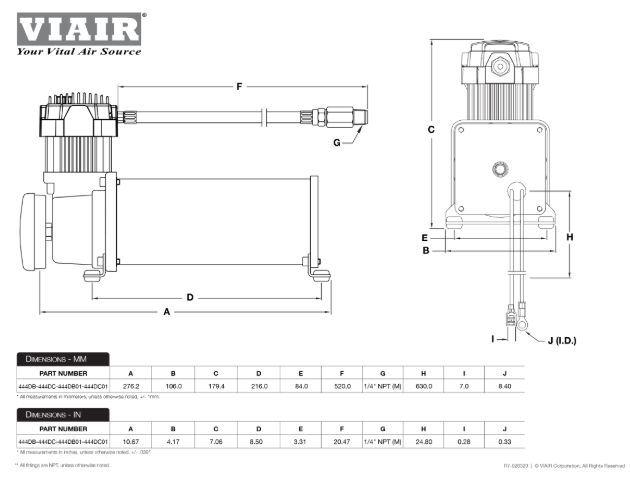

Dimensions:10.87″L x 4.2″W x 7.06″H
Net Weight: 10.80 lbs.
485C SPECS
CFM: 2.24 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Compressor Dimensions:10.63″L x 4.1″W x 6.44″H
Compressor’s Net Weight: 11.10 lbs.
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
400C
12-VOLT COMPRESSOR - Supply Voltage 13.8 VoltsPSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 2.62 | 16 | 0 | 74 | 16 |
10 | 2.39 | 18 | 1.0 | 65 | 20 |
20 | 2.21 | 20 | 2.0 | 60 | 23 |
30 | 2.11 | 22 | 3.0 | 56 | 25 |
40 | 2.01 | 24 | 4.0 | 53 | 27 |
50 | 1.93 | 25 | 5.0 | 49 | 28 |
60 | 1.84 | 26 | 6.0 | 46 | 28 |
70 | 1.73 | 27 | 7.0 | 42 | 28 |
80 | 1.65 | 27 | 8.0 | 28 | 28 |
90 | 1.52 | 27 | 9.0 | 35 | 27 |
100 | 1.45 | 27 | 10.0 | 31 | 27 |
110 | 1.35 | 27 | |||
120 | 1.26 | 27 | |||
130 | 1.19 | 27 | |||
140 | 1.08 | 27 | |||
150 | 1.01 | 26 |
444C
12-VOLT COMPRESSOR - Supply Voltage 13.8 VoltsPSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 2.12 | 16 | 0.0 | 60 | 10 |
10 | 1.72 | 12 | 1.0 | 47 | 13 |
20 | 1.61 | 14 | 2.0 | 43 | 15 |
30 | 1.53 | 15 | 3.0 | 41 | 16 |
40 | 1.48 | 16 | 4.0 | 55 | 17 |
50 | 1.41 | 17 | 5.0 | 36 | 18 |
60 | 1.33 | 17 | 6.0 | 33 | 19 |
70 | 1.28 | 18 | 7.0 | 27 | 19 |
80 | 1.20 | 18 | 8.0 | 28 | 19 |
90 | 1.13 | 19 | 9.0 | 25 | 19 |
100 | 1.01 | 19 | 10.0 | 23 | 19 |
110 | 0.95 | 19 | 11.0 | 20 | 18 |
120 | 0.94 | 19 | 12.0 | 17 | 17 |
130 | 0.88 | 19 | 13.0 | 15 | 16 |
140 | 0.82 | 19 | 14.0 | 12 | 15 |
150 | 0.77 | 18 | |||
160 | 0.72 | 18 | |||
170 | 0.65 | 18 | |||
180 | 0.57 | 17 | |||
190 | 0.49 | 16 | |||
200 | 0.45 | 16 |
485C
12-VOLT COMPRESSOR - Supply Voltage 13.8 VoltsPSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 2.24 | 12 | 0.0 | 70 | 12 |
10 | 1.84 | 14 | 1.0 | 47 | 16 |
20 | 1.75 | 16 | 2.0 | 47 | 16 |
30 | 1.67 | 17 | 3.0 | 44 | 18 |
40 | 1.61 | 18 | 4.0 | 41 | 20 |
50 | 1.54 | 19 | 5.0 | 38 | 21 |
60 | 1.47 | 20 | 6.0 | 35 | 21 |
70 | 1.42 | 21 | 7.0 | 32 | 22 |
80 | 1.36 | 21 | 8.0 | 29 | 22 |
90 | 1.30 | 22 | 9.0 | 27 | 22 |
100 | 1.23 | 22 | 10.0 | 25 | 23 |
110 | 1.17 | 22 | 11.0 | 22 | 22 |
120 | 1.11 | 22 | 12.0 | 21 | 21 |
130 | 1.06 | 22 | 13.0 | 21 | 21 |
140 | 1.01 | 23 | 14.0 | 21 | 21 |
150 | 0.97 | 22 | |||
160 | 0.92 | 22 | |||
170 | 0.88 | 22 | |||
180 | 0.84 | 21 | |||
190 | 0.77 | 21 | |||
200 | 0.73 | 21 |
Fill Rates
400C
TIRE FILL RATE35″ x 12.5″ | FILL RATE |
---|---|
0 to 40 PSI | 7 min. 09 sec. (± 15 sec.) |
10 to 40 PSI | 5 min. 29 sec. (± 10 sec.) |
37″ x 12.5″ | FILL RATE |
0 to 40 PSI | 8 min. 15 sec. (± 15 sec.) |
10 to 40 PSI | 6 min. 19 sec. (± 15 sec.) |
400C
TANK FILL RATE2.5 GALLON TANK | FILL RATE |
---|---|
0 to 145 PSI | 2 min. 27 sec. (± 05 sec.) |
110 to 145 PSI | 55 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
110 to 145 PSI | 1 min. 40 sec (± 05 sec.) |
444C
TIRE FILL RATE35″ x 12.5″ | FILL RATE |
---|---|
0 to 40 PSI | 8 min. 37 sec. (± 15 sec.) |
10 to 40 PSI | 6 min. 31 sec. (± 15 sec.) |
37″ x 12.5″ | FILL RATE |
0 to 40 PSI | 9 min. 43 sec. (± 15 sec.) |
10 to 40 PSI | 7 min. 29 sec. (± 15 sec.) |
444C
TANK FILL RATE2.5 GALLON TANK | FILL RATE |
---|---|
0 to 200 PSI | 5 min. 02 sec. (± 10 sec.) |
165 to 200 PSI | 1 min. 30 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 200 PSI | 10 min. 52 sec. (± 15 sec.) |
165 to 200 PSI | 3 min. 10 sec (± 10 sec.) |
485C
TIRE FILL RATE35″ x 12.5″ | FILL RATE |
---|---|
0 to 40 PSI | 8 min. 21 sec. (± 15 sec.) |
10 to 40 PSI | 6 min. 27 sec. (± 15 sec.) |
37″ x 12.5″ | FILL RATE |
0 to 40 PSI | 9 min. 36 sec. (± 15 sec.) |
10 to 40 PSI | 7 min. 22 sec. (± 15 sec.) |
485C
TANK FILL RATE2.5 GALLON TANK | FILL RATE |
---|---|
0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 200 PSI | 9 min. 45 sec. (± 15 sec.) |
165 to 200 PSI | 2 min. 25 sec (± 10 sec.) |
