VIAIR | Single VMS Compressor

$219.50

Model:

Color::

Variant

Quantity:

Description

The Single VMS Compressor offers flexibility to build an onboard air system however you'd like. Sold individually without any accessories, this compressor is the ideal choice for those looking for an upgrade or needing the finishing piece for a new build.

Available in three configurations:

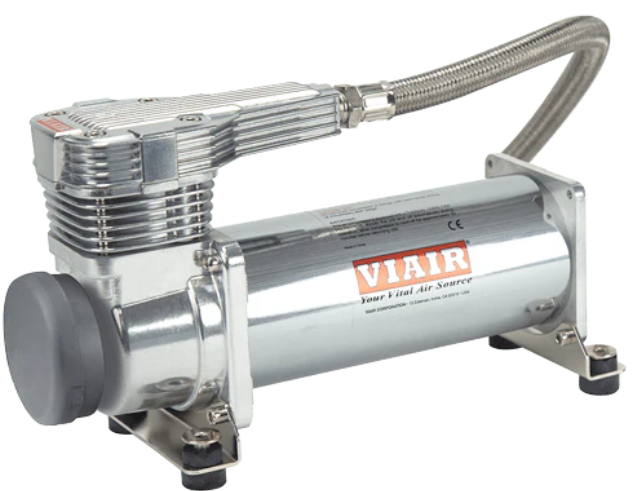

400C (150 PSI): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

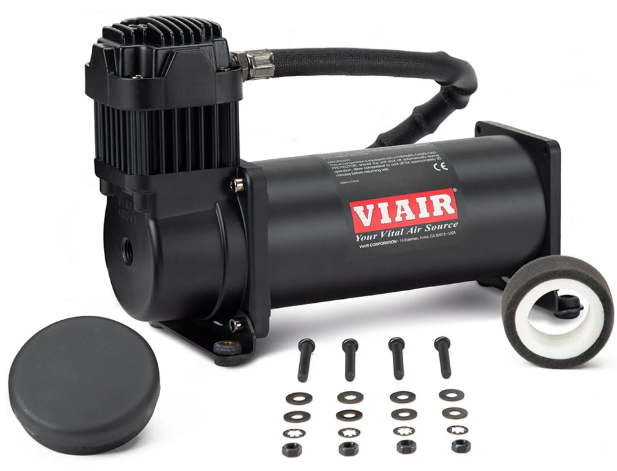

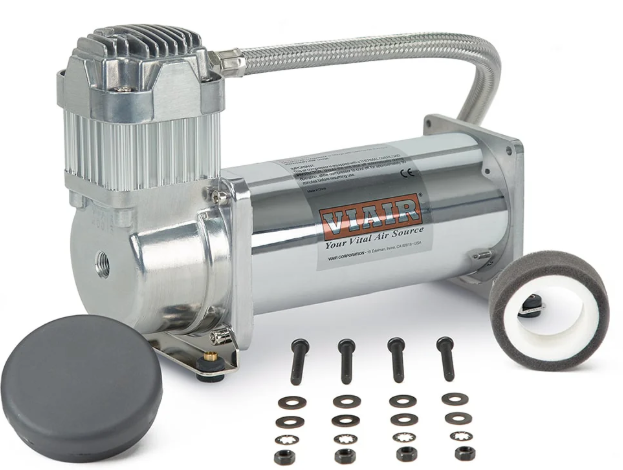

444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

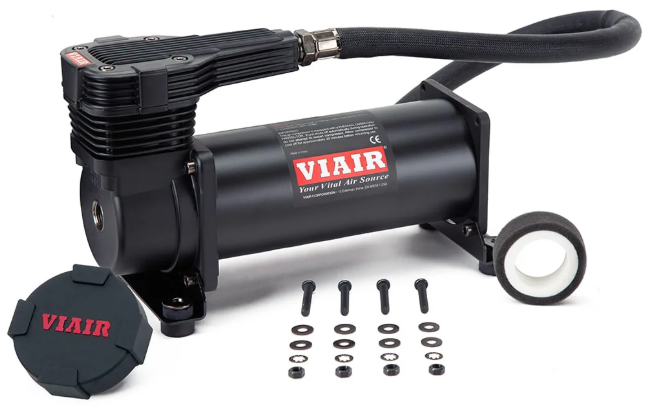

485C (200 PSI): One of our finest 12 volt compressors available. Well-suited for tire pressure management, air suspension, air horns, and other general compressed air needs. One of the only compressors that has 100% Duty Cycle @ 200PSI.

What’s in the Box

Compressor

Air Filter and Mounting Hardware

Specifications

400C SPECS
CFM: 2.62 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Duty Cycle: 100% @ 40 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions:9″L x 4″W x 6.75″H
Net Weight: 8.65 lbs.
400C FEATURES
(1) 400C (Stealth Black or Chrome) Compressor
w/ Thermal Overload Protector
(1) Stainless Steel Braided Leader Hose
w/ Inline Check Valve
(1) Air Filter Assembly
(1) Spare Air Filter Element
(1) Set of Nuts, Bolts, Washers and
Lock Washers

444C SPECS
CFM: 2.12 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Duty Cycle: 50% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions:10.87″L x 4.2″W x 7.06″H
Net Weight: 10.80 lbs.
444C FEATURES
(1) 444C (Stealth Black or Chrome) Compressor
w/ Thermal Overload Protector
(1) Stainless Steel Braided Leader Hose
w/ Inline Check Valve
(1) Air Filter Assembly
(1) Spare Air Filter Element
(1) Set of Nuts, Bolts, Washers and
Lock Washers

485C SPECS
CFM: 2.50 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Compressor Dimensions:10.63″L x 4.1″W x 6.44″H
Compressor’s Net Weight: 11.10 lbs.
485C FEATURES
1) 485C (Stealth Black or Platinum) Compressor
w/ Thermal Overload Protector
(1) Stainless Steel Braided Leader Hose
w/ Inline Check Valve
(1) Air Filter Assembly
(1) Spare Air Filter Element
(1) Set of Nuts, Bolts, Washers and
Lock Washers

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. 444SB/SC

Performance

400C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	2.62	16	0	74	16
10	2.39	18	1.0	65	20
20	2.21	20	2.0	60	23
30	2.11	22	3.0	56	25
40	2.01	24	4.0	53	27
50	1.93	25	5.0	49	28
60	1.84	26	6.0	46	28
70	1.73	27	7.0	42	28
80	1.65	27	8.0	28	28
90	1.52	27	9.0	35	27
100	1.45	27	10.0	31	27
110	1.35	27
120	1.26	27
130	1.19	27
140	1.08	27
150	1.01	26

444C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	2.12	16	0.0	60	10
10	1.72	12	1.0	47	13
20	1.61	14	2.0	43	15
30	1.53	15	3.0	41	16
40	1.48	16	4.0	55	17
50	1.41	17	5.0	36	18
60	1.33	17	6.0	33	19
70	1.28	18	7.0	27	19
80	1.20	18	8.0	28	19
90	1.13	19	9.0	25	19
100	1.01	19	10.0	23	19
110	0.95	19	11.0	20	18
120	0.94	19	12.0	17	17
130	0.88	19	13.0	15	16
140	0.82	19	14.0	12	15
150	0.77	18
160	0.72	18
170	0.65	18
180	0.57	17
190	0.49	16
200	0.45	16

485C

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	2.24	12	0.0	70	12
10	1.84	14	1.0	47	16
20	1.75	16	2.0	47	16
30	1.6A7	17	3.0	44	18
40	1.61	18	4.0	41	20
50	1.54	19	5.0	38	21
60	1.47	20	6.0	35	21
70	1.42	21	7.0	32	22
80	1.36	21	8.0	29	22
90	1.30	22	9.0	27	22
100	1.23	22	10.0	25	23
110	1.17	22	11.0	22	22
120	1.11	22	12.0	21	21
130	1.06	22	13.0	18	20
140	1.01	23	14.0	17	19
150	0.97	22
160	0.92	22
170	0.88	22
180	0.84	21
190	0.77	21
200	0.73	21

Fill Rates

400C

TIRE FILL RATE

35″ x 12.5″	FILL RATE
0 to 40 PSI	7 min. 09 sec. (± 15 sec.)
10 to 40 PSI	5 min. 29 sec. (± 10 sec.)
37″ x 12.5″	FILL RATE
0 to 40 PSI	8 min. 15 sec. (± 15 sec.)
10 to 40 PSI	6 min. 19 sec. (± 15 sec.)

400C

TANK FILL RATE

2.5 GALLON TANK	FILL RATE
0 to 145 PSI	2 min. 27 sec. (± 05 sec.)
110 to 145 PSI	55 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 145 PSI	4 min. 50 sec. (± 10 sec.)
110 to 145 PSI	1 min. 40 sec (± 05 sec.)

444C

TIRE FILL RATE

35″ x 12.5″	FILL RATE
0 to 40 PSI	8 min. 37 sec. (± 15 sec.)
10 to 40 PSI	6 min. 31 sec. (± 15 sec.)
37″ x 12.5″	FILL RATE
0 to 40 PSI	9 min. 43 sec. (± 15 sec.)
10 to 40 PSI	7 min. 29 sec. (± 15 sec.)

444C

TANK FILL RATE

2.5 GALLON TANK	FILL RATE
0 to 200 PSI	5 min. 02 sec. (± 10 sec.)
165 to 200 PSI	1 min. 30 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 200 PSI	10 min. 52 sec. (± 15 sec.)
165 to 200 PSI	3 min. 10 sec (± 10 sec.)

485C

TIRE FILL RATE

35″ x 12.5″	FILL RATE
0 to 40 PSI	8 min. 21 sec. (± 15 sec.)
10 to 40 PSI	6 min. 27 sec. (± 15 sec.)
37″ x 12.5″	FILL RATE
0 to 40 PSI	9 min. 36 sec. (± 15 sec.)
10 to 40 PSI	7 min. 22 sec. (± 15 sec.)

485C

TANK FILL RATE

2.5 GALLON TANK	FILL RATE
0 to 200 PSI	4 min. 50 sec. (± 10 sec.)
165 to 200 PSI	1 min. 15 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 200 PSI	9 min. 45 sec. (± 15 sec.)
165 to 200 PSI	2 min. 25 sec (± 10 sec.)
