VIAIR | Rocker Switch Bracket

Description

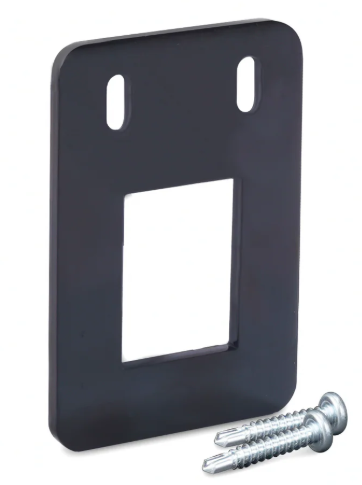

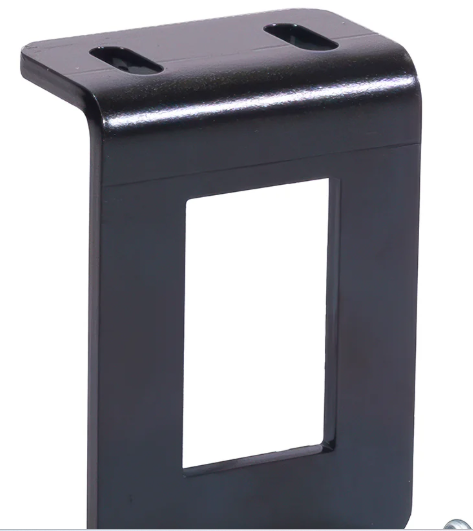

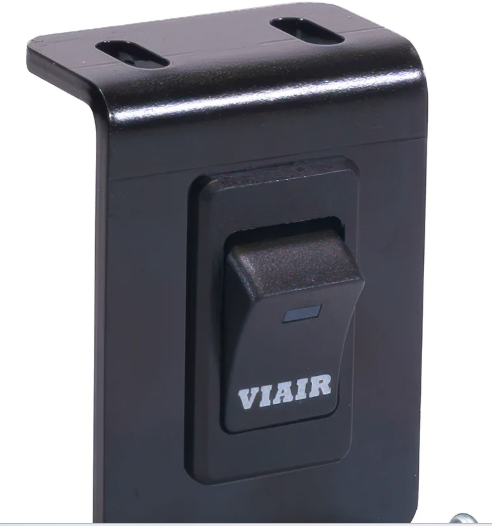

VIAIR’s Rocker Switch Mount Bracket is the perfect solution for mounting a VIAIR Rocker Switch to your vehicle. Available in L or Flat configurations, it's a perfect addition to your Vehicle Mount Systems (VMS).

VIAIR Rocker Switch NOT INCLUDED

Specifications

SPECS:

PN: 90130
Material: 2.5mm Steel
Color: Black Powder Coated
Includes: 2 self-tapping screws
Cutout dimensions: 32mm (H) x 22mm (W)

COMPATIBLE WITH

PN90120 VIAIR Rocker switch, RED
PN90121 VIAIR Rocker switch, BLUE
PN90123 No logo Rocker switch, RED
PN90124 No logo Rocker switch, BLUE

Product Resources

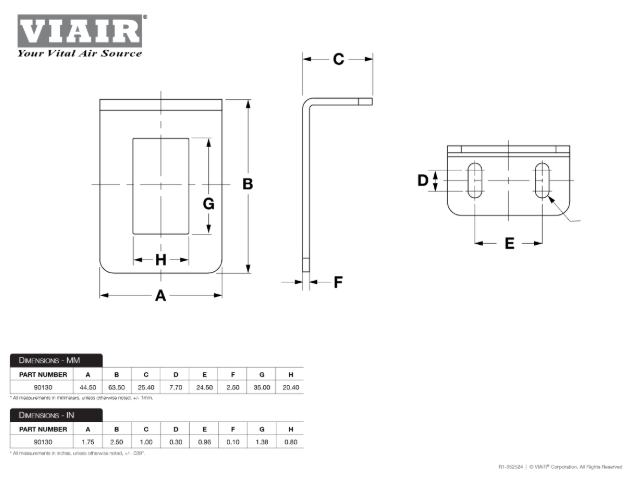

Dimensional Drawing
