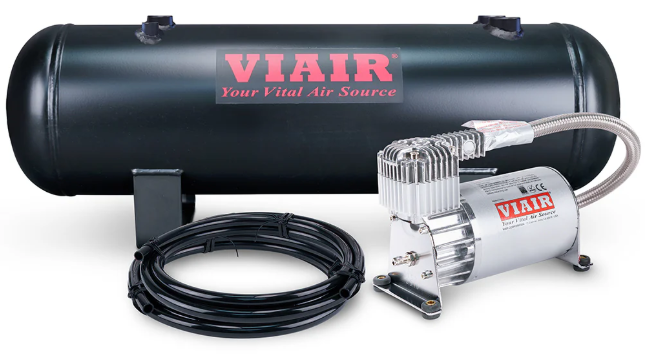

Quarter Duty Cycle Onboard Air System is a smaller, 120 psi onboard air system, suitable for many pneumatic needs, including smaller inflation tasks (not including the inflation of automotive tires), air horns and more. The 25% Duty Cycle Onboard Air System will provide enough service time to operate for about 10 minutes of continued use, providing you give the system 30 minutes to cool down afterwards.

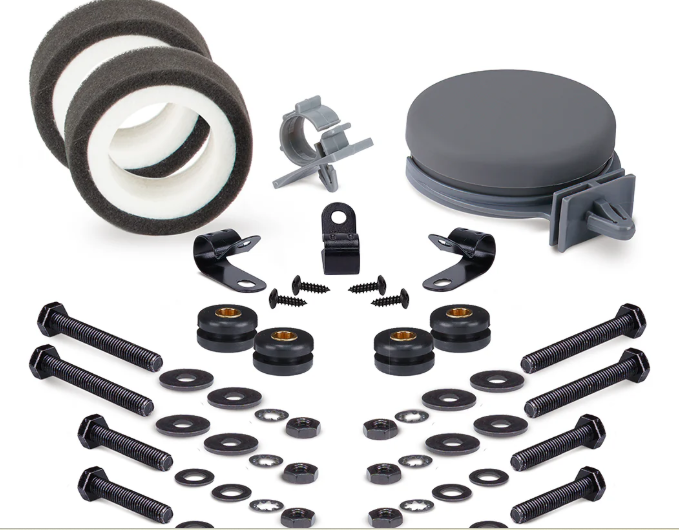

What’s in the Box
Specifications
SPECS:
CFM: 2.03 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 25% @ 100 PSI
Max. Working Pressure: 120 PSI
Max. Amp Draw: 18-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
FEATURES:

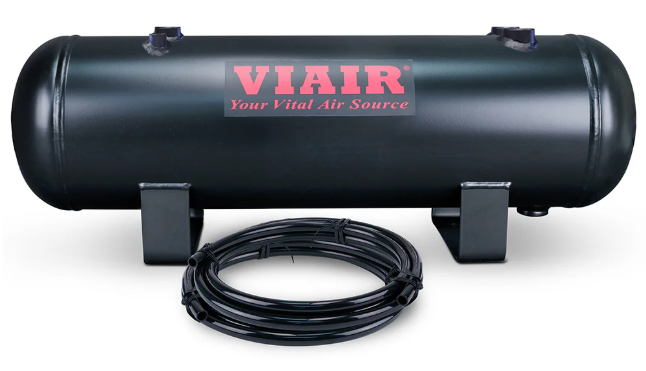

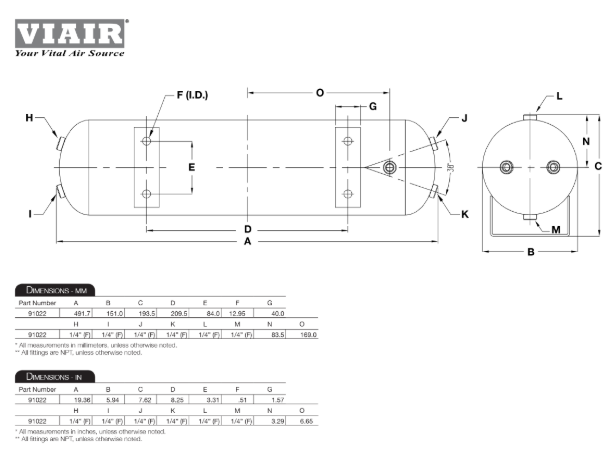

2.0 Gallon VIAIR Air Tank

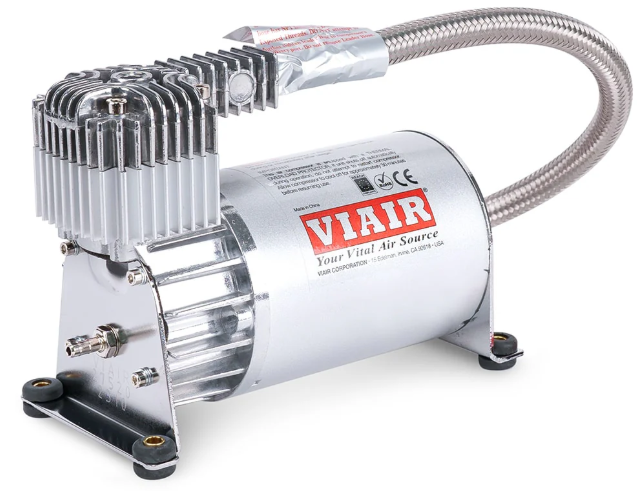

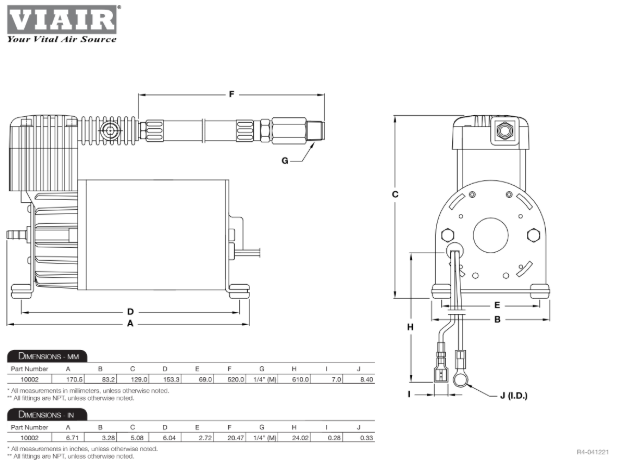

275C VIAIR Air Compressor w/Thermal Overload Protector
Pressure Switch (90 PSI on, 120 PSI off)

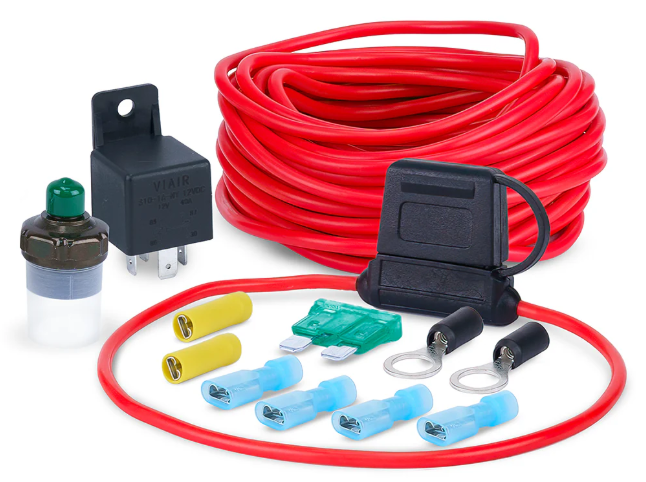

40-Amp Relay

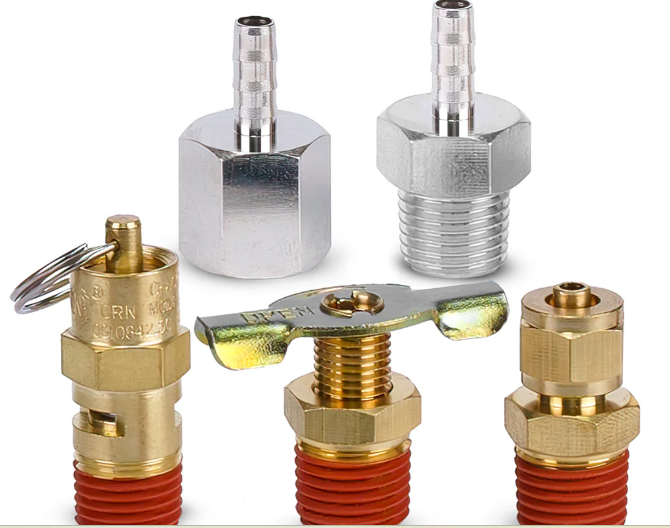

1/4” NPT 145 PSI Safety Valve
1/4” Drain Cock
1/4” Compression Fitting
20ft. 16 Gauge Wire with Inline Fuse Holder
Accessory Airline
Electrical Connections
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.03 | 10 | 0 | 57.5 | 10 |
| 10 | 1.17 | 12 | 1.0 | 32.0 | 13 |
| 20 | 1.11 | 13 | 2.0 | 30.0 | 14 |
| 30 | 1.04 | 15 | 3.0 | 28.5 | 16 |
| 40 | 1.01 | 15 | 4.0 | 26.5 | 16 |
| 50 | 0.97 | 16 | 5.0 | 24.5 | 17 |
| 60 | 0.92 | 16 | 6.0 | 22.5 | 17 |
| 70 | 0.88 | 17 | 7.0 | 21.5 | 18 |
| 80 | 0.83 | 17 | 8.0 | 20.0 | 18 |
| 90 | 0.79 | 17 | |||
| 100 | 0.76 | 18 | |||
| 110 | 0.72 | 18 | |||
| 120 | 0.69 | 18 |
Fill Rates
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 120 PSI | 2 min. 22 sec. (± 10 sec.) |
| 90 to 120 PSI | 46 sec. (± 05 sec.) |
