VIAIR’s Medium Duty Onboard Air System is a pre-packaged compressed air solution that provides a 33% duty cycle 325C compressor, 2.5 gallon air tank, and all components needed to install basic vehicle-based pneumatics.

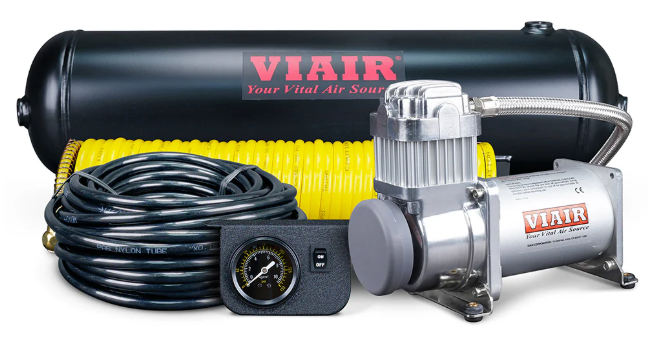

What’s in the Box

  • Compressor
  • Tank and Airline hoses
  • Electrical
  • Fittings

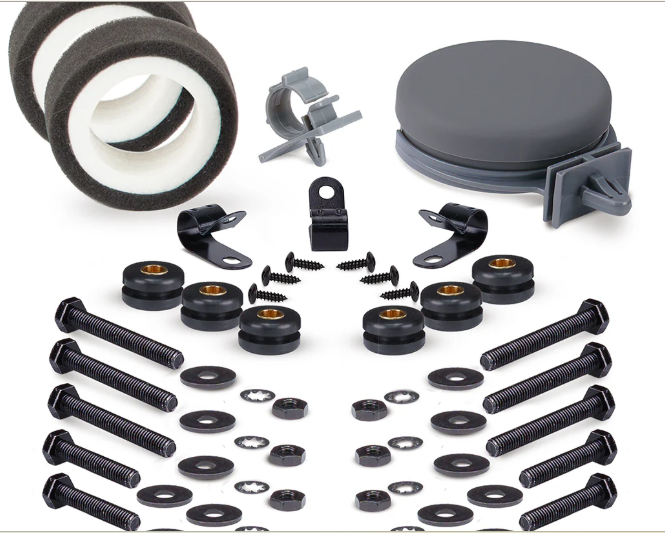

  • Mounting Kit
  • PSI Gauge

Specifications

SPECS:

CFM: 1.59 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 22-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

FEATURES:

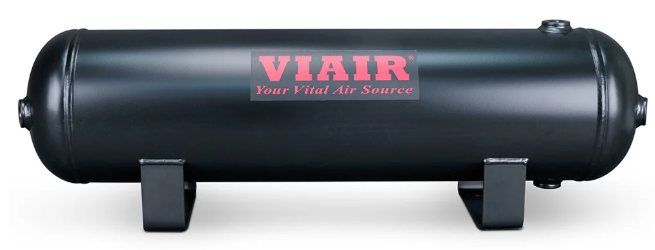

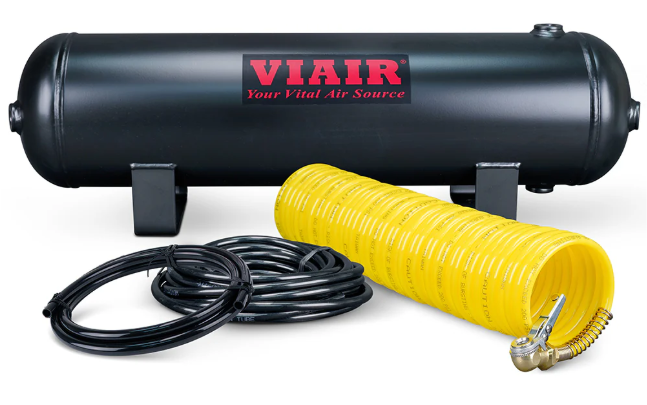

2.5 Gallon VIAIR Air Tank

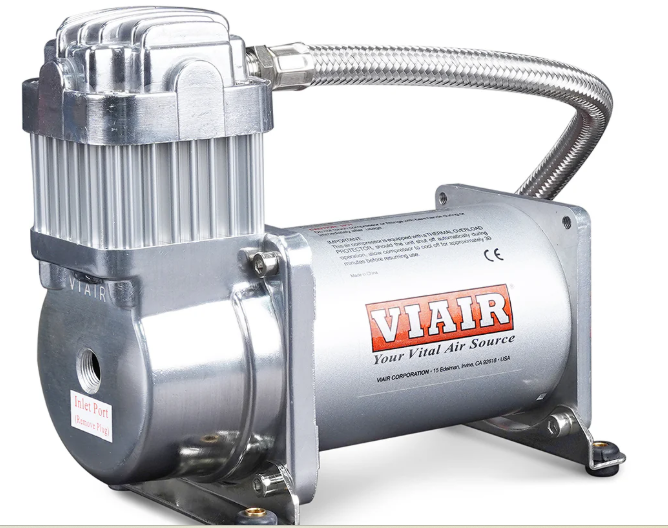

325C VIAIR Compressor w/Thermal Overload Protector

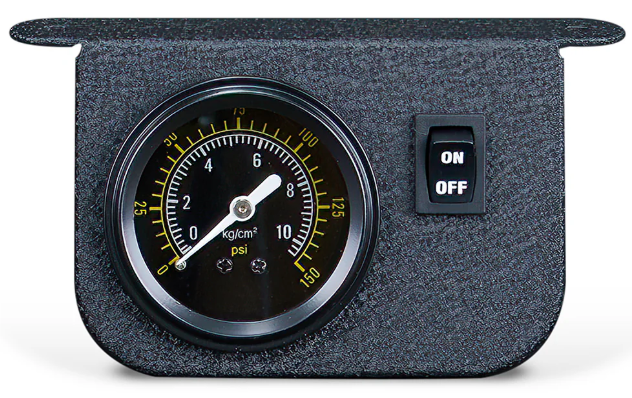

Dash Panel Gauge with ON/OFF Switch
Pressure Switch with Relay (110 PSI on, 145 PSI off)

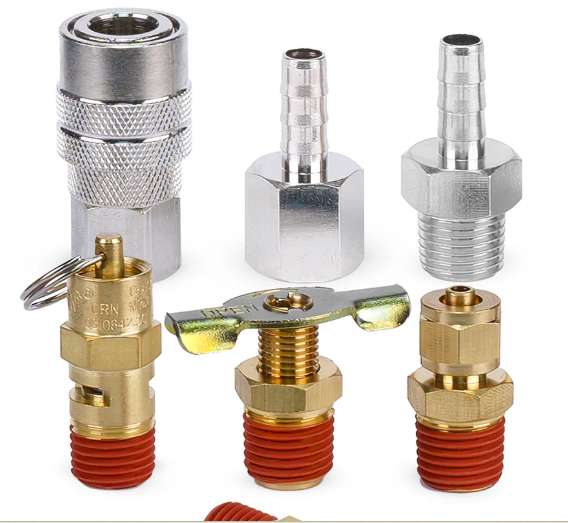

Reducer: 1/8” (F) to 1/4” (M)
1/4” Quick Connect Coupler (M)
1/4” 175 PSI Safety Valve
1/4” Drain Cock
20ft. 12-Gauge Wire with Inline Fuse Holder
4” Strip of Continuous Grommet Material
Accessory Airline
Electrical Connections

PLEASE NOTE:

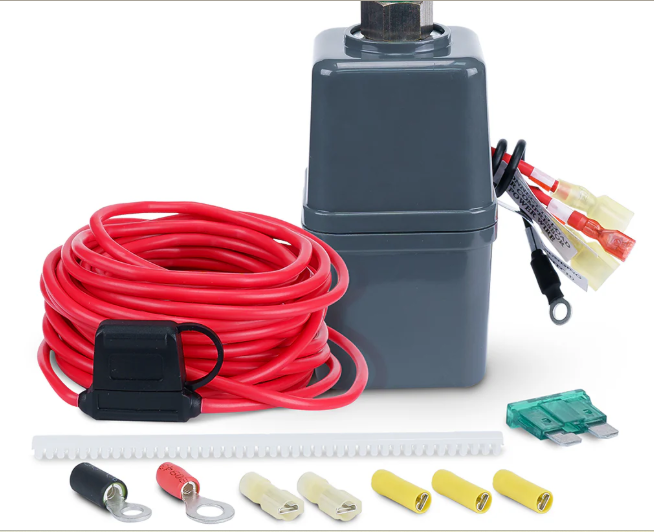

Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure. Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.59 14 0 45.0 14
10 1.40 16 1.0 37.6 16
20 1.24 16 2.0 34.1 18
30 1.20 18 3.0 32.3 18
40 1.17 18 4.0 29.1 20
50 1.08 19 5.0 26.0 21
60 1.01 20 6.0 23.7 21
70 0.93 21 7.0 21.5 21
80 0.87 21 8.0 19.7 21
90 0.82 21 9.0 18.0 21
100 0.77 21 10.0 16.5 21
110 0.72 21
120 0.68 21
130 0.64 21
140 0.60 21
150 0.57 21



Fill Rates

TIRE FILL RATE
31″ X 12.5″ FILL RATE
0 to 30 PSI 2 min. 30 sec. (± 10 sec.)
15 to 30 PSI 52 sec. (± 05 sec.)
33″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 04 sec. (± 15 sec.)
15 to 30 PSI 1 min. 02 sec. (± 10 sec.)

TANK FILL RATE
2.5 GALLON TANK FILL RATE
0 to 145 PSI 4 min. 15 sec. (± 10 sec.)
110 to 145 PSI 1 min. 25 sec. (± 05 sec.)



Product Resources

User Manual

Wiring Diagram

Plumbing Diagram

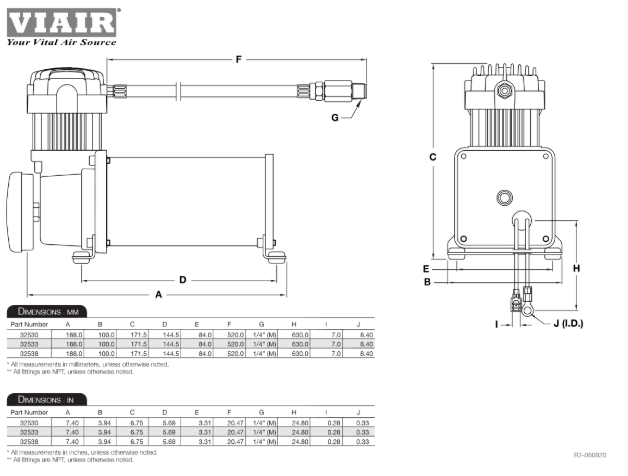

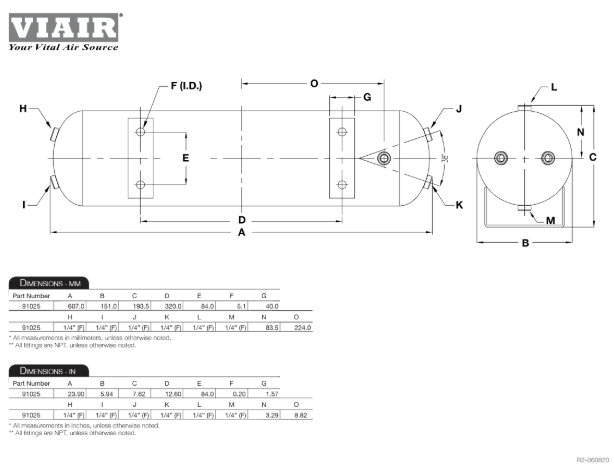

Dimensional Drawing
