Sale price$501.50
Quantity:

Description

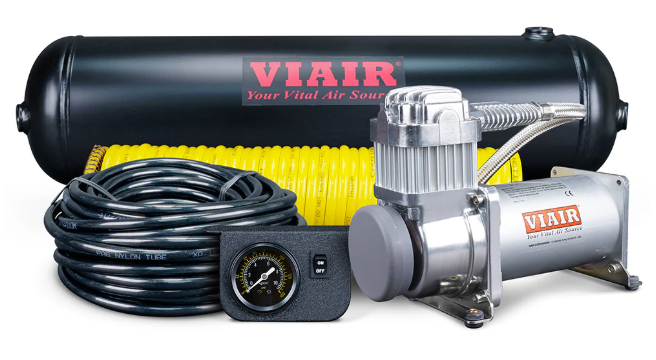

VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box.

What’s in the Box

  • Compressor

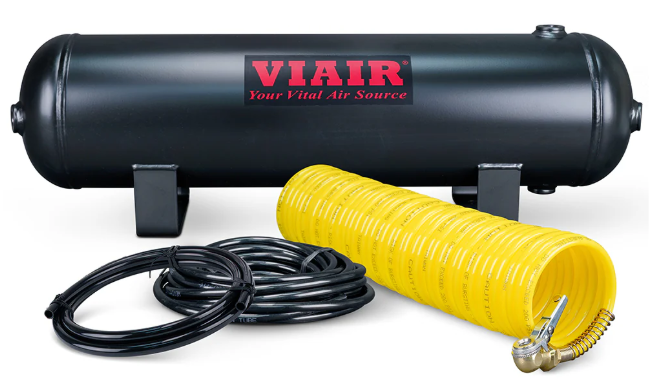

  • Tank and Airline hoses

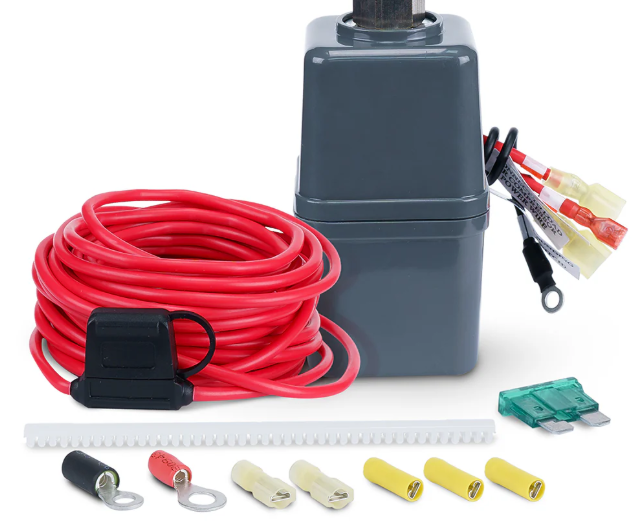

  • Electrical

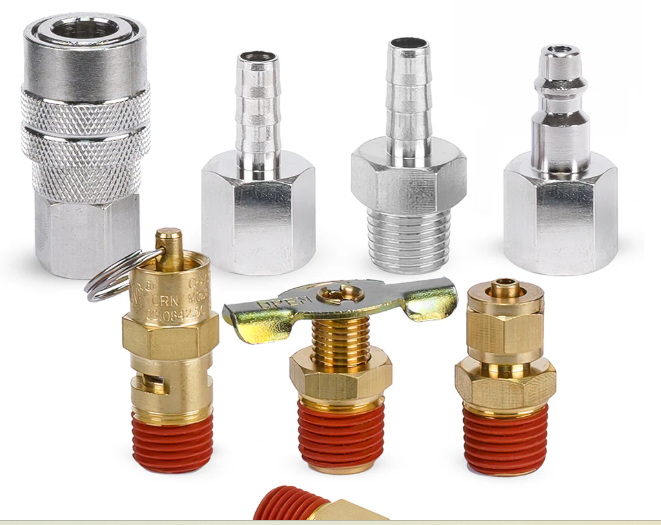

  • Fittings

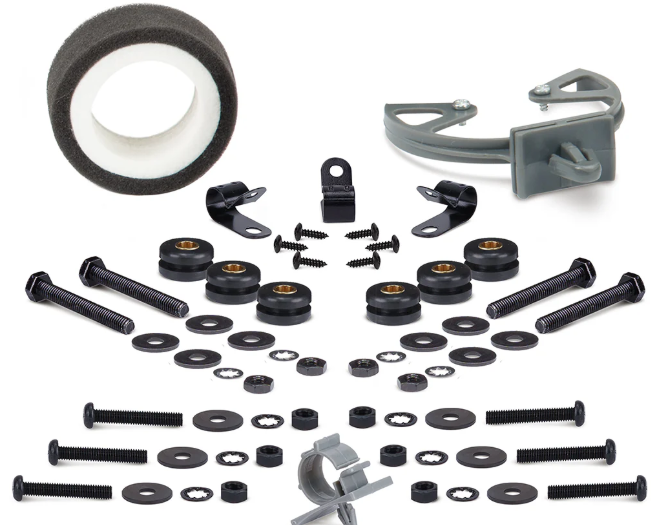

  • Mounting Kit
  • PSI Gauge

Specifications

SPECS:

CFM: 2.62 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

FEATURES:

2.5 Gallon VIAIR Air Tank

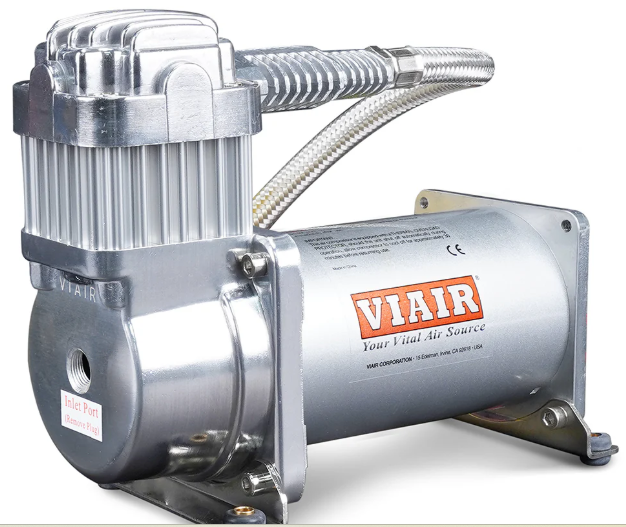

400C VIAIR Compressor w/Thermal Overload Protector
35ft. Coil Hose with Tire Chuck
1/4” Quick Connect Stud (F)
1/4” Quick Connect Coupler (F)

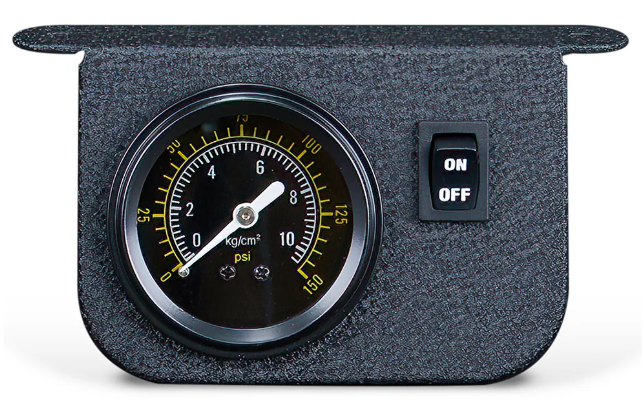

Dash Panel Gauge with ON/OFF Switch
Pressure Switch with Relay (110 PSI on, 145 PSI off)
Reducer: 1/8” (F) to 1/4” (M)
1/4” 175 PSI Safety Valve
1/4” Drain Cock
(3) 1/4” Compression Fittings
20ft. 12-Gauge Wire with Inline Fuse Holder
4” Strip of Continuous Grommet Material
Accessory Airline
Electrical Connections

PLEASE NOTE:
Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure. Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 2.62 16 0 74.0 16
10 2.39 18 1.0 65.0 20
20 2.21 20 2.0 60.0 23
30 2.11 22 3.0 56.0 25
40 2.01 24 4.0 53.0 27
50 1.93 25 5.0 49.0 28
60 1.84 26 6.0 46.0 28
70 1.73 27 7.0 42.0 28
80 1.65 27 8.0 38.0 28
90 1.52 27 9.0 35.0 27
100 1.45 27 10.0 31.0 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26



Fill Rates

TIRE FILL RATE
33″ X 12.5″ FILL RATE
0 to 30 PSI 3 min. 24 sec. (± 10 sec.)
15 to 30PSI 52 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 4 min. 47 sec. (± 15 sec.)
15 to 30 PSI 1 min. 41 sec. (± 10 sec.)
RV TIRES 275/80R22.5 FILL RATE
80 to 90 PSI 30 sec. (± 05 sec.)
90 to 100 PSI 3 min. 50 sec. (± 10 sec.)
110 to 130 PSI 4 min. 37 sec. (± 15 sec.)

TANK FILL RATE
2.5 GALLON TANK FILL RATE
o to 145 PSI 2 min. 20 sec. (± 05 sec.)
110 to 145 PSI 48 sec. (± 03 sec.)



Product Resources

User Manual

Wiring Diagram

Plumbing Diagram

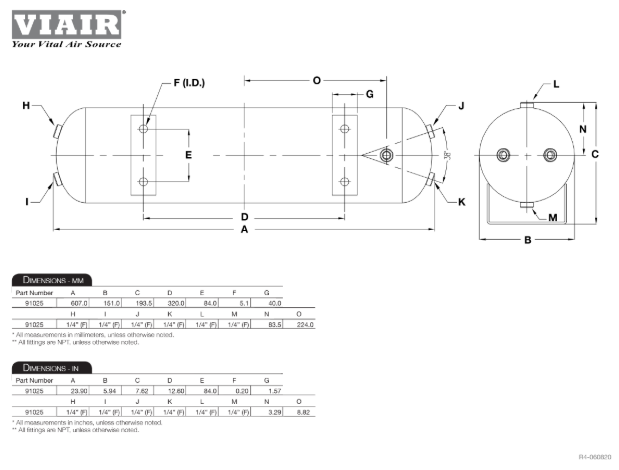

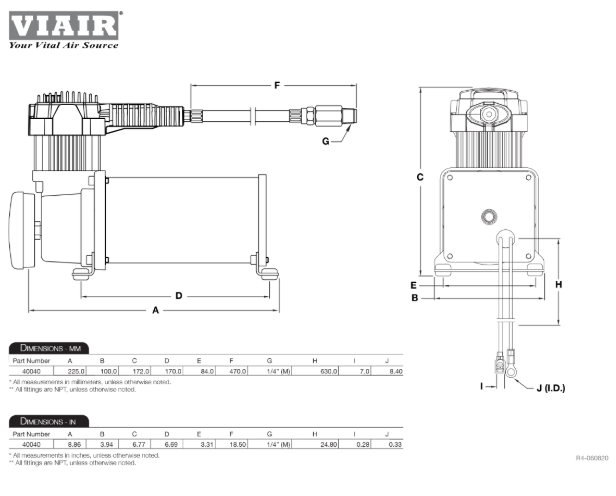

Dimensional Drawing
