VIAIR | Every Vehicle Carry™ 85P Digital Portable Compressor
Tire Connection
SELECT OPTIONS
Tire Connection
Tire Connection
Description

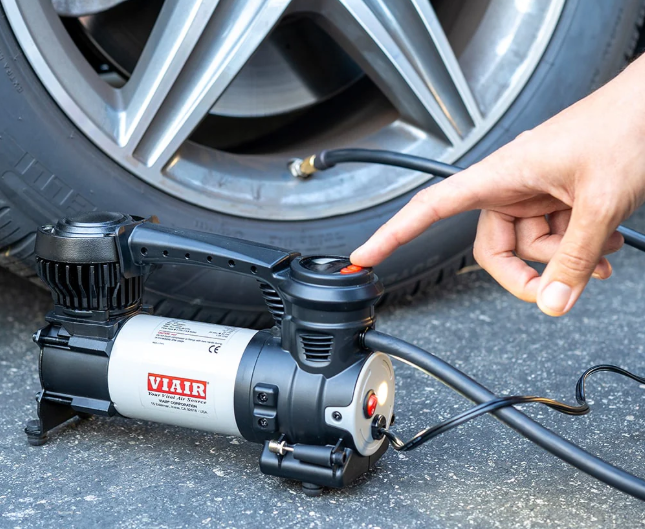

Our best-selling 85P just got better! Introducing the Every Vehicle Carry™ 85P Digital compressor. Featuring a digital gauge and preset pressure with automatic shut-off, tire inflation is safer and more accurate than ever - all of it with VIAIR's legendary performance and reliability.
What’s in the Box
Compressor
Inflation Tips Kit
Carry Bag
Specifications
SPECS:
CFM: 1.77 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 20 min. @ 30 PSI
Max. Working Pressure: 60 PSI
Max. Amp/Watt Draw: 15A/180W
Ingress Protection Rating: IP53
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 9.1″L x 3.1″W x 5.6″H
Net Weight: 4.30 lbs.
Power Cord Length: 10 ft.
Air Hose Length: 3 ft.
FEATURES:

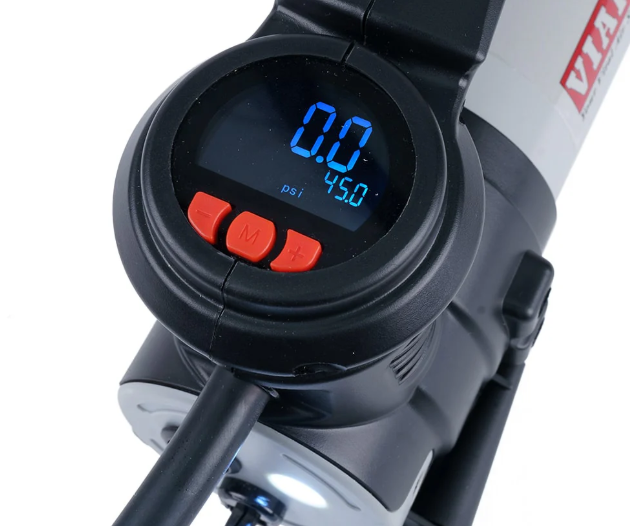

Easy to read Digital Gauge
Preset function and auto-shutoff
Extra-bright LED work light

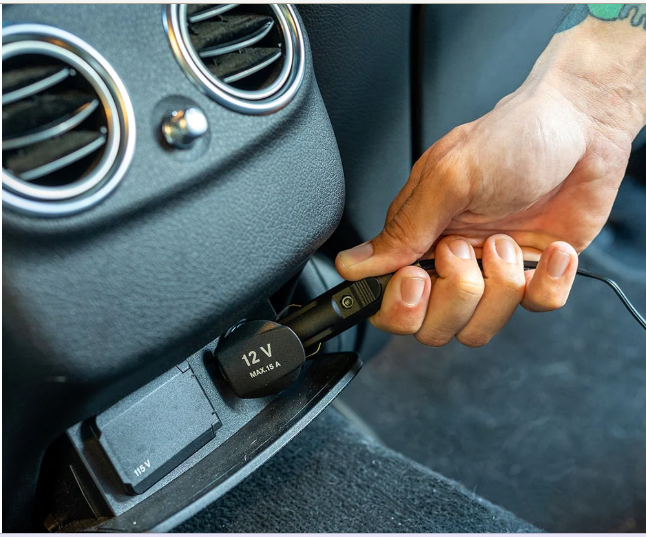

Accessory Power plug w/ built-in 15A fuse
Press-on Tire Chuck (PN 00084)
Twist-on Tire Chuck (PN 00085)
3pcs Inflation tips and a Presta valve adapter

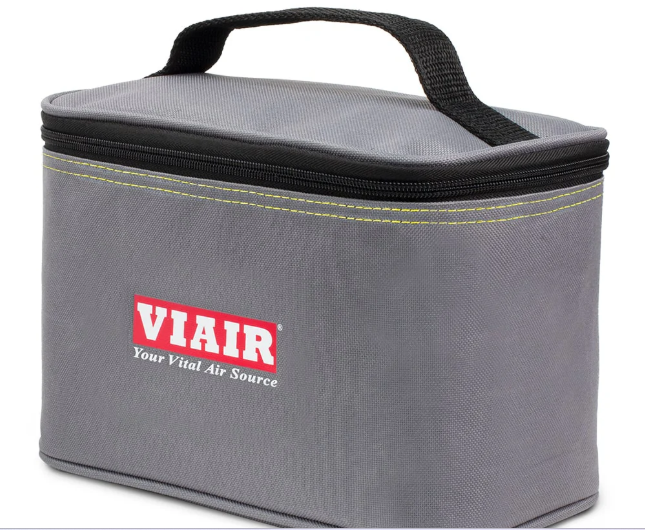

Deluxe Carry Bag
PLEASE NOTE:
Always check your vehicle’s power port rating for maximum amperage before ordering. The EVC85P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.The EVC85P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.77 | 10 | 0 | 50.0 | 10 |
| 10 | 1.64 | 11 | 1.0 | 44.0 | 11 |
| 20 | 1.44 | 12 | 2.0 | 36.0 | 13 |
| 30 | 1.27 | 13 | 3.0 | 30.0 | 13 |
| 40 | 1.13 | 13 | 4.0 | 25.0 | 13 |
| 50 | 1.02 | 13 | 5.0 | 21.0 | 12 |
| 60 | 0.86 | 13 | 6.0 | 16.0 | 11 |
| 70 | 0.75 | 12 | 7.0 | 12.7 | 10 |
| 80 | 0.66 | 12 | 8.0 | 9.0 | 9 |
| 90 | 0.54 | 11 | |||
| 100 | 0.45 | 10 |
Fill Rates
EVC85P Portable
| 26.5" Tire Fill Rate (205/65 R16) | FILL RATE |
|---|---|
| 27 to 35 PSI | 39 sec. (± 05 sec.) |
| 35 to 44 PSI | 48 sec. (± 05 sec.) |
| 30" Tire Fill Rate (225/60 R18) | FILL RATE |
| 27 to 35 PSI | 47 sec. (± 05 sec.) |
| 35 to 44 PSI | 54 sec. (± 05 sec.) |
