Sale price$88.95
Tire Connection:

Tire Connection

Quantity:

Description

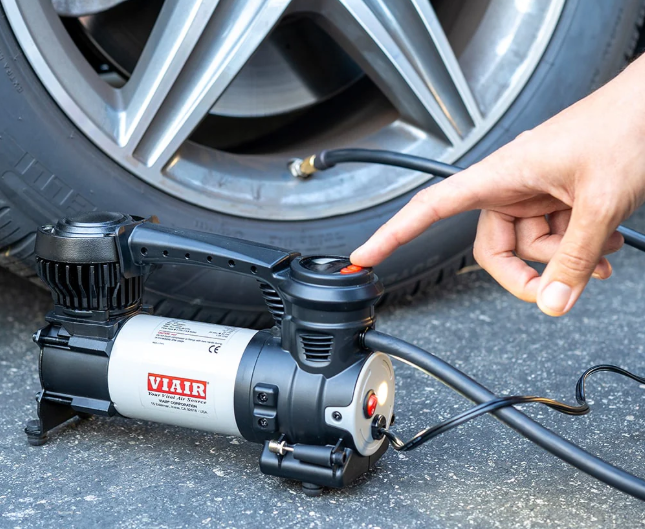

Our best-selling 85P just got better! Introducing the Every Vehicle Carry™ 85P Digital compressor. Featuring a digital gauge and preset pressure with automatic shut-off, tire inflation is safer and more accurate than ever - all of it with VIAIR's legendary performance and reliability.

What’s in the Box

Compressor

Inflation Tips Kit

Carry Bag

Specifications

SPECS:

CFM: 1.77 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 20 min. @ 30 PSI
Max. Working Pressure: 60 PSI
Max. Amp/Watt Draw: 15A/180W
Ingress Protection Rating: IP53
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 9.1″L x 3.1″W x 5.6″H
Net Weight: 4.30 lbs.
Power Cord Length: 10 ft.
Air Hose Length: 3 ft.

FEATURES:

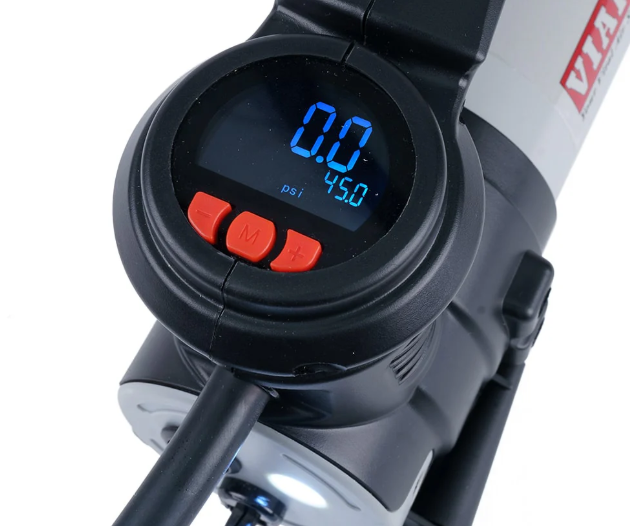

Easy to read Digital Gauge
Preset function and auto-shutoff
Extra-bright LED work light

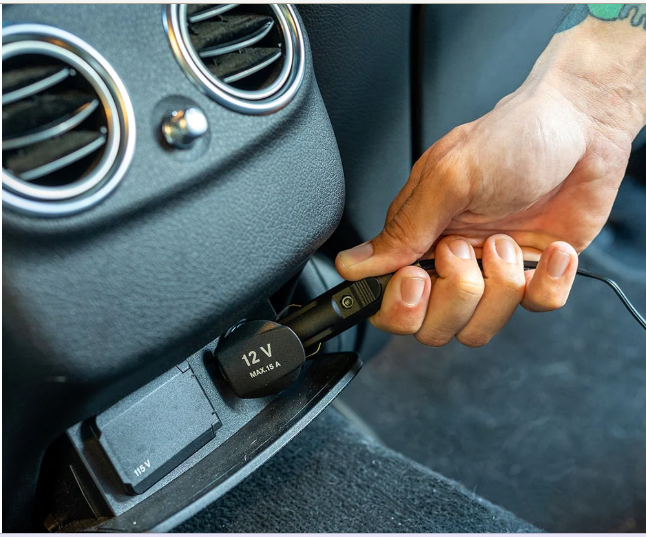

Accessory Power plug w/ built-in 15A fuse
Press-on Tire Chuck (PN 00084)
Twist-on Tire Chuck (PN 00085)
3pcs Inflation tips and a Presta valve adapter

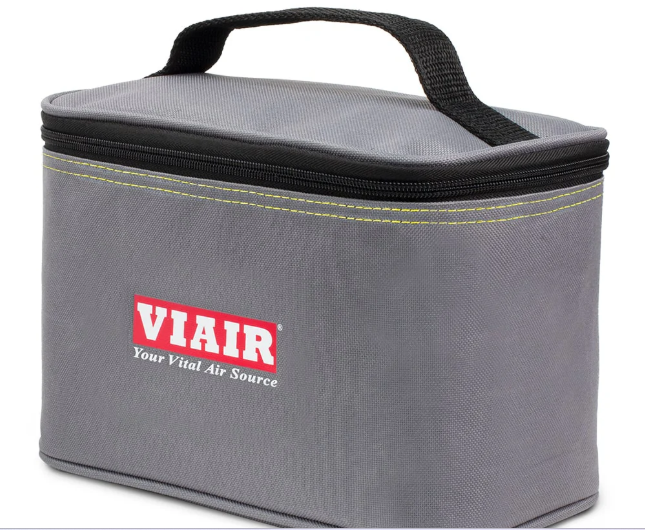

Deluxe Carry Bag

PLEASE NOTE:
Always check your vehicle’s power port rating for maximum amperage before ordering. The EVC85P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.The EVC85P does not work with the VIAIR Winterization Kit (P/N 90145).

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.77 10 0 50.0 10
10 1.64 11 1.0 44.0 11
20 1.44 12 2.0 36.0 13
30 1.27 13 3.0 30.0 13
40 1.13 13 4.0 25.0 13
50 1.02 13 5.0 21.0 12
60 0.86 13 6.0 16.0 11
70 0.75 12 7.0 12.7 10
80 0.66 12 8.0 9.0 9
90 0.54 11
100 0.45 10

Fill Rates

EVC85P Portable

26.5" Tire Fill Rate (205/65 R16) FILL RATE
27 to 35 PSI 39 sec. (± 05 sec.)
35 to 44 PSI 48 sec. (± 05 sec.)
30" Tire Fill Rate (225/60 R18) FILL RATE
27 to 35 PSI 47 sec. (± 05 sec.)
35 to 44 PSI 54 sec. (± 05 sec.)
