VIAIR | Every Vehicle Carry™ 88P Digital Portable Compressor
Power Cord
SELECT OPTIONS
Power Cord
Power Cord
Description

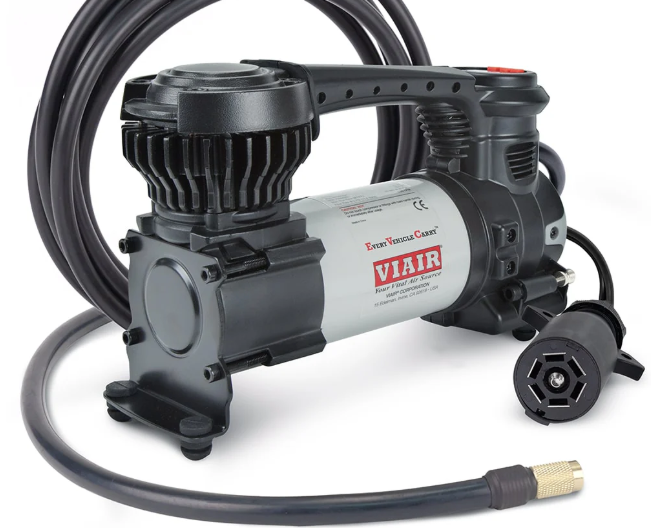

Our best-seller, the 88P just got better! Introducing the Every Vehicle Carry™ 88P Digital Compressor. Featuring a digital gauge and preset pressure with automatic shutoff, tire inflation is easier and more accurate than ever! Now also available with a 7-way Connector power cord that allows you to power it straight from the trailer plug. (Pat. Pending)
What’s in the Box
Compressor
Inflation tips kit
Carry bag
Specifications
SPECS:
CFM: 1.97 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 25 min. @ 30 PSI
Max. Working Pressure: 120 PSI
Max. Amp Draw: 20-Amps
Ingress Protection Rating: IP53
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 9.8″L x 3.2″W x 5.6″H
Net Weight: 4.75 lbs.
Power Cord Length: 10 ft.
Air Hose Length: 16 ft.
FEATURES:

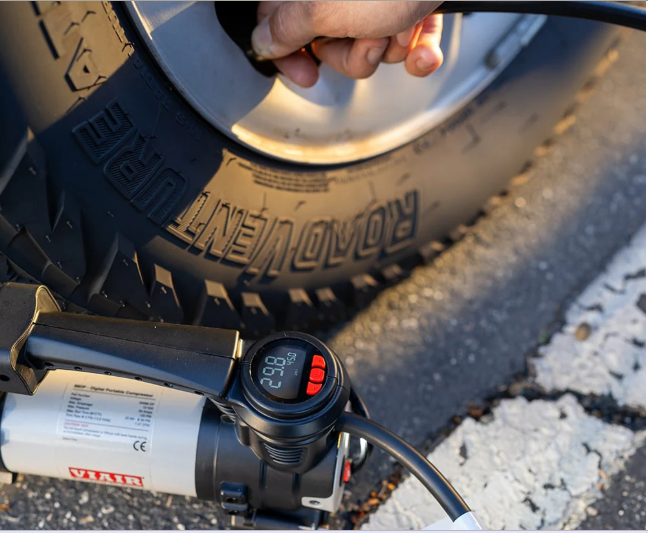

Easy to read Digital Gauge
Preset function and auto-shutoff
Extra-bright LED work light
Solid Brass Twist-on Tire chuck

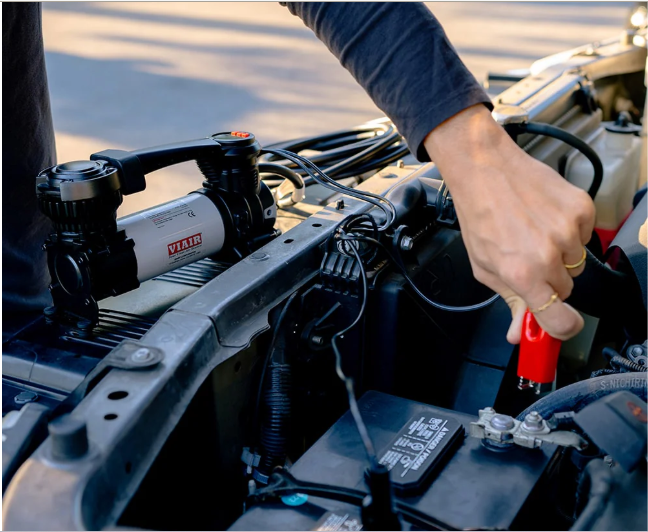

Dual Battery Clamps with inline 25A fuse (P/N EVC88P) or 7 Way Access plug (P/N EVC88P7)

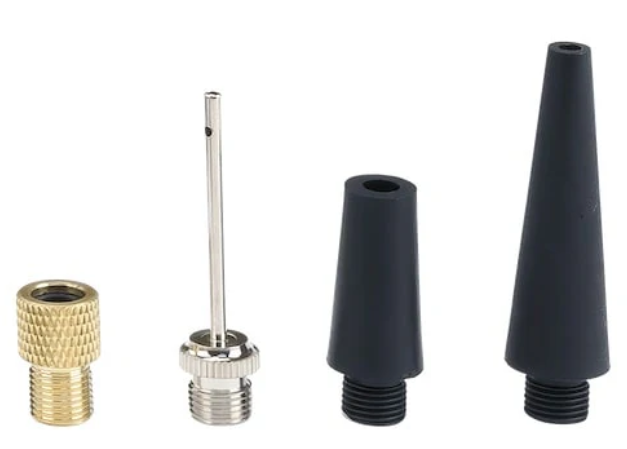

3pcs Inflation tips and a Presta valve
adapter
Deluxe Carry Bag
PLEASE NOTE:
The 88P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 88P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LMP | A |
---|---|---|---|---|---|
0 | 1.97 | 14 | 0 | 56.0 | 14 |
10 | 1.82 | 15 | 1.0 | 49.0 | 15 |
20 | 1.62 | 16 | 2.0 | 41.0 | 17 |
30 | 1.45 | 17 | 3.0 | 36.0 | 17 |
40 | 1.32 | 17 | 4.0 | 31.0 | 18 |
50 | 1.18 | 18 | 5.0 | 26.0 | 17 |
60 | 1.05 | 18 | 6.0 | 21.0 | 16 |
70 | 0.94 | 18 | 7.0 | 17.0 | 15 |
80 | 0.83 | 17 | 8.0 | 14.0 | 14 |
90 | 0.70 | 16 | |||
100 | 0.63 | 16 | |||
110 | 0.54 | 15 | |||
120 | 0.45 | 14 |
Fill Rates
EVC 88p Portable
26.5" Tire (205/65 R16) | FILL RATE |
---|---|
27 to 35 PSI | 31 sec. (± 05 sec.) |
35 to 44 PSI | 34 sec. (± 05 sec.) |
30" Tire (225/68 R18) | FILL RATE |
27 to 35 PSI | 40 sec. (± 05 sec.) |
35 to 44 PSI | 42 sec. (± 05 sec.) |
32" (275/70 R17) | FILL RATE |
27 to 35 PSI | 1 min 08 sec. (± 5 sec.) |
35 to 44 PSI | 1 min. 26 sec. (± 05 sec.) |
