VIAIR | Every Vehicle Carry™ 75P Digital Portable Compressor (EVC75P)
SELECT OPTIONS
Description
Our popular 75P just got better! Introducing the Every Vehicle Carry™ 75P Digital Compressor. Featuring a digital gauge and preset pressure with automatic shutoff, tire inflation is easier and more accurate than ever - all of that packed in a tidy metal case for easy storage. Coming in at under $70, every driver can experience VIAIR's legendary long-lasting performance and reliability.
What’s in the Box
Compressor+
Inflation Tips Kit
Specifications
SPECS:
CFM: 1.13 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 50 PSI
Max. Working Pressure: 100 PSI
Max. Amp/Watt Draw: 10A/120W
Power Cord Length: 10 ft.
Air Hose Length: 2 ft.
Ingress Protection Rating: IP53
Max. Ambient Temp: 158°F
Min. Ambient Temp: -4°F
FEATURES
Easy to read Digital Gauge
Preset function and auto-shutoff

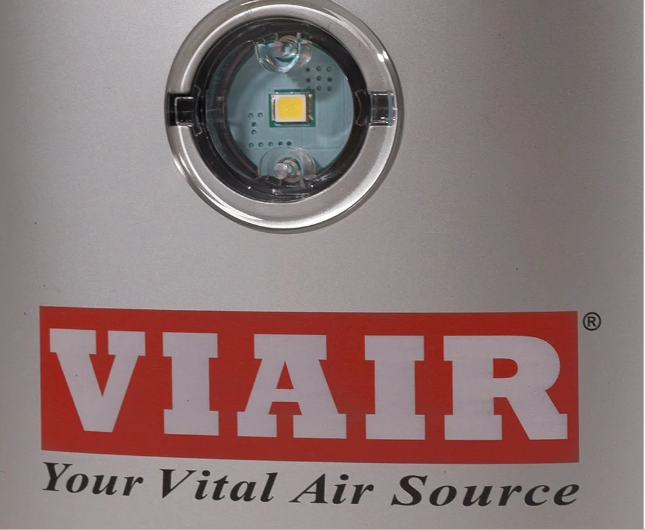

LED work light/ Power Indicator

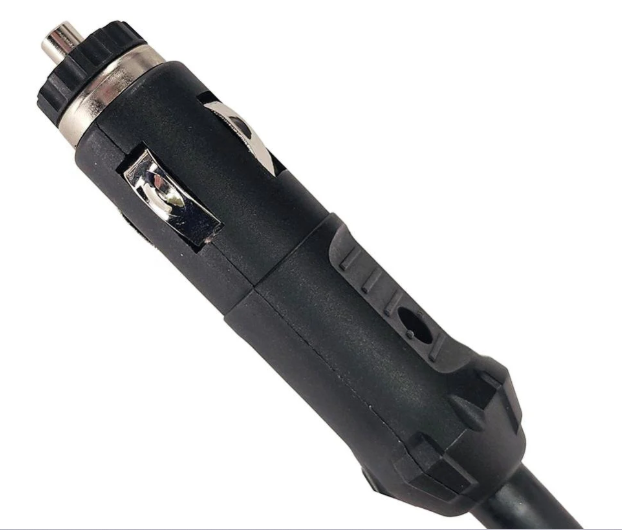

Accessory Power plug w/ built-in 10A fuse

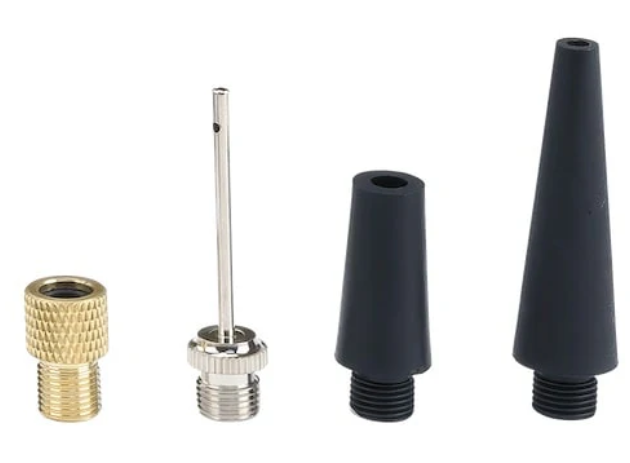

3 pcs Inflation tips w/ Presta valve adaptor
Deluxe Carry Bag
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.13 | 6 | 0 | 32.0 | 6 |
| 10 | 0.96 | 7 | 1.0 | 25.5 | 8 |
| 20 | 0.85 | 8 | 2.0 | 21.0 | 9 |
| 30 | 0.72 | 9 | 3.0 | 17.5 | 9 |
| 40 | 0.64 | 9 | 4.0 | 13.3 | 9 |
| 50 | 0.54 | 9 | 5.0 | 11.0 | 8 |
| 60 | 0.47 | 9 | 6.0 | 9.1 | 8 |
| 70 | 0.41 | 8 | 7.0 | 7.8 | 7 |
| 80 | 0.35 | 8 | |||
| 90 | 0.32 | 8 | |||
| 100 | 0.27 | 7 |
Fill Rates
| 195/70R14 | FILL RATE |
|---|---|
| 27 to 35 PSI | 1 min. 04 sec. (± 05 sec.) |
| 35 to 44 PSI | 1 min. 22 sec. (± 05 sec.) |
| 205/65R16 | FILL RATE |
| 27 to 35 PSI | 1 min. 07 sec. (± 05 sec.) |
| 35 to 44 PSI | 1 min. 29 sec. (± 05 sec.) |
