VIAIR | Dual VMS PRO Complete Air Management System

Please call to configure options:

Model:

• VMS400
• VMS444

4-Way Hose System Size:

• Small (Up to 100" wheelbase)
• Medium (Up to 130" wheelbase)
• Large (130" and longer wheelbase)

Color:

• Chrome
• Black

Description

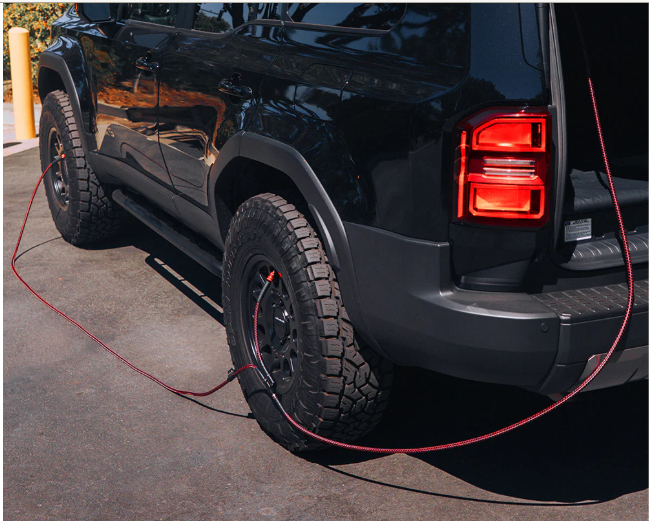

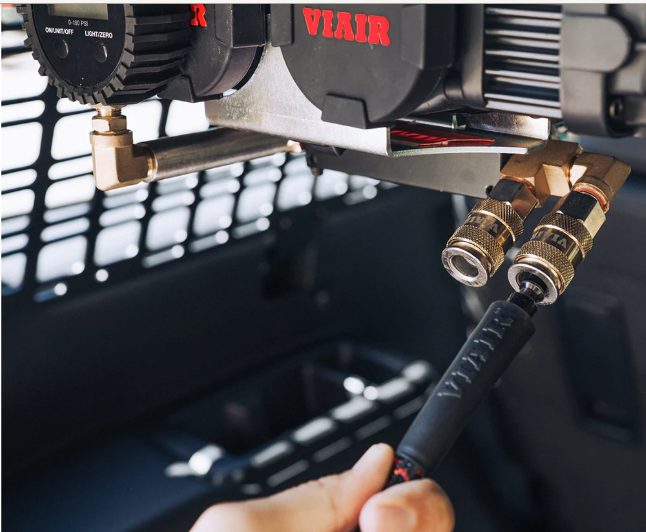

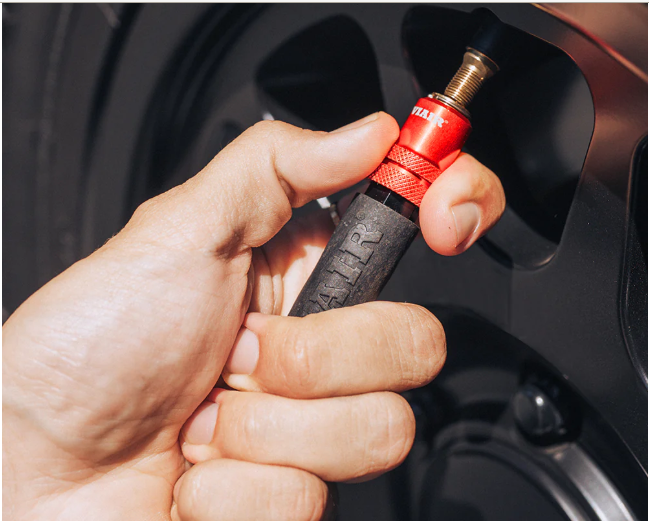

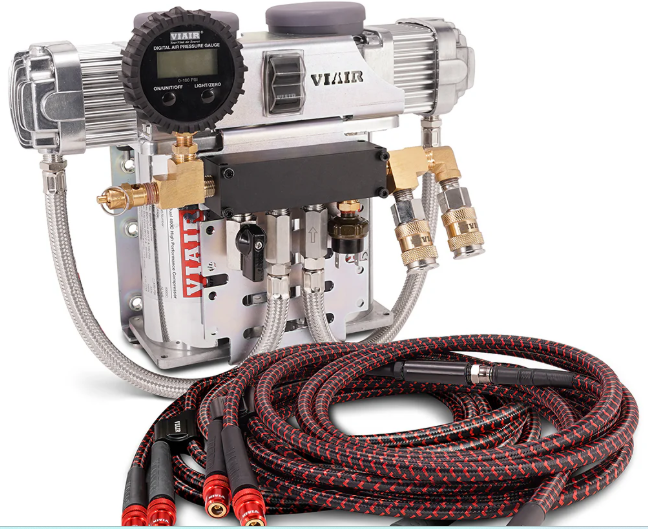

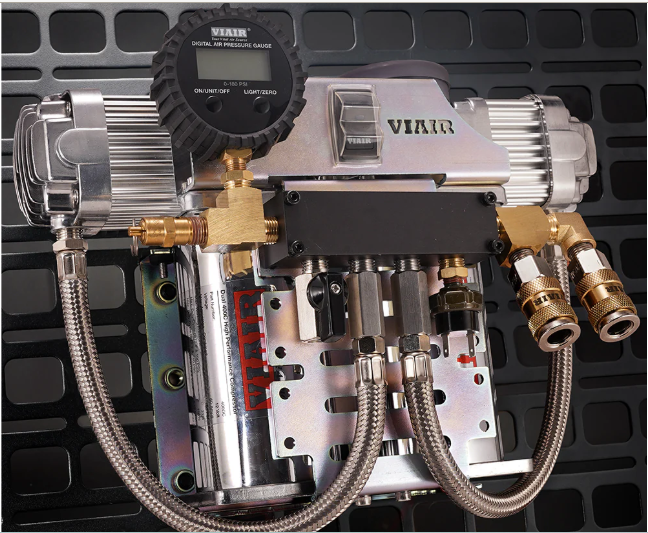

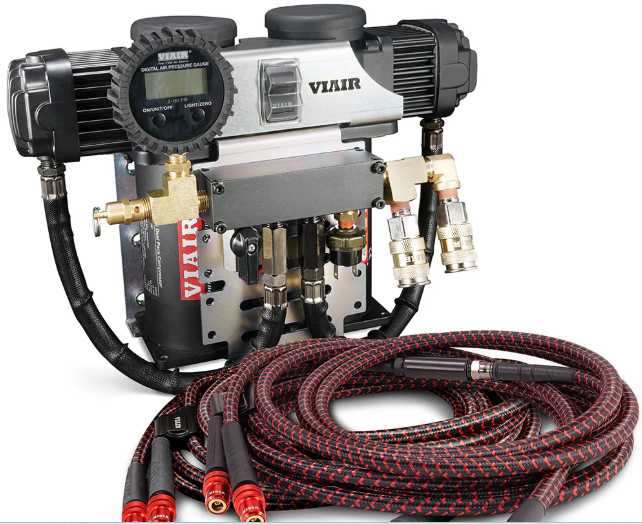

The DUAL VMS PRO System is our top-tier air management solution. We've taken our Dual VMS PLUS system and enhanced it. With a custom engineered 4-Way hose system, dual high-flow couplers, a digital gauge and a dump valve, it transforms your onboard air into a fully integrated station for precise inflation and deflation. Allows for fast deflation and inflation for up to 4 tires. The DUAL VMS PRO system is the perfect solution for the novice and or for hard core off-roader.

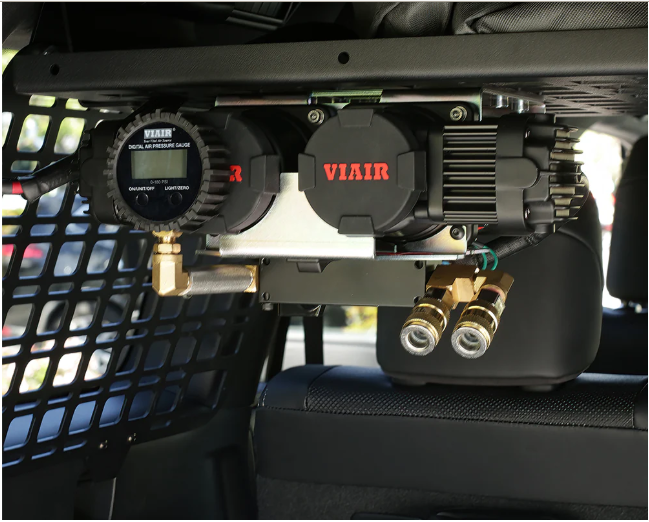

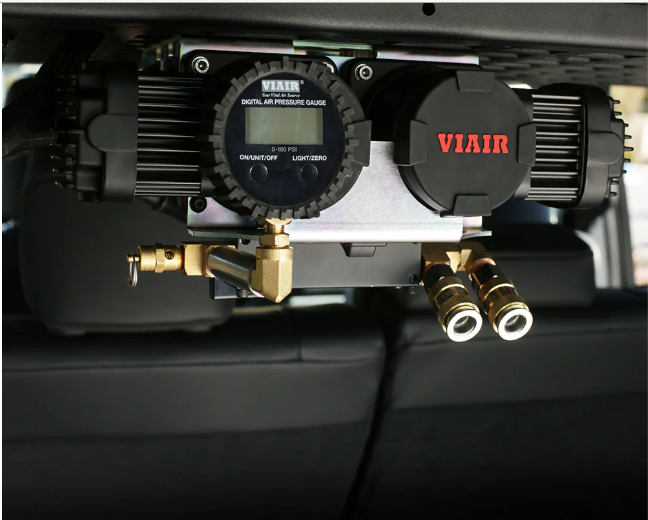

The Dual VMS PRO Systems are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability. The custom Lock Mount bracket allows you to mount just about anywhere. These systems can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.

Kits available for 400C (150 PSI), 444C (200 PSI) and with optional Black or Chrome Compressors. You also have the choice of Small, Medium, Large Hose system lengths. All necessary compressor mounting hardware is included.

400C (150 PSI): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast in a very compact package. 100% Duty Cycle @ 40 PSI.

444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

**Allow an additional couple of days for kit assembly prior to shipping

Specifications

DUAL 400C SPECS:
CFM: 5.12 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Duty Cycle: 100% @ 40 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 60-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions:9″L x 4″W x 6.75″H (Each Unit)
Net Weight: 19 lbs.

FEATURES:

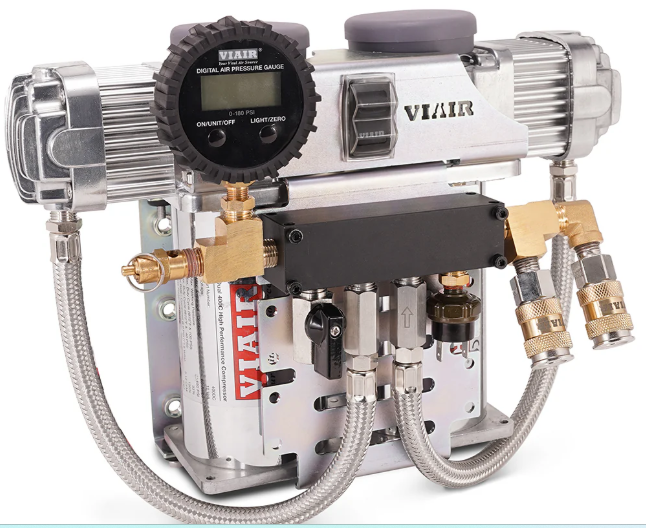

(2) 400C (Stealth Black or Chrome) Compressors
w/ Thermal Overload Protectors
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
(2) Air Filter Assemblies
(2) Sets of Spare Air Filter Elements
(2) Sets of Nuts, Bolts, Washers and Lock Washers

DUAL 444C SPECS:
CFM: 3.88 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions:10.87″L x 4.2″W x 7.06″H (Each Unit)
Net Weight: 23 lbs.

FEATURES:

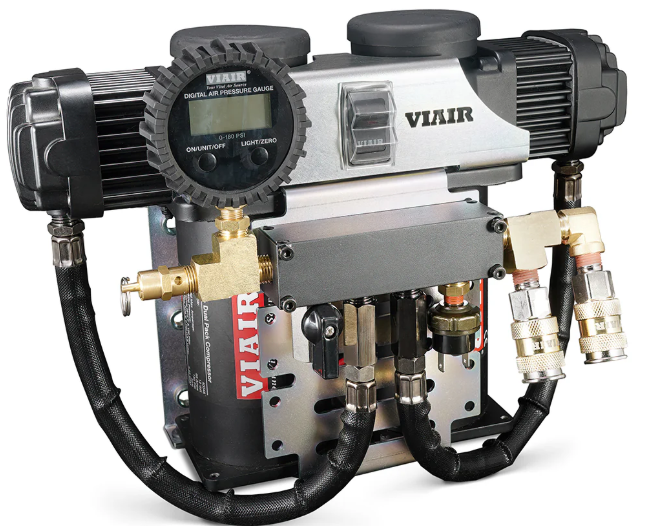

(2) 444C (Stealth Black or Chrome) Compressors
w/ Thermal Overload Protectors
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
(2) Air Filter Assemblies
(2) Sets of Spare Air Filter Elements
(2) Sets of Nuts, Bolts, Washers and Lock Washers

KIT FEATURES:
Allows for 4 tire fill
Available in 150PSI and 200PSI Configuration
Provides full air control (Inflate and Deflate)
Flexibility in mounting, just about anywhere
