Description

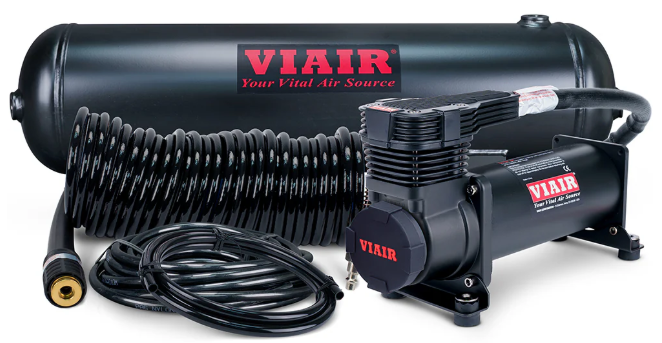

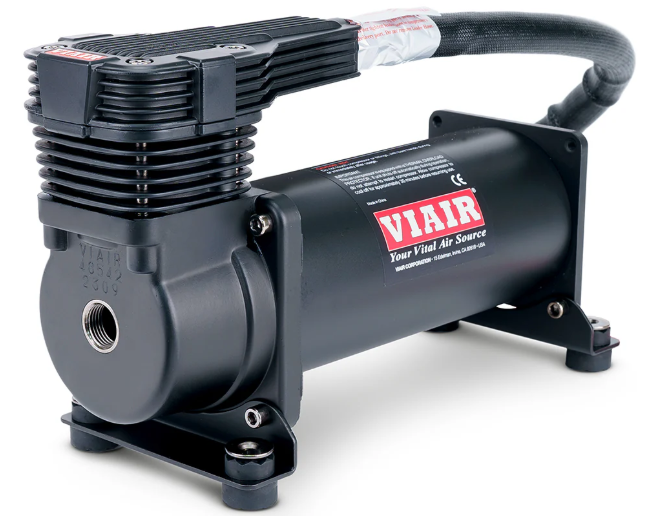

VIAIR’s Continuous Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 485C CE compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

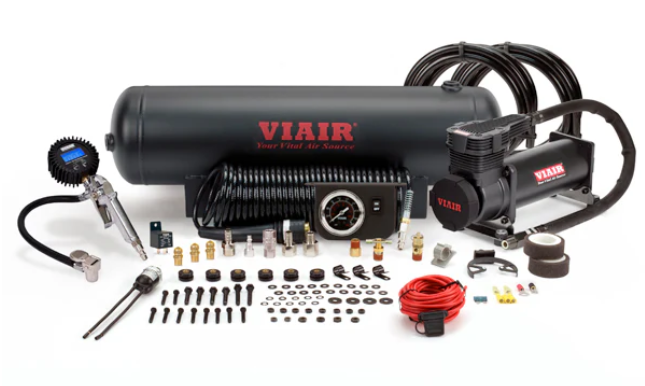

What’s in the Box
- Compressor

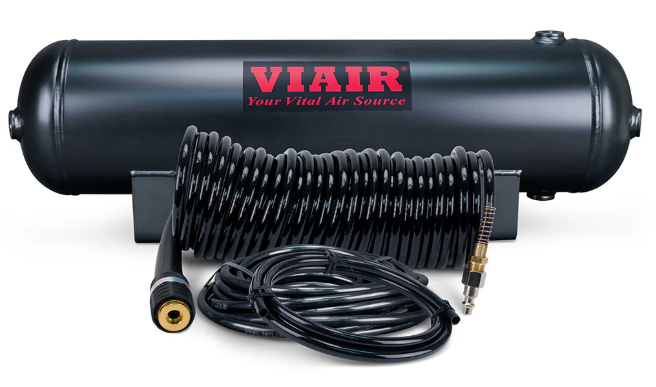

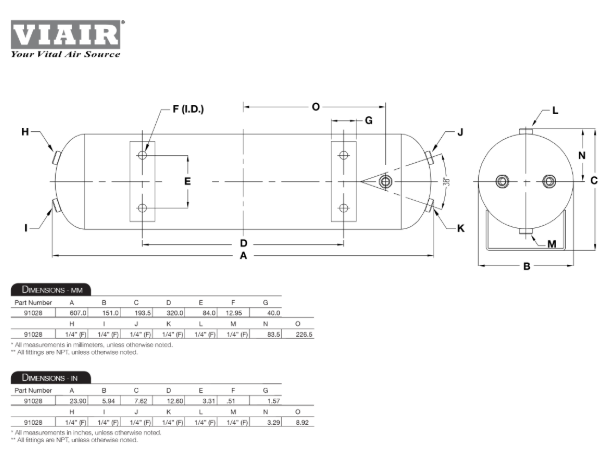

- Tank and Airline hoses
- Electrical
- Fittings
- Mounting Kit
- Inflation Gun and Gauge
Specifications
SPECS:
CFM: 2.24 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

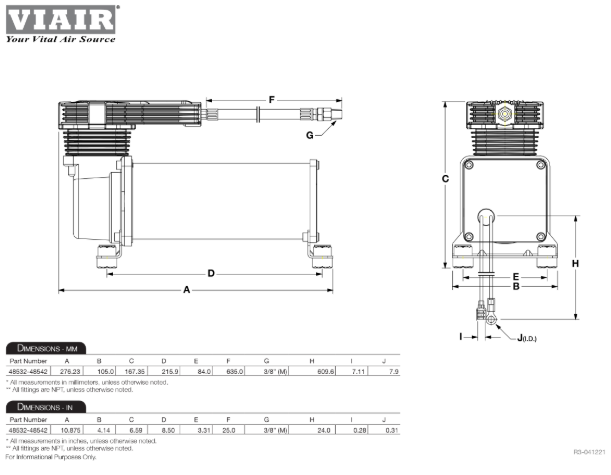

Dimensions: 10.63″L x 4.1″W x 6.44″H
Net Weight: 11.10 lbs.
FEATURES:
2.5 Gallon VIAIR Air Tank (200 PSI)
485C Stealth Black VIAIR Compressor w/ Thermal Overload Protector

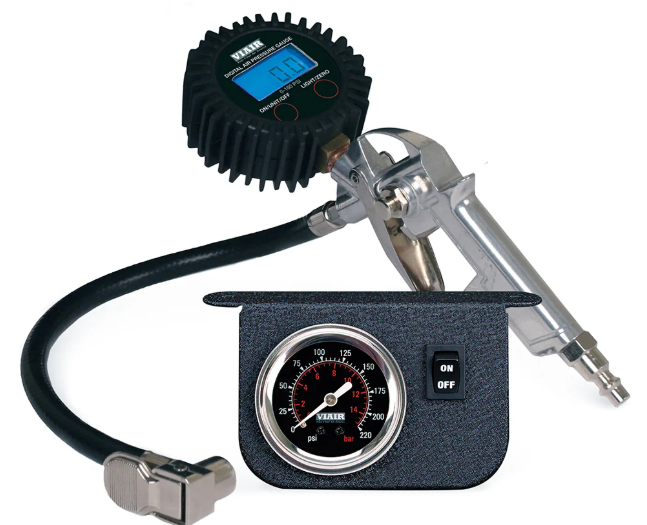

Digital Tire Inflation Gun with 180 PSI Gauge
30ft. Inside Braided Black Coil Hose with Quick Connects
1/4” NPT Quick Connect Stud (F)
1/4” NPT Quick Connect Coupler (F)
Dash Panel Gauge with ON/OFF Switch
Sealed Pressure Switch
(165 PSI on, 200 PSI off)
Reducer 1/8” NPT (F) to 1/4” NPT (M)
Reducer 3/8” NPT (F) to 1/4” NPT (M)
1/4” NPT 250 PSI Safety Valve
1/4” NPT Drain Cock

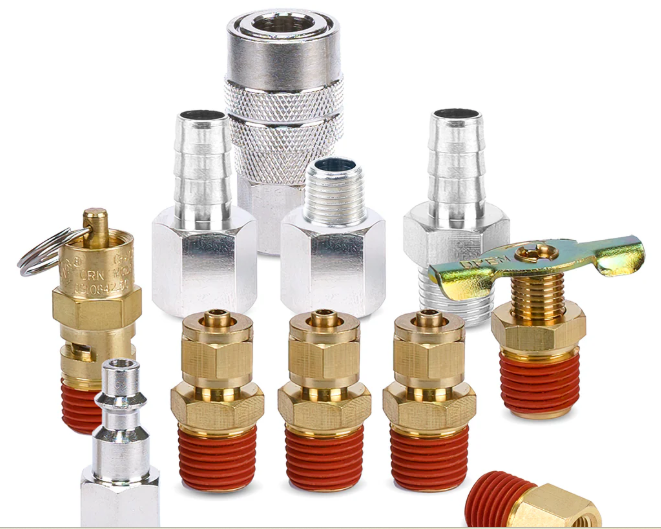

(3) 1/4” NPT Compression Fittings
4” Strip of Grommet Material

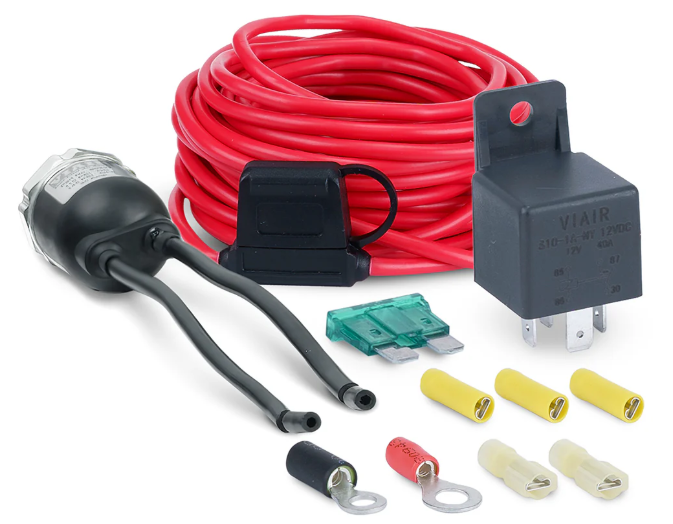

20ft. 12-Gauge Wire with Inline Fuse Holder
Electrical Connections
Accessory Airline
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.24 | 12 | 0 | 70.0 | 12 |
| 10 | 1.84 | 14 | 1.0 | 51.0 | 15 |
| 20 | 1.75 | 16 | 2.0 | 47.0 | 16 |
| 30 | 1.67 | 17 | 3.0 | 44.0 | 18 |
| 40 | 1.61 | 18 | 4.0 | 41.0 | 20 |
| 50 | 1.54 | 19 | 5.0 | 38.0 | 21 |
| 60 | 1.47 | 20 | 6.0 | 35.0 | 21 |
| 70 | 1.42 | 21 | 7.0 | 32.0 | 22 |
| 80 | 1.36 | 21 | 8.0 | 29.0 | 22 |
| 90 | 1.30 | 22 | 9.0 | 27.0 | 22 |
| 100 | 1.23 | 22 | 10.0 | 25.0 | 23 |
| 110 | 1.17 | 22 | 11.0 | 22.0 | 22 |
| 120 | 1.11 | 22 | 12.0 | 21.0 | 21 |
| 130 | 1.06 | 22 | 13.0 | 21.0 | 21 |
| 140 | 1.01 | 23 | 13.8 | 21.0 | 21 |
| 150 | 0.97 | 22 | |||
| 160 | 0.92 | 22 | |||
| 170 | 0.88 | 22 | |||
| 180 | 0.84 | 21 | |||
| 190 | 0.77 | 21 | |||
| 200 | 0.73 | 21 |
Fill Rates
TIRE FILL RATE
| 35” X 12.5 | FILL RATE |
|---|---|
| 0 to 30 PSI | 4 min. 17 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 27 sec. (± 05 sec.) |
| 37” X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 13 sec. (± 15 sec.) |
| 15 to 30 PSI | 1 min. 28 sec. (± 05 sec.) |
TANK FILL RATE
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
