VIAIR’s Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle compressors, a 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires.

What’s in the Box

Compressor





Tank and Airlines

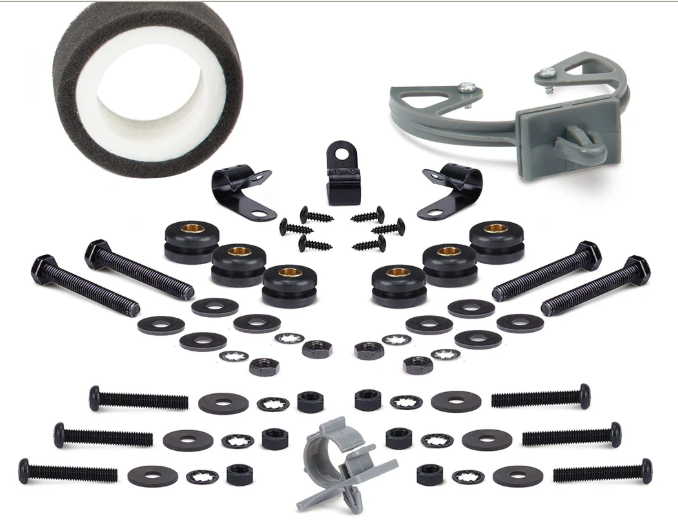

Mounting Kit





Electrical

Specifications

SPECS:

CFM: 1.80 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

FEATURES:

2.5 Gallon VIAIR Air Tank
450C VIAIR Compressor w/Thermal Overload Protector
35ft. Coil Hose with Tire Chuck
Dash Panel Gauge with ON/OFF Switch
Pressure Switch with Relay (110 PSI on, 145 PSI off)
Reducer: 1/8” (F) to 1/4” (M)
1/4” Quick Connect Stud (F)
1/4” Quick Connect Coupler (F)
1/4” 175 PSI Safety Valve
1/4” Drain Cock
(3) 1/4” Compression Fittings
20ft. 12-Gauge Wire with Inline Fuse Holder
4” Strip of Continuous Grommet Material
Accessory Airline
Electrical Connections

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.80 12 0 51.0 12
10 1.75 14 1.0 47.6 15
20 1.60 16 2.0 43.3 17
30 1.52 17 3.0 38.2 18
40 1.39 18 4.0 34.0 19
50 1.27 19 5.0 30.5 20
60 1.18 19 6.0 28.1 21
70 1.09 20 7.0 26.4 22
80 1.04 20 8.0 25.0 23
90 0.97 21 9.0 23.0 22
100 0.94 22 10.0 21.0 21
110 0.90 23
120 0.86 23
130 0.81 22
140 0.76 21
150 0.72 20


Fill Rates

TIRE FILL RATE
35″ X 12.5″ FILL RATE
0 to 30 PSI 3 min. 30 sec. (± 15 sec.)
15 to 30 PSI 1 min. 34 sec. (± 10 sec.)
37″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 21 sec. (± 15 sec.)
15 to 30 PSI 1 min. 51 sec. (± 10 sec.)
RV TIRES 275/80R22.5 FILL RATE
80 to 90 PSI 49 sec. (± 05 sec.)
90 to 110 PSI 5 min. 07 sec. (± 10 sec.)
110 to 130 PSI 6 min. 19 sec. (± 15 sec.)

TANK FILL RATE
2.5 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 02 sec. (± 10 sec.)
110 to 145 PSI 59 sec. (± 05 sec.)



Product Resources

User Manual

Wiring Diagram

Plumbing Diagram

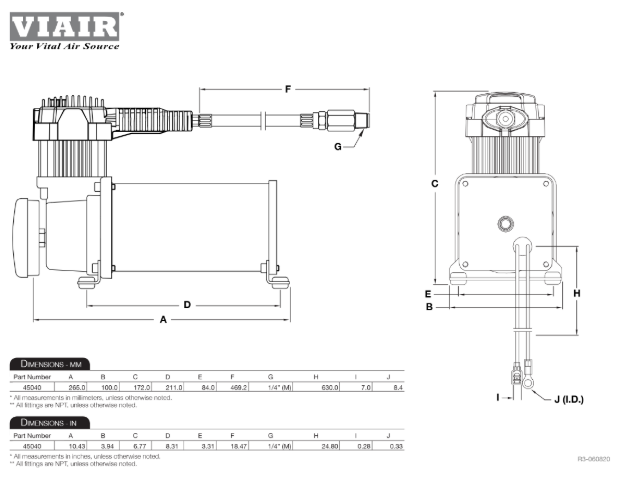

Dimensional Drawing
