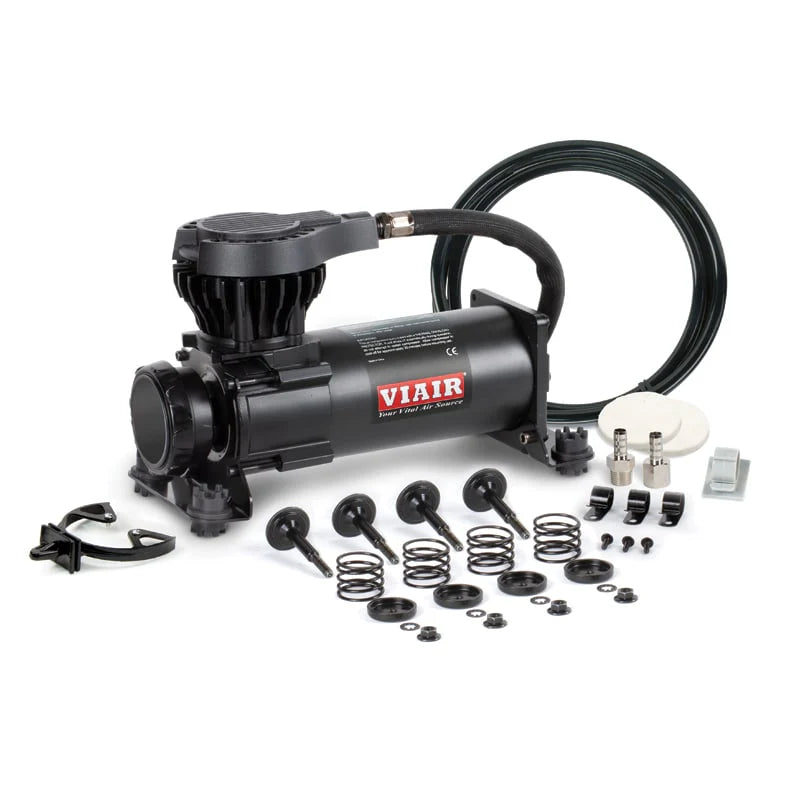

VIAIR | 310 Stealth Series Compressor (31030)

Description

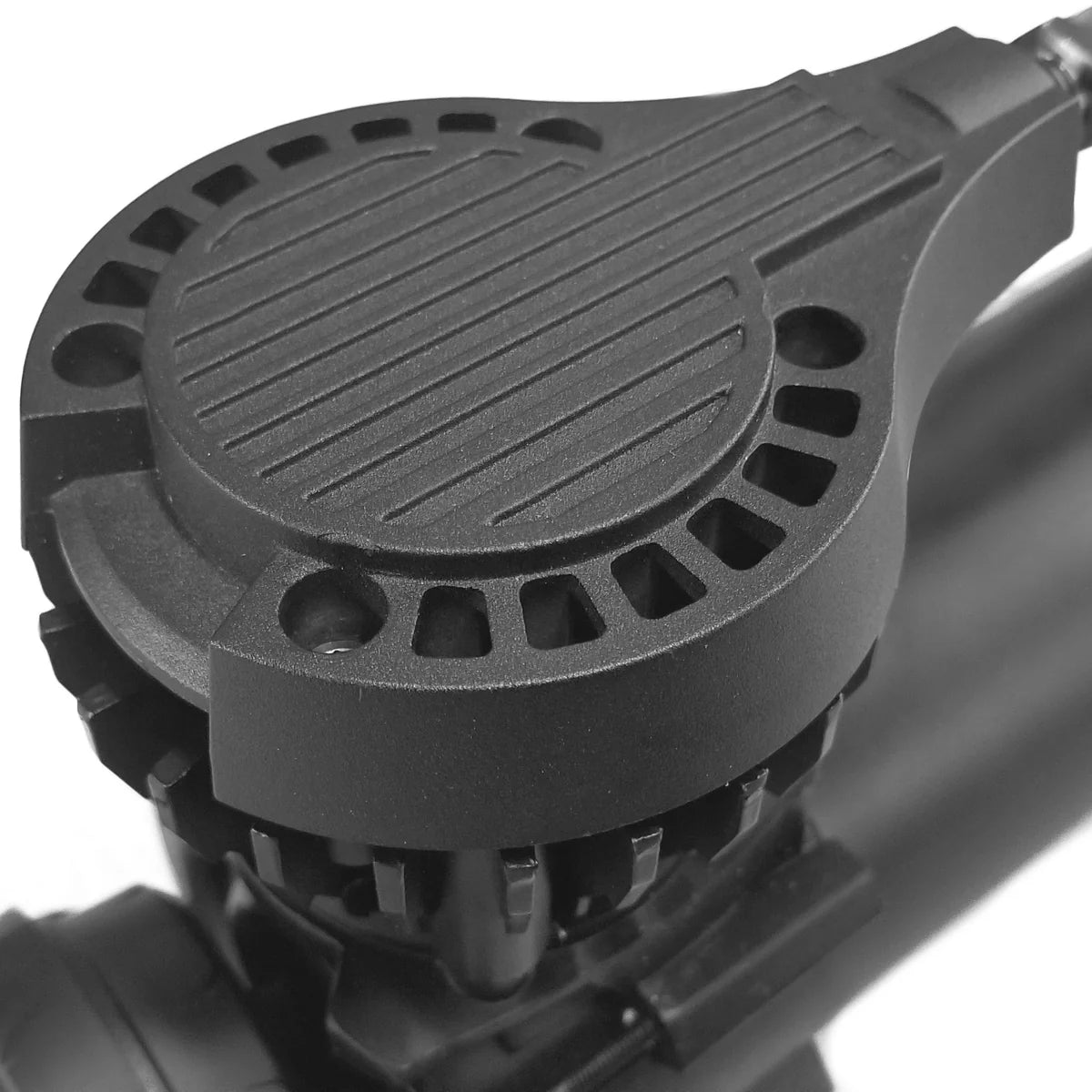

The all-new 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors. Additionally, the 310 Stealth-Series compressors are RoHS/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves that eliminate the possibility of high amperage restarts.

Features

• Thermal Overload Protector
• Check Valve

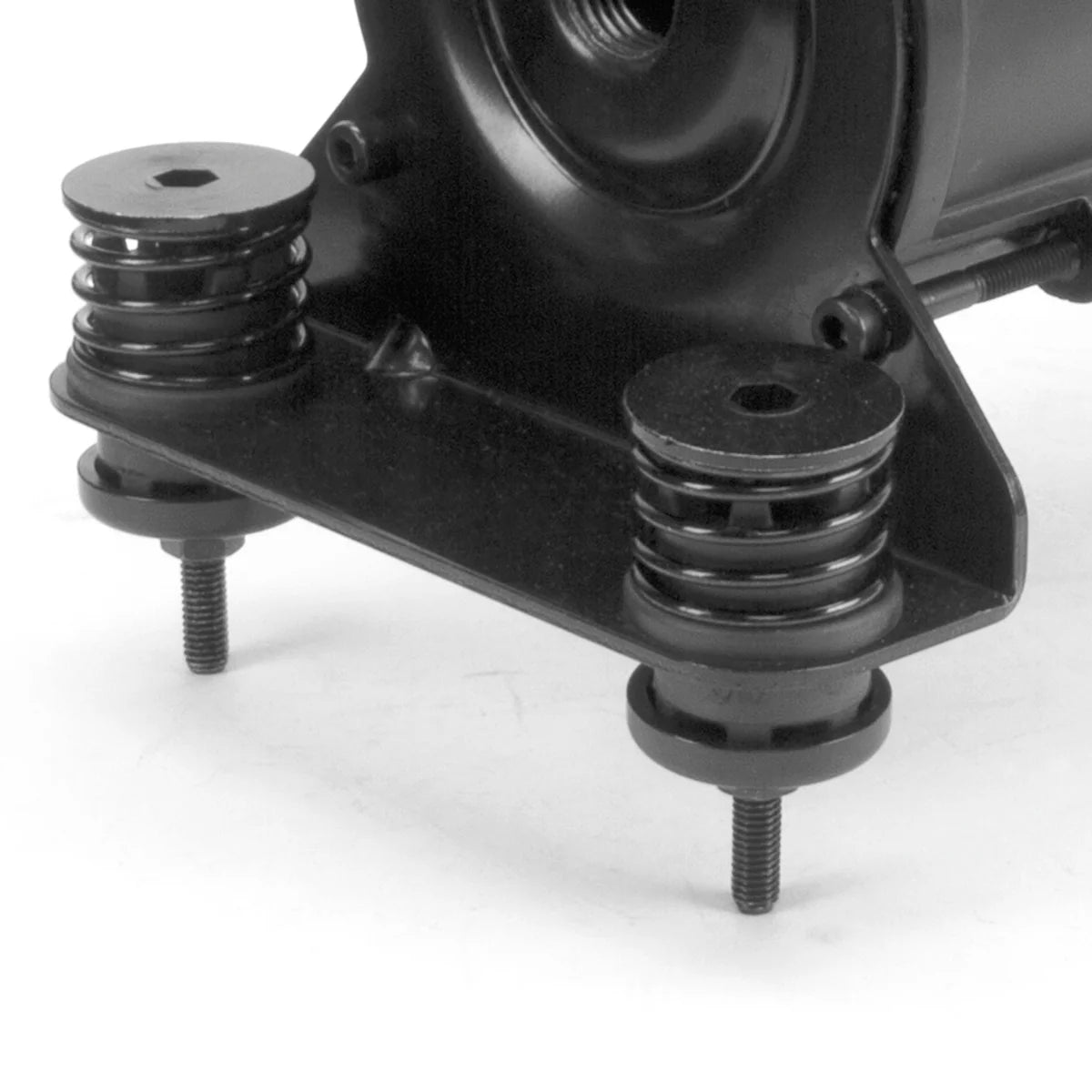

• Spring Loaded Vibration Isolating Feet
• Mounting Hardware

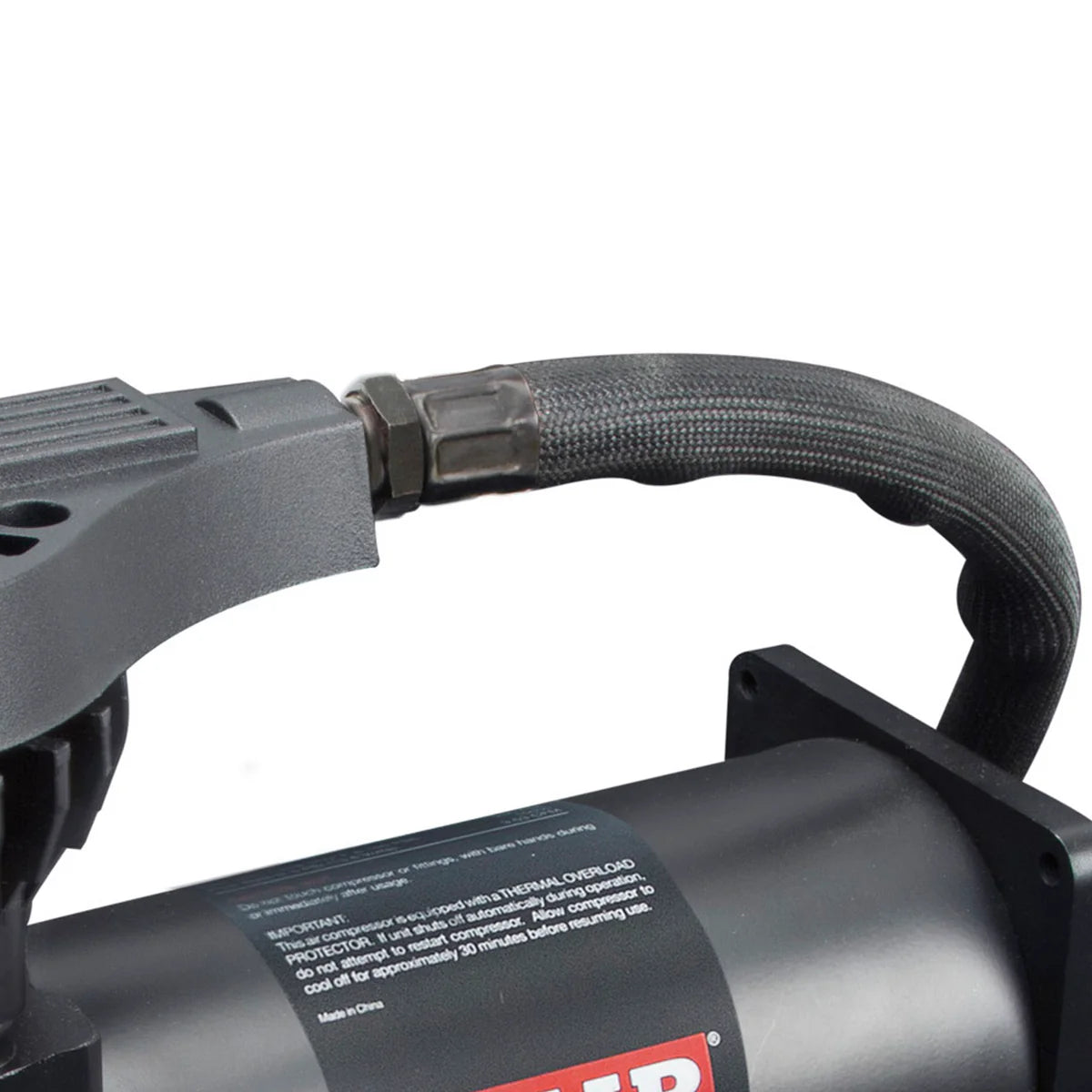

• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter

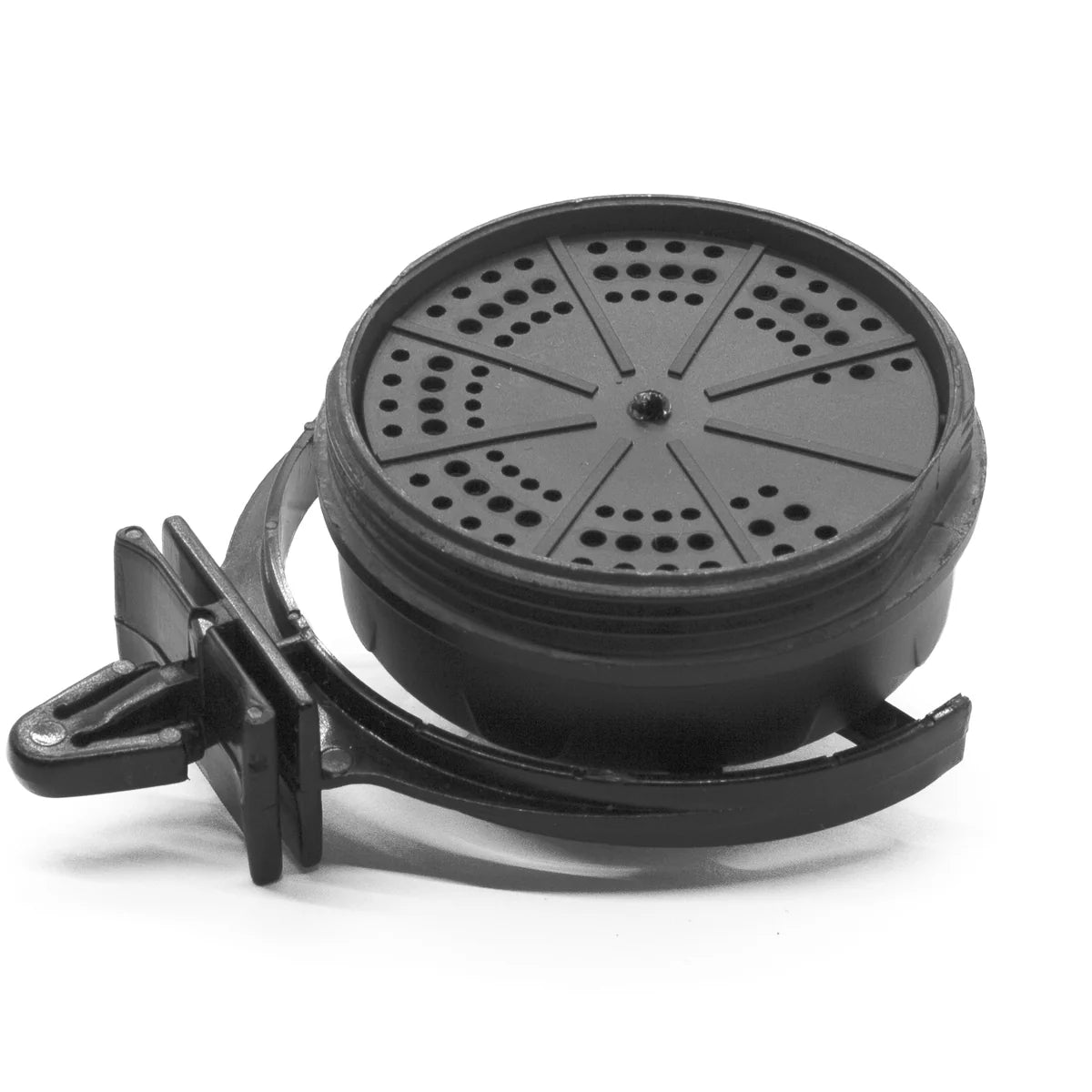

• Remote Mount 6-Stage Air Filter/Muffler Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

Specifications

• PN: 31030
• CFM: 1.46 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.7″L x 4.4″W x 7.3″H
• Net Weight: 9.75 lbs.

(31030)
