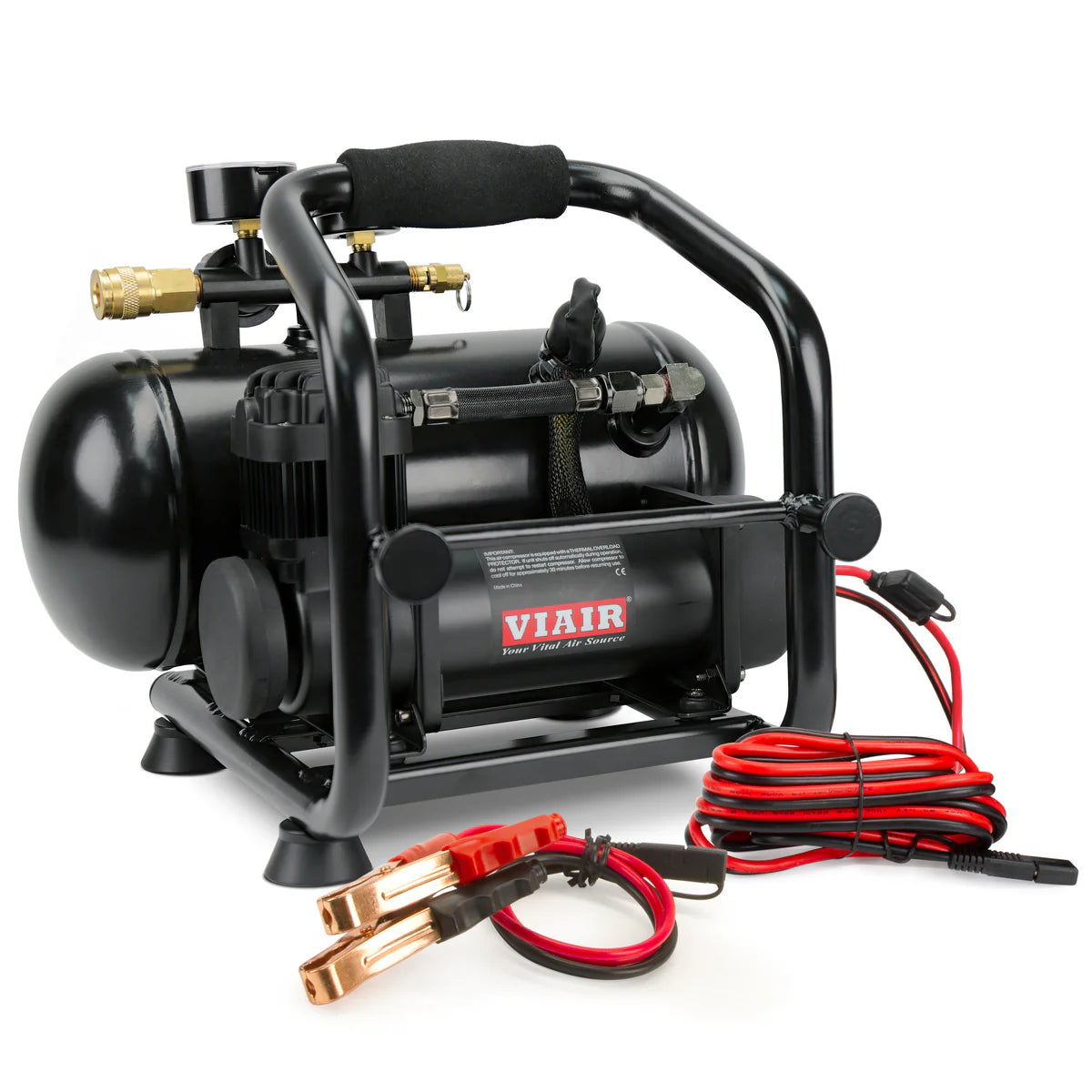

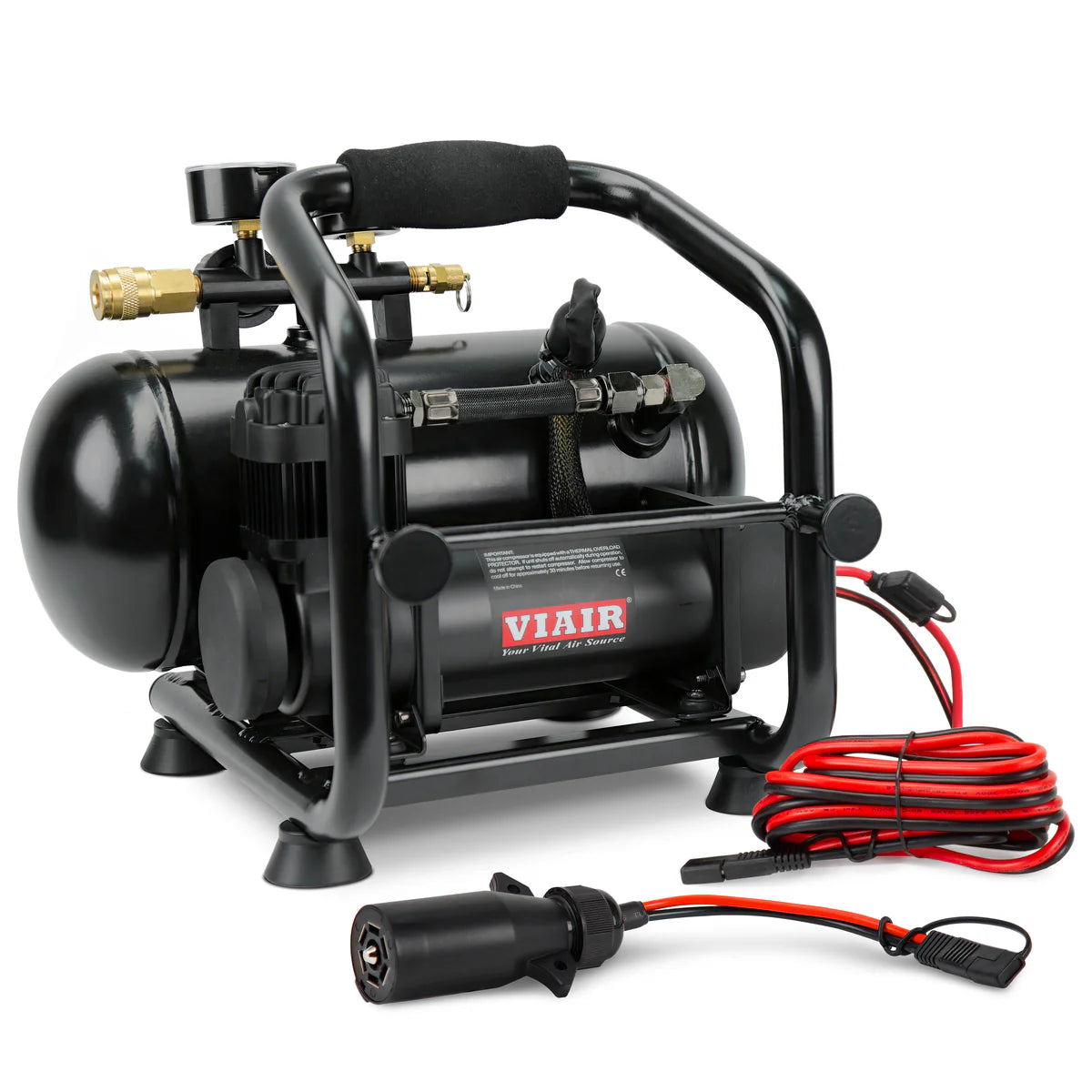

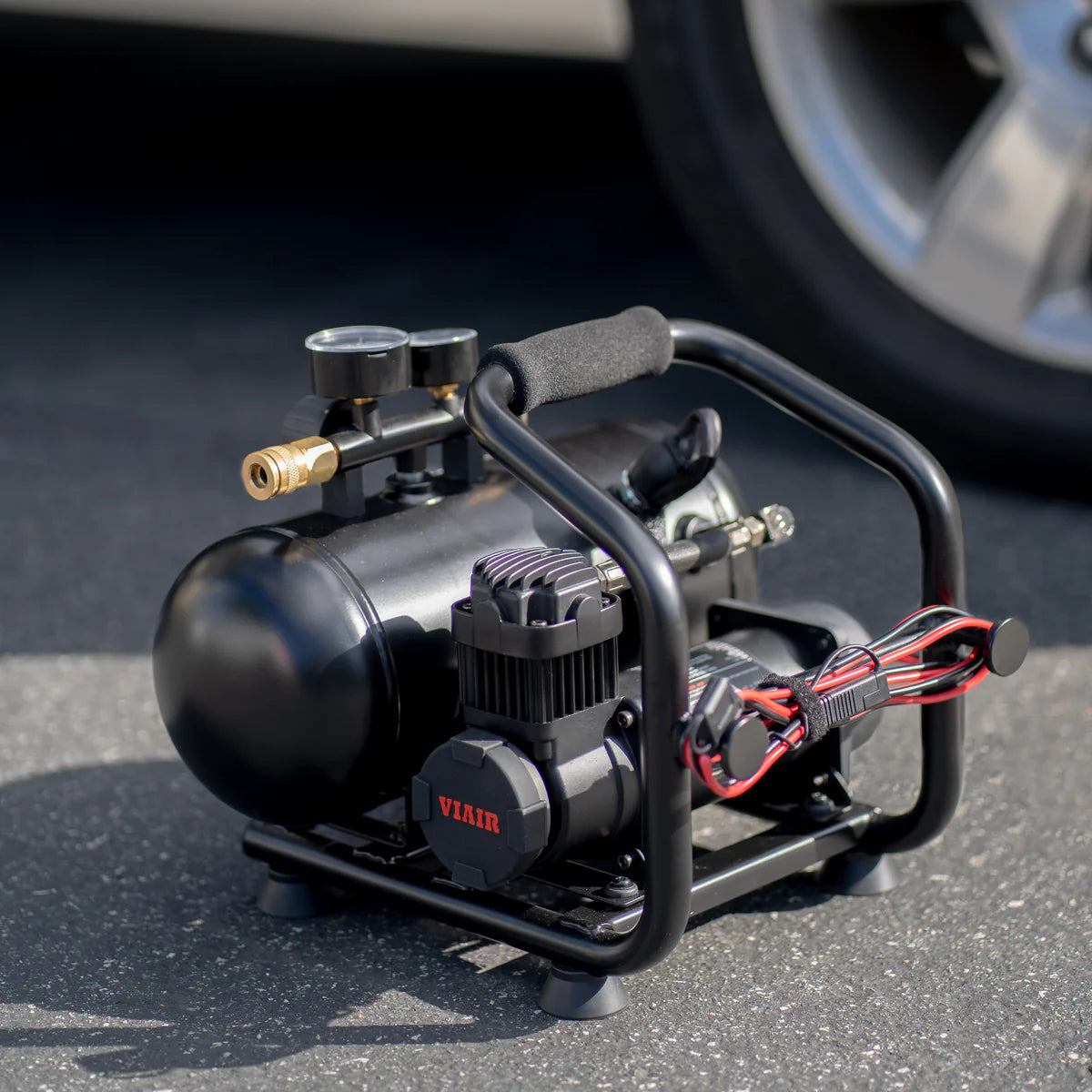

VIAIR | 200 PSI Plug-N-Play On-Demand Portable (38034)

Description

The 200 PSI Plug-N-Play On-Demand Portable is the optimal solution for any enthusiast who needs tire inflation and performs multiple pneumatic tasks on the go. Available with battery clamps or 7-Way Trailer Plug attachments to connect to your preferred power source. Pair this kit with any of our Tire Inflation Kits.

Features

• 1.5 Gallon Air Tank (200 PSI)
• 380C Stealth Black Compressor w/ Thermal Overload Protector
• Sealed Pressure Switch
  (165 PSI on, 200 PSI off)
• 0-200 PSI Pressure Regulator
• 200 PSI Tank Pressure Gauge
• 2-Pin SAE Connector to Alligator Clamp (P/N 38034) or 7-Way Power Access (P/N 38035)
• 1/4” Drain Cock
• 1/4” Auto Quick Connect Coupler
• Air Filter
• Safety Valve (250 PSI)

Specifications

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. 12V Amp Draw: 23-Amps
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 14”L x 14″W x 12”H
• Net Weight: 23.25 lbs.

(38034)
