VIAIR | Bulkhead Union (92860-SU)

Description

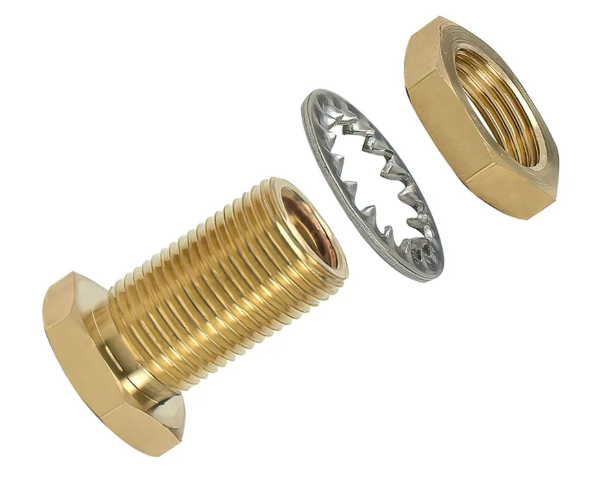

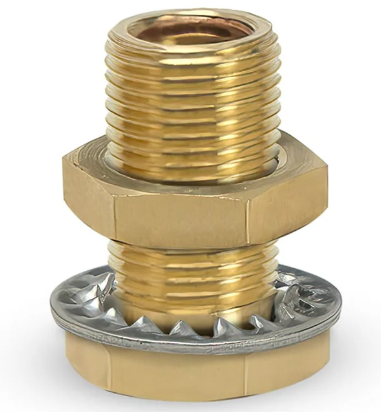

VIAIR Bulkhead Unions provide two opposing ports with threaded nuts allowing for installation through a panel or partition. Compatible with VIAIR Pro Series Air Relocation Kit Bracket.

Specifications

FEATURES:

Brass
1/4” NPT Female.
Overall Length: 1 ¼” (31.75mm)
O.D. Diameter: 3/8” (9.525 mm)
Lock Washer and Nut

Product Resources

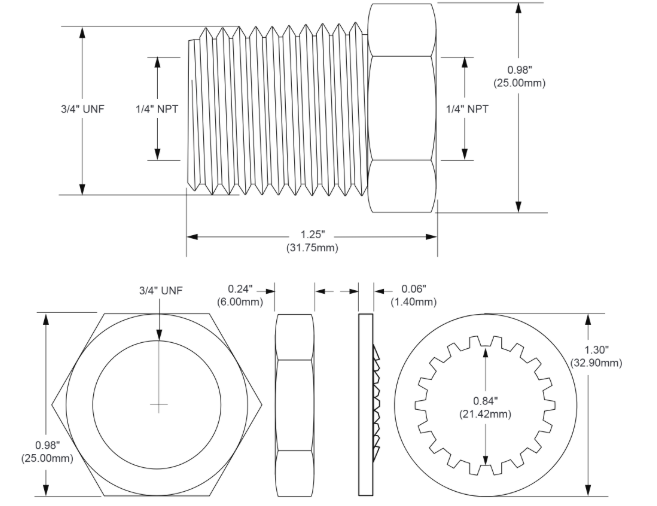

Dimensional Drawing

Dimensional Drawing
