VIAIR | Automatic Quick Connect Coupler

Please call to configure options:

Configuration:

• 1/4" (M)
• 1/4" (F)
• 3/8" (M)
• 3/8" (F)

VIAIR Logo?:

• Yes
• No

Quantity:

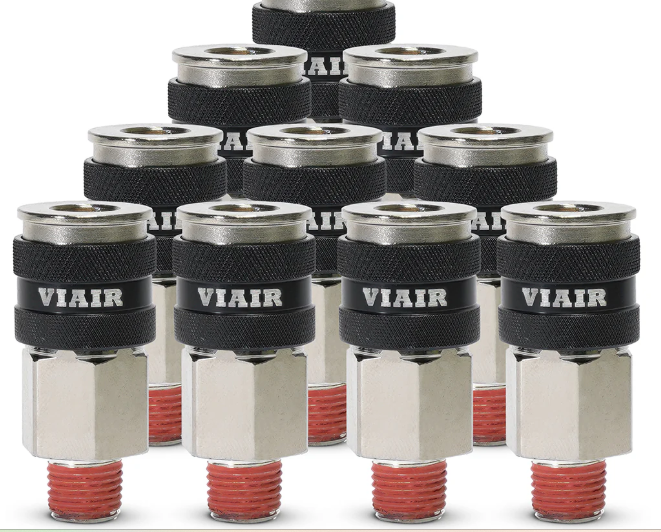

• 1 PCS
• 2 PCS
• 4 PCS
• 10 PCS

Description

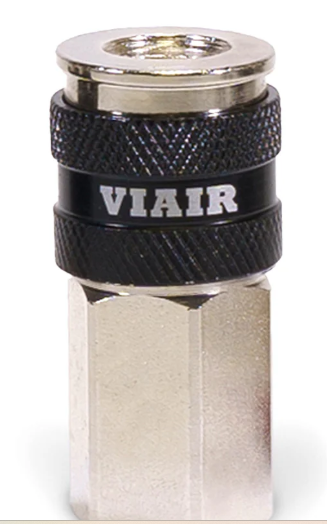

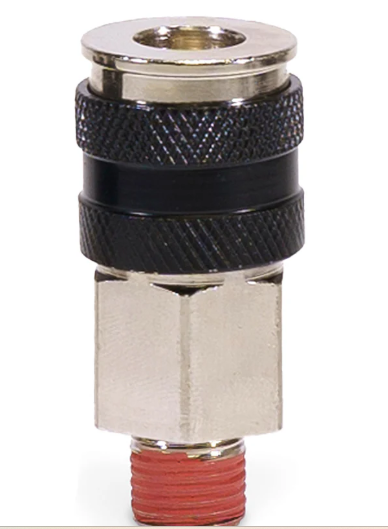

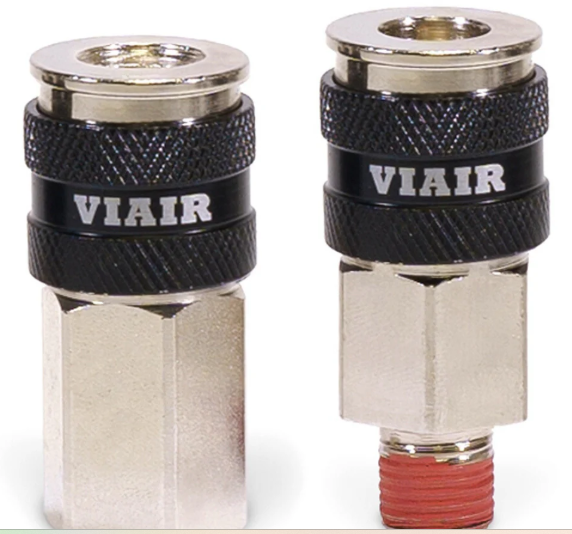

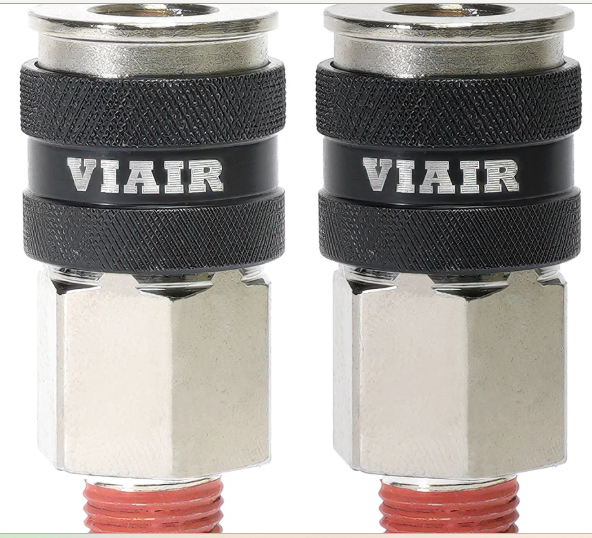

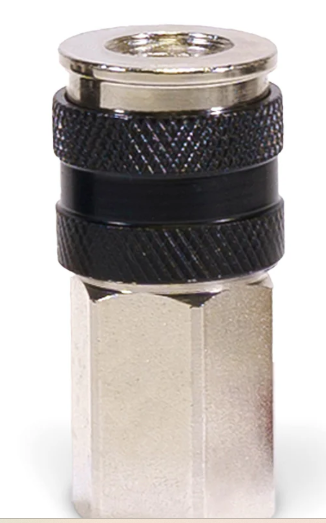

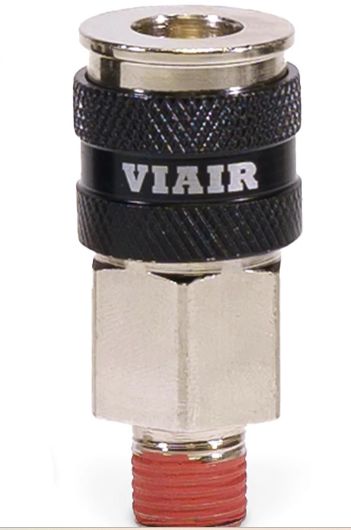

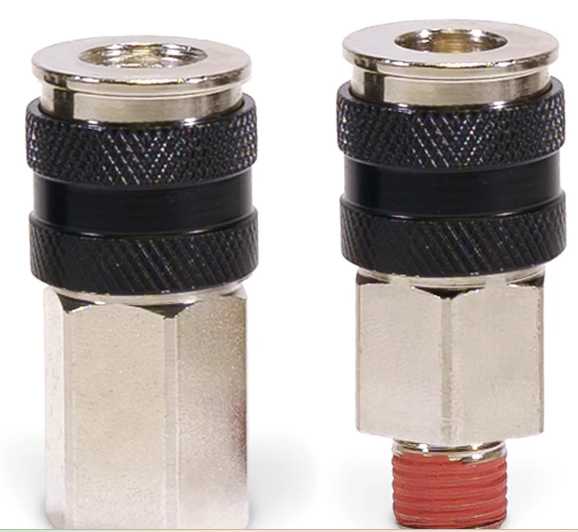

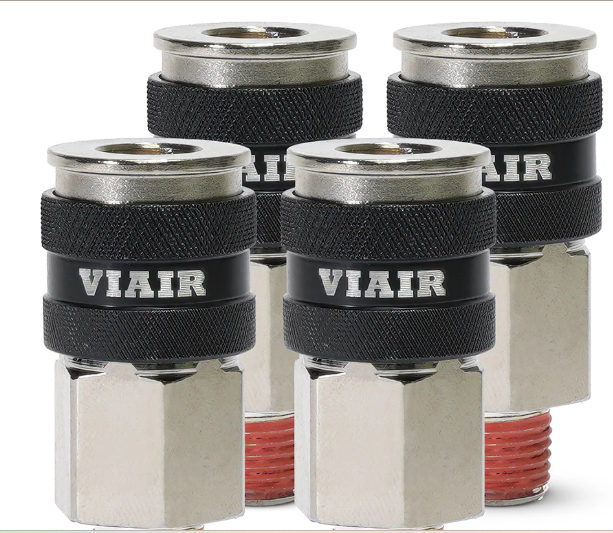

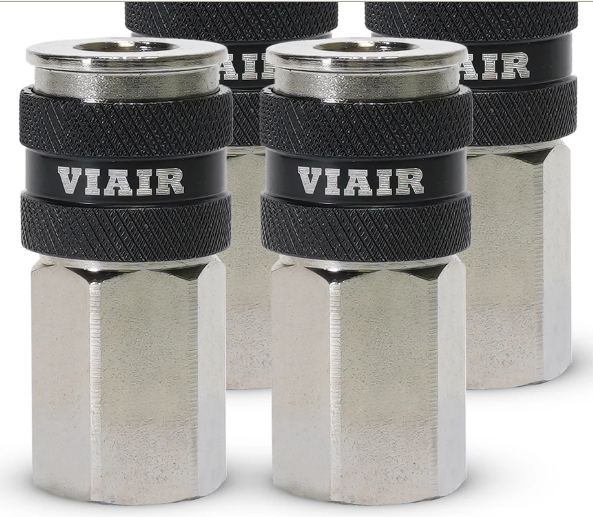

Our new Automatic Quick Connect couplers provide excellent flow and are set up for super easy engagement (4-bearings). Designed to fit Industrial, Automotive, Tru-Flate and ARO interchange. Extremely durable as they are Made of High-Quality Steel - Nickel Plated. All Couplers are RoHS compliant and offer a working pressure of 218PSI and Max Pressure of 290PSI. Offered in plain or logo and 1/4" & 3/8" NPT (M) and (F) applications

Specifications

FEATURES AND SPECS

Heavy-Duty steel construction
Leak-free NPT threads
4-ball bearings
Push-to-lock engagement with quick release
Tested to 100,000 cycles
Salt spray tested for 48h
218 PSI working pressure
290 PSI max pressure
ED-coated collar
Temperature range -20C to 80C

Product Resources

Line Drawings
