VIAIR | 96C Industrial-Grade Compressor

$164.75

Voltage:

Variant

Quantity:

Description

The 96 IG compressor offers a light-duty solution for small air requirements. Designed to fill no larger than a 1.0-gallon air tank, it features an adjustable Omega bracket for easy mounting in tight spaces, an air filter relocation kit to allow unrestricted airflow, and an inline check valve that protects against high amperage restart. The 96C-IG compressors are CE Certified, RoHS/Reach Compliant and feature an IP54 protection rating.

See Resources Section below for wiring Diagram Options

Specifications

SPECS:

12-Volt /24-Volt
Permanent Magnetic Motor
Duty Cycle: 10% @ 100 PSI
Max. Working Pressure: 130 PSI
Max. Air Tank Size: 1.0 Gallon
Max. 12V Amp Draw: 13-Amps
Max. 24V Amp Draw: 8-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

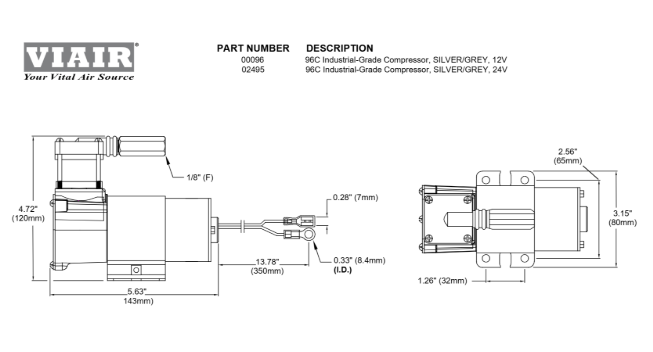

Dimensions: 5.6″L x 2.2″W x 4.4″H
Net Weight: 2.25 lbs.

FEATURES:

Check Valve
Vibration Isolators
Mounting Hardware
Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.53	7	0	43.5	7
10	1.00	9	1.0	28.0	9
20	0.95	10	2.0	25.5	11
30	0.90	11	3.0	22.7	11
40	0.85	11	4.0	20.7	12
50	0.77	12	5.0	18.3	12
60	0.72	12	6.0	16.3	12
70	0.65	12	7.0	13.7	12
80	0.60	12	8.0	11.7	12
90	0.54	12	9.0	10.0	11
100	0.48	12
110	0.44	12
120	0.39	12
130	0.35	11

24-Volt Compressor - Supply Voltage 28 Volts

PSI	CFM	A	BAR	LPM	A
0	1.27	4	0	36.0	4
10	1.09	5	1.0	28.5	5
20	1.03	5	2.0	26.5	5
30	0.96	5	3.0	24.7	6
40	0.90	6	4.0	21.7	6
50	0.83	6	5.0	19.7	7
60	0.76	6	6.0	17.0	7
70	0.70	6	7.0	14.3	7
80	0.63	7	8.0	11.7	7
90	0.56	7	9.0	8.7	6
100	0.51	7
110	0.42	7
120	0.35	7
130	0.31	6

Fill Rates

12-Volt Compresssor

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 08 sec. (± 05 sec.)
85 to 105 PSI	16 sec. (± 03 sec.)
0 to 120 PSI	1 min. 23 sec. (± 05 sec.)
90 to 120 PSI	27 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 20 sec. (± 10 sec.)
85 to 105 PSI	35 sec. (± 05 sec.)
0 to 120 PSI	3 min. 04 sec. (± 10 sec.)
90 to 120 PSI	54 sec. (± 05 sec.)

24-Volt Compressor

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	50 sec. (± 05 sec.)
85 to 105 PSI	15 sec. (± 03 sec.)
0 to 120 PSI	1 min. 03 sec. (± 05 sec.)
90 to 120 PSI	20 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 40 sec. (± 10 sec.)
85 to 105 PSI	30 sec. (± 05 sec.)
0 to 120 PSI	2 min. 05 sec. (± 10 sec.)
90 to 120 PSI	45 sec. (± 05 sec.)

Product Resources
