Description

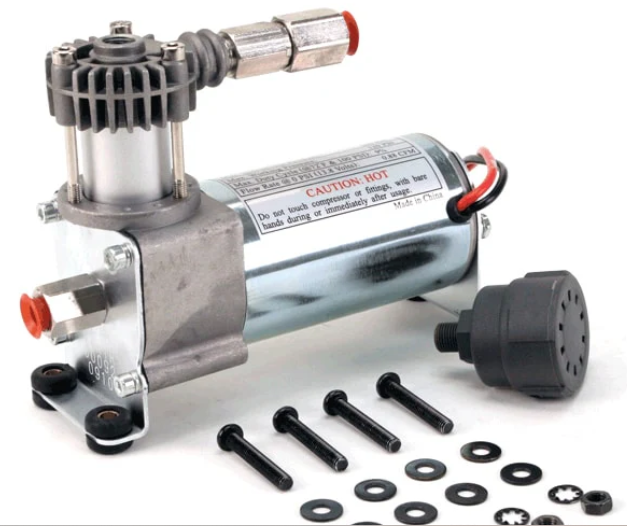

The 92C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, features a removable air filter, check valve and comes with mounting hardware.
See Resources Section below for wiring Diagram Options
Specifications
SPECS:
CFM: 1.03 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 9% @ 100 PSI
Max. Working Pressure: 120 PSI
Max. Air Tank Size: 1.0 Gallon
Max. Amp Draw: 10-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

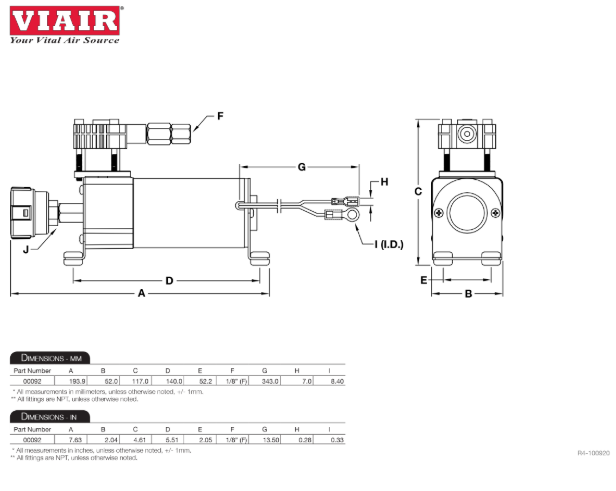

Dimensions: 7.6″L x 2.0″W x 4.6″H
Net Weight: 2.45lbs.
FEATURES:
Check Valve
Vibration Isolators
Mounting Hardware
Direct Mount Air Filter Assembly
Installation Instructions
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.03 | 7 | 0 | 29.0 | 7 |
| 10 | 0.71 | 8 | 1.0 | 19.0 | 8 |
| 20 | 0.67 | 8 | 2.0 | 18.0 | 9 |
| 30 | 0.64 | 9 | 3.0 | 16.5 | 9 |
| 40 | 0.60 | 9 | 4.0 | 15.0 | 10 |
| 50 | 0.57 | 9 | 5.0 | 13.5 | 10 |
| 60 | 0.53 | 10 | 6.0 | 12.5 | 10 |
| 70 | 0.48 | 10 | 7.0 | 11.0 | 10 |
| 80 | 0.45 | 10 | 8.0 | 10.0 | 9 |
| 90 | 0.43 | 10 | |||
| 100 | 0.39 | 9 | |||
| 110 | 0.36 | 9 | |||
| 120 | 0.34 | 9 |
Fill Rates
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 08 sec. (± 05 sec.) |
| 85 to 105 PSI | 16 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 23 sec. (± 05 sec.) |
| 90 to 120 PSI | 27 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 20 sec. (± 10 sec.) |
| 85 to 105 PSI | 35 sec. (± 05 sec.) |
| 0 to 120 PSI | 3 min. 04 sec. (± 10 sec.) |
| 90 to 120 PSI | 54 sec. (± 05 sec.) |
