VIAIR | 65C Compressor (00065)
SELECT OPTIONS
Description

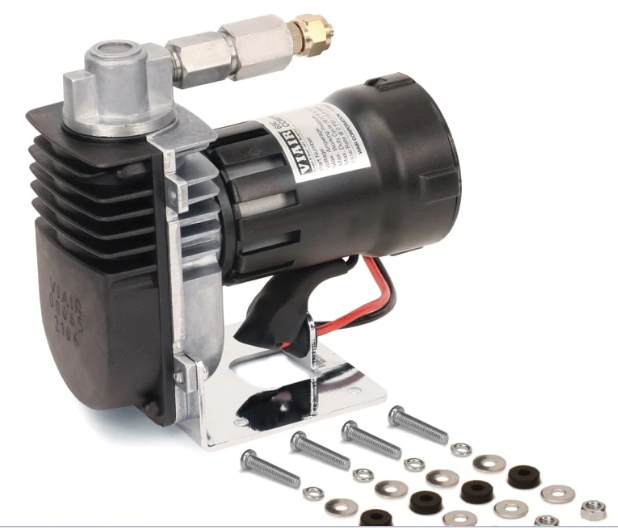

The 65C is a geared, light-duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, has a max working pressure of 90 PSI and comes equipped with a check valve. Mounting hardware is included.
See Resources Section below for wiring Diagram Options
Specifications
SPECS:
CFM: 1.15 @ 0 PSI
12-Volt
Gear Driven Motor
Duty Cycle: 15% @ 90 PSI
Max. Working Pressure: 90 PSI
Max. Air Tank Size: 1.0 Gallon
Max. Amp Draw: 10-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

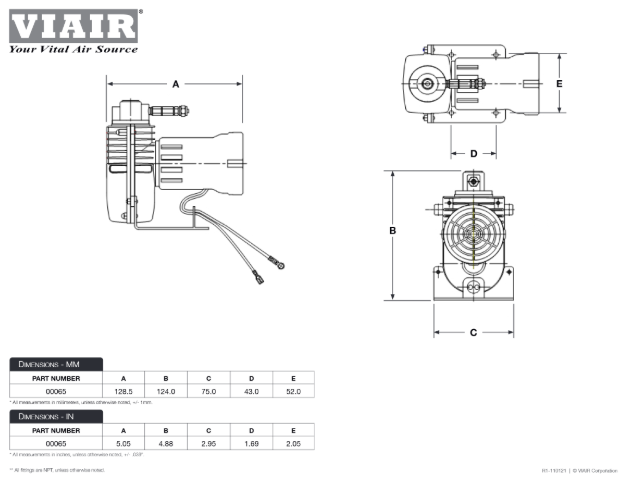

Dimensions: 5″L x 2.9″W x 4.8″H
Net Weight: 1.6 lbs.
FEATURES:
Check Valve
Compression Fitting for 1/4″ Airline (Pre-installed)
Vibration Isolators
Mounting Hardware
Installation Instructions
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.15 | 6 | 0 | 33.0 | 6 |
| 10 | 0.59 | 7 | 1.0 | 17.0 | 7 |
| 20 | 0.55 | 8 | 2.0 | 15.0 | 8 |
| 30 | 0.52 | 8 | 3.0 | 13.0 | 9 |
| 40 | 0.48 | 9 | 4.0 | 12.0 | 9 |
| 50 | 0.45 | 9 | 5.0 | 10.0 | 9 |
| 60 | 0.41 | 9 | |||
| 70 | 0.38 | 9 | |||
| 80 | 0.33 | 10 |
Fill Rates
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 80 PSI | 50 sec. (± 05 sec.) |
| 45 to 80 PSI | 23 sec. (± 03 sec.) |
| 55 to 80 PSI | 19 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 80 PSI | 1 min. 28 sec. (± 05 sec.) |
| 45 to 80 PSI | 36 sec. (± 03 sec.) |
| 55 to 80 PSI | 33 sec. (± 05 sec.) |
