VIAIR | 485C Gen 2 Compressor

$499.95

Color::

Variant

Quantity:

Description

The 485C Gen 2 air compressors deliver game-changing performance, delivering 1-hour of performance at 200 PSI before needing rest. This unit is the premium choice for industrial and automotive applications.

See Resources Section below for wiring Diagram Options

Specifications

SPECS:

CFM: 2.24 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Combined Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

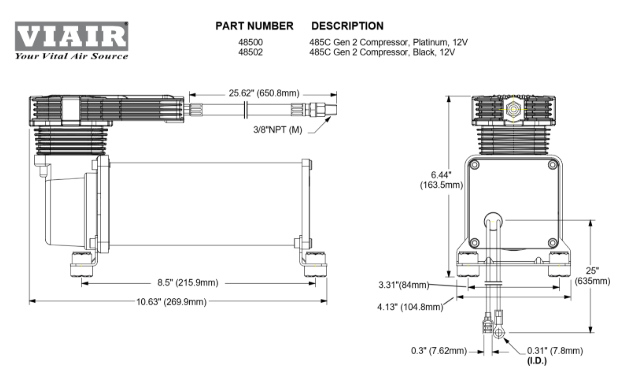

Dimensions: 10.63″L x 4.1″W x 6.44″H
Net Weight: 11.10 lbs.

FEATURES:

Thermal Overload Protector

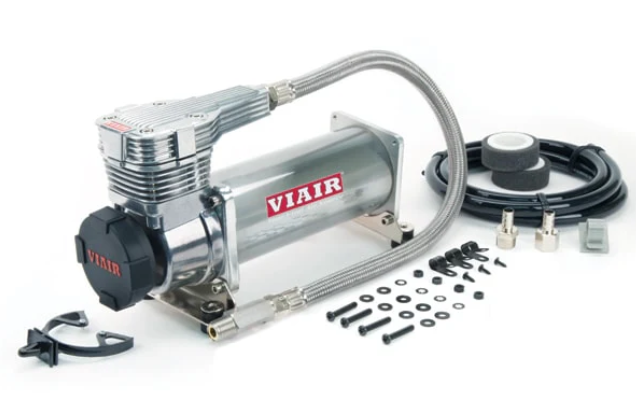

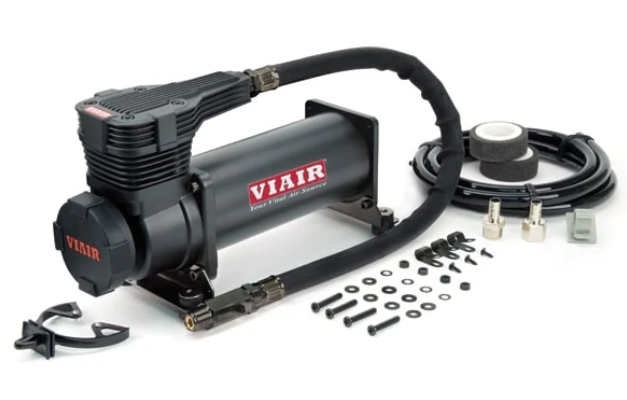

485C (Platinum or Stealth Black) Compressor
Air Filter Assembly
VIAIR Removable Filter Cover
Replacement Air Filter Elements
Remote Mount Filter Assembly
Leader Hose Clip
Air Line Clip with Included Hardware
Mounting Hardware
Stainless Steel Braided Leader Hose with Inline Check Valve
Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	2.24	12	0	70.0	12
10	1.84	14	1.0	51.0	15
20	1.75	16	2.0	47.0	16
30	1.67	17	3.0	44.0	18
40	1.61	18	4.0	41.0	20
50	1.54	19	5.0	38.0	21
60	1.47	20	6.0	35.0	21
70	1.42	21	7.0	32.0	22
80	1.36	21	8.0	29.0	22
90	1.30	22	9.0	27.0	22
100	1.23	22	10.0	25.0	23
110	1.17	22	11.0	22.0	22
120	1.11	22	12.0	21.0	21
130	1.06	22	13.0	18.0	20
140	1.01	23	13.8	17.0	19
150	0.97	22
160	0.92	22
170	0.88	22
180	0.84	21
190	0.77	19
200	0.73	18

Fill Rates

2.5 GALLON TANK	FILL RATE
0 to 200 PSI	4 min. 50 sec. (± 10 sec.)
165 to 200 PSI	1 min. 15 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 200 PSI	9 min. 45 sec. (± 15 sec.)
165 to 200 PSI	2 min. 25 sec. (± 05 sec.)
