VIAIR | 480C Dual Performance Value Pack
Color:
SELECT OPTIONS
Color:
Color:
Description

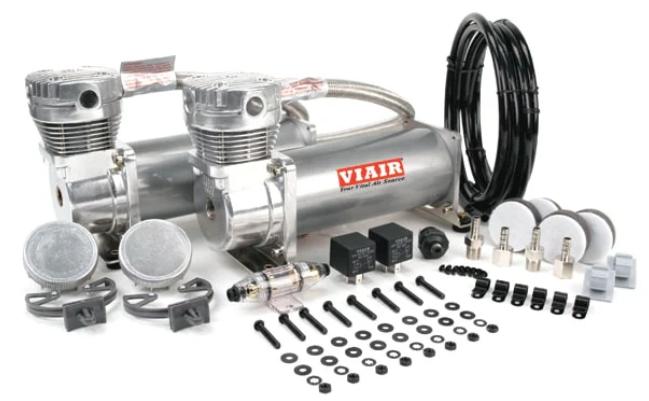

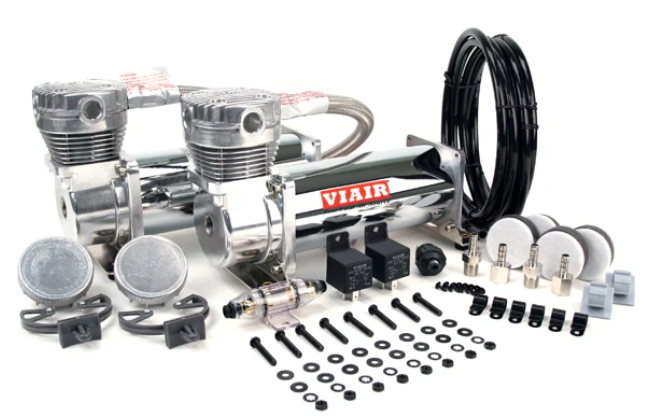

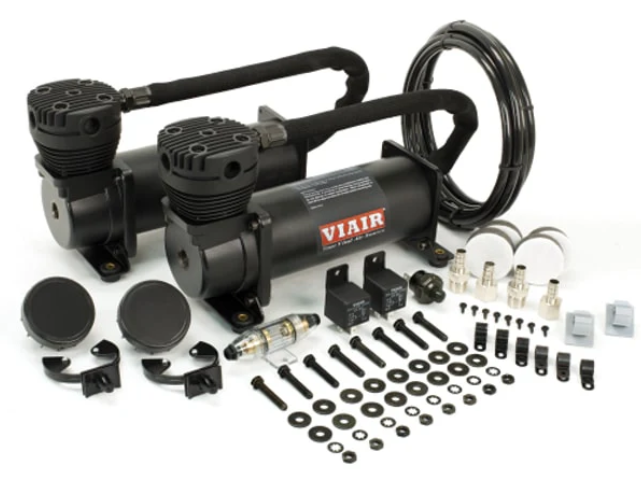

Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Pewter, Chrome, or Stealth Black air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.
Specifications
SPECS:
CFM: 3.53 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

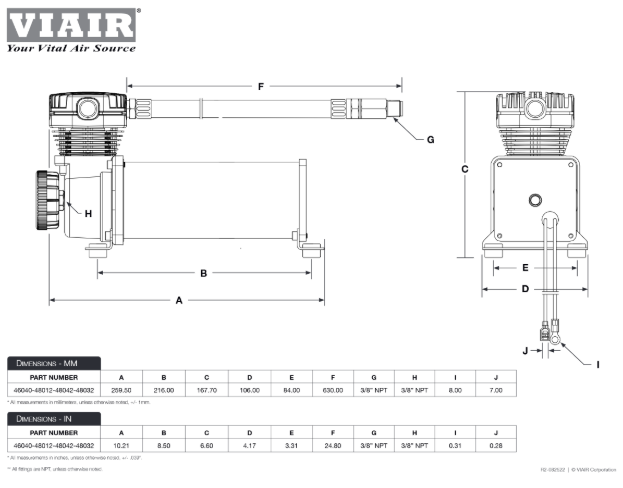

Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
Net Weight: 22.10 lbs.
FEATURES:
(2) 480C (Pewter, Chrome, or Stealth Black) Air Compressors
w/Thermal Overload Protectors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 3.53 | 25 | 0 | 100.0 | 25 |
| 10 | 3.10 | 28 | 1.0 | 86.5 | 29 |
| 20 | 3.00 | 31 | 2.0 | 81.4 | 33 |
| 30 | 2.86 | 33 | 3.0 | 76.8 | 35 |
| 40 | 2.75 | 35 | 4.0 | 72.7 | 37 |
| 50 | 2.64 | 36 | 5.0 | 67.6 | 39 |
| 60 | 2.55 | 37 | 6.0 | 61.2 | 41 |
| 70 | 2.43 | 39 | 7.0 | 55.3 | 42 |
| 80 | 2.26 | 40 | 8.0 | 50.1 | 44 |
| 90 | 2.12 | 41 | 9.0 | 45.0 | 44 |
| 100 | 1.97 | 42 | 10.0 | 40.6 | 43 |
| 110 | 1.84 | 43 | 11.0 | 36.8 | 41 |
| 120 | 1.72 | 44 | 12.0 | 32.4 | 40 |
| 130 | 1.59 | 44 | 13.0 | 28.0 | 37 |
| 140 | 1.49 | 43 | 14.0 | 24.8 | 36 |
| 150 | 1.38 | 42 | |||
| 160 | 1.29 | 41 | |||
| 170 | 1.18 | 40 | |||
| 180 | 1.09 | 39 | |||
| 190 | 0.97 | 37 | |||
| 200 | 0.90 | 36 |
Fill Rates
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 2 min. 22 sec. (± 10 sec.) |
| 165 to 200 PSI | 38 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 5 min. 02 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 25 sec. (± 05 sec.) |
| 10.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI | 3 min. 10 sec. (± 10 sec.) |
