VIAIR | 450P Automatic Portable Compressor
Color:
SELECT OPTIONS
Color:
Color:
Description

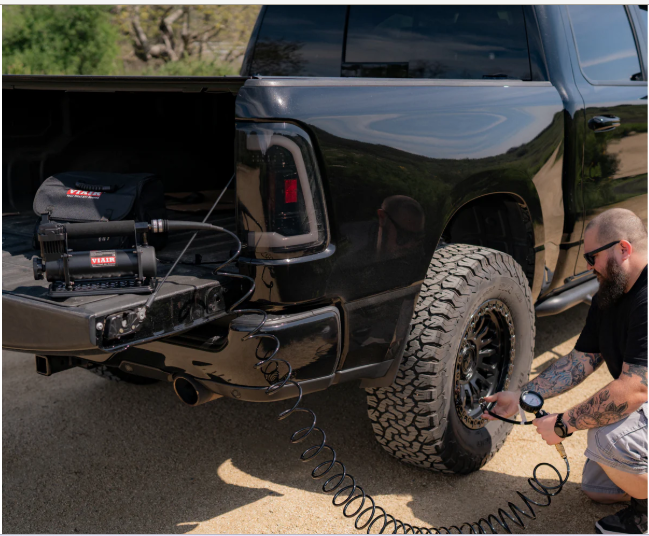

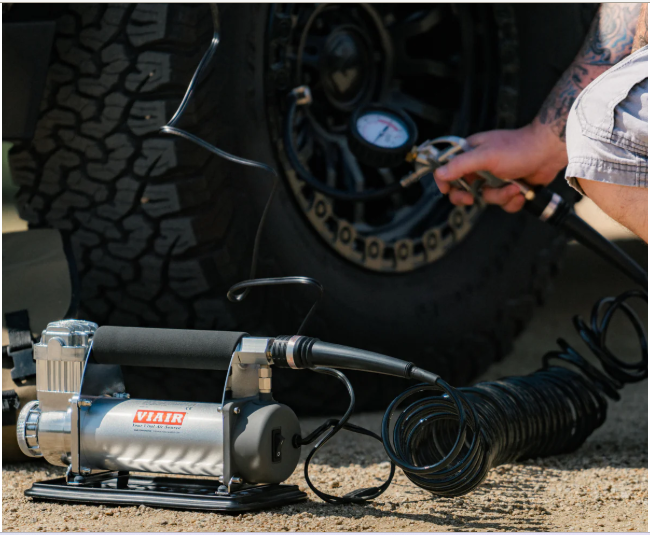

VIAIR’s 450P Automatic Portable Compressor makes filling your car, truck, SUV, or off-road vehicle quick and easy. With 1 hour of runtime and automatic shutoff, move from tire to tire and check pressure mid-fill without having to flip a switch. High pressure and 100% duty cycle mean you can service multiple commercial vehicles including tractor-trailers and 18-wheelers with ease.
What’s in the Box
Compressor
Coil Hose
Inflation Gun
Inflation Tips Kit
Carry Bag
Specifications
SPECS:
CFM: 1.80 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -4°F
Dimensions: 12.4″L x 5.8″W x 7.5″H
Net Weight: 13.05 lbs.
Power Cord Length: 8ft.
Air Hose Length: 30ft.
FEATURES:
Thermal Overload Protector
Vibration-Resistant Diamond-Plate Sand Tray
Quick Connect Extension Air Hose with Heat Shield
Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
Deluxe Dual Compartment Carry Bag
40-Amp Inline Fuse Holder
Dual Battery Clamps
3pc. Inflation Tips Kit
Presta Valve Adaptor
PLEASE NOTE:
The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 450P-Automatic does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 450P-Automatic does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
| 100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 | 20 |
Fill Rates
| 31″ X 10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 4 min. 05 sec. (±10 sec.) |
| 15 to 30 PSI | 2 min. 10 sec. (±05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 30 sec. (±15 sec.) |
| 15 to 30 PSI | 2 min. 50 sec. (±05 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 6 min. 55 sec. (± 15 sec.) |
| 15 to 30 PSI | 3 min. 30 sec. (± 10 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 7 min. 56 sec. (± 15 sec.) |
| 15 to 30 PSI | 4 min. 09 sec. (± 10 sec.) |
