VIAIR | 450H Hardmount Compressor (45042)
VIAIR | 450H Hardmount Compressor (45042)

VIAIR | 450H Hardmount Compressor (45042)

$384.95
Quantity:

Description

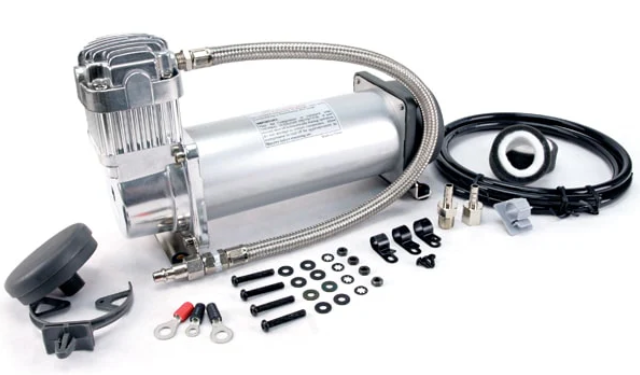

The 450H Hard-Mount comes with a built-in, moisture resistant ON/OFF power switch. It features a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

Specifications

SPECS:

CFM: 1.80 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 23-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions: 11.63″L x 3.94″W x 6.75″H
Net Weight: 11.05 lbs.

FEATURES:

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
1/4″ Quick Connect Stud
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-VOLT Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.80 12 0 51.0 12
10 1.75 14 1.0 47.6 15
20 1.60 16 2.0 43.3 17
30 1.52 15 3.0 38.2 18
40 1.39 18 4.0 34.0 19
50 1.27 19 5.0 30.5 20
60 1.18 19 6.0 28.1 21
70 1.09 20 7.0 26.4 22
80 1.04 20 8.0 25.0 23
90 0.97 22 9.0 23.0 22
100 0.94 22 10.0 21.0 21
110 0.90 23
120 0.86 23
130 0.81 22
140 0.76 21
150 0.72 20



Fill Rates

33″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 30 sec. (± 10 sec.)
15 to 30 PSI 2 min. 50 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 6 min. 55 sec. (± 15 sec.)
15 to 30 PSI 3 min. 30 sec. (± 10 sec.)
37″ X 12.5″ FILL RATE
0 to 30 PSI 7 min. 56 sec. (± 15 sec.)
15 to 30 PSI 4 min. 09 sec. (± 10 sec.)


Product Resources

User Manual

Wiring Diagram

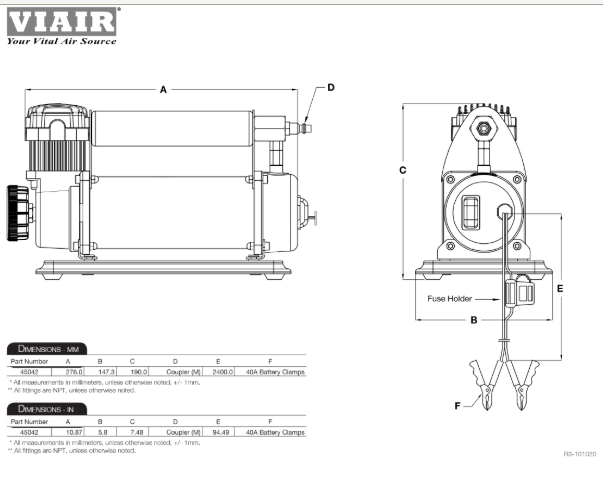

Dimensional Drawing
