Description
The 450 IG air compressors are heavy-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation. They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. Available in 12V or 24V.
See Resources Section below for wiring Diagram Options
Specifications
SPECS:
CFM: 1.80 @ 0 PSI (12V) 2.20 @ 0 PSI (24V)
12-Volt / 24-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 23-Amps
Max. 24V Amp Draw: 13-Amps
Ingress Protection Rating: IP67
Max. Ambient Temp: +158°F
Min. Ambient Temp: -40°F

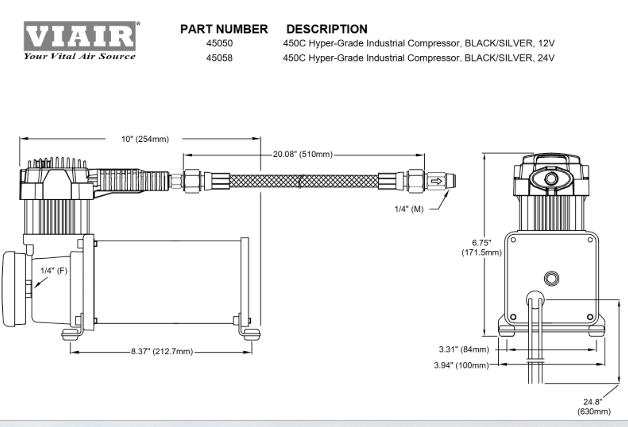

Dimensions: 11.25″L x 4″W x 6.75″H
Net Weight: 10.40 lbs.

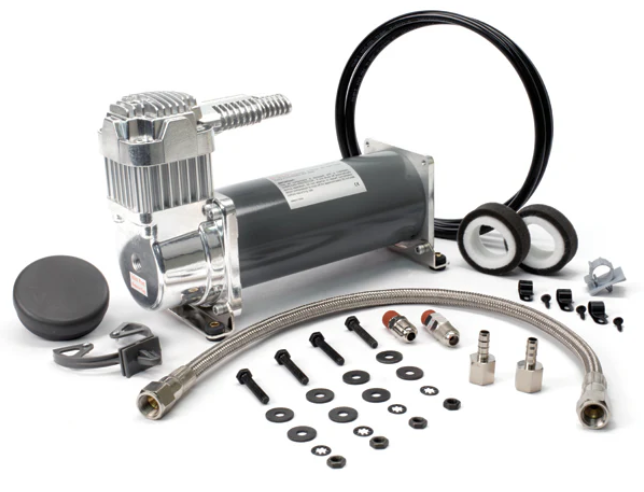

FEATURES:
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
| 100 | 0.9 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 | 21 |
24-Volt Compressor - Supply Voltage 28 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.20 | 8 | 0 | 62.3 | 8 |
| 10 | 1.98 | 9 | 1.0 | 54.4 | 10 |
| 20 | 1.86 | 11 | 2.0 | 50.6 | 11 |
| 30 | 1.78 | 11 | 3.0 | 47.0 | 11 |
| 40 | 1.69 | 11 | 4.0 | 43.4 | 12 |
| 50 | 1.59 | 12 | 5.0 | 40.6 | 12 |
| 60 | 1.52 | 12 | 6.0 | 37.7 | 12 |
| 70 | 1.45 | 12 | 7.0 | 35.0 | 13 |
| 80 | 1.38 | 12 | 8.0 | 32.0 | 12 |
| 90 | 1.31 | 12 | 9.0 | 28.5 | 12 |
| 100 | 1.24 | 13 | 10.0 | 26.0 | 12 |
| 110 | 1.17 | 13 | |||
| 120 | 1.09 | 12 | |||
| 130 | 1.01 | 12 | |||
| 140 | 0.95 | 12 | |||
| 150 | 0.88 | 12 |
Fill Rates
12-Volt Compressor
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 28 sec. (± 05 sec.) |
| 0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 59 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
| 85 to 105 PSI | 58 sec. (± 05 sec.) |
| 0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 11 sec. (± 10 sec.) |
24-Volt Compressor
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 25 sec. (± 05 sec.) |
| 0 to 145 PSI | 2 min. 40 sec. (± 10 sec.) |
| 110 to 145 PSI | 50 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 3 min. 20 sec. (± 10 sec.) |
| 85 to 105 PSI | 50 sec. (± 05 sec.) |
| 0 to 145 PSI | 5 min. 15 sec. (± 15 sec.) |
| 110 to 145 PSI | 1 min. 45 sec. (± 10 sec.) |
