Description

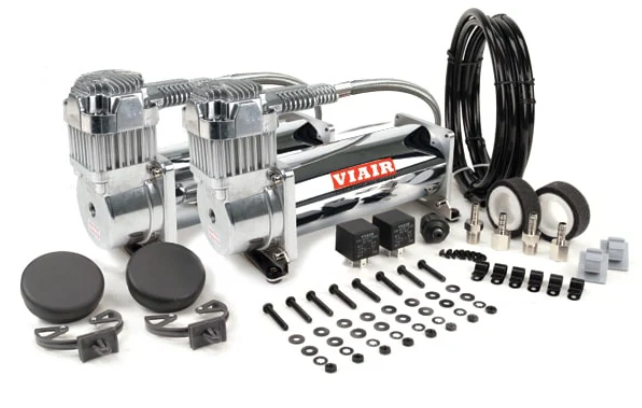

VIAIR’s 450C Dual Performance Value Pack is the “workhorse” of our Dual Performance Value Packs product line. With a 100% duty cycle and up to 150 PSI, the 450C Dual kit provides high performance for any air suspension kit, industrial applications, air horns or off-road mobile pneumatic needs. The 450C Dual Performance Pack kit features two VIAIR 450C Silver or Chrome air compressors, two heavy duty 40-amp relays, an 110 PSI cut-on, 145 PSI cut-off pressure switch and remote mount filter assemblies with mounting hardware.

Specifications

SPECS:

CFM: 3.28 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions: 10.6″L x 4″W x 6.87″H (Each Unit)
Net Weight: 21.60 lbs.

FEATURES:

(2) 450C (Chrome or Silver) Air Compressors
w/Thermal Overload Protectors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 3.28 28 0 93.0 28
10 3.04 29 1.0 83.0 30
20 2.79 32 2.0 75.4 34
30 2.65 34 3.0 71.0 37
40 2.54 36 4.0 66.6 40
50 2.44 38 5.0 61.0 41
60 2.33 40 6.0 56.0 42
70 2.19 41 7.0 52.0 44
80 2.05 42 8.0 47.0 43
90 1.94 43 9.0 42.3 42
100 1.85 44 10.0 37.5 41
110 1.72 44
120 1.62 43
130 1.50 42
140 1.38 41
150 1.27 41



Fill Rates

2.0 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 13 sec. (± 05 sec.)
110 to 145 PSI 23 sec. (± 03 sec.)
2.5 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 30 sec. (± 05 sec.)
110 to 145 PSI 31 sec. (± 03 sec.)
5.0 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 10 sec. (± 10 sec.)
110 to 145 PSI 1 min. 05 sec. (± 05 sec.)



Product Resources

User Manual

Wiring Diagram

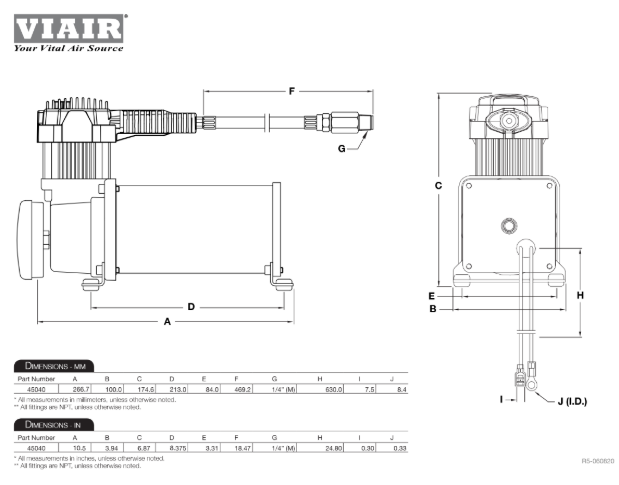

Dimensional Drawing
