VIAIR | 444C Compressor Dual Performance Value Pack
Color:
SELECT OPTIONS
Color:
Color:
Description
VIAIR’s 444C compressor dual system offers unmatched durability, power, and performance for air suspension and other demanding applications. Reaching 100% duty cycle at 100 PSI, the 444C is a robust, powerful solution for air suspension systems, horns, truck and SUV tires, and more.
What’s in the Box
Compressors
Air Filters
Mounting Hardware
Specifications
SPECS:
CFM: 3.53 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

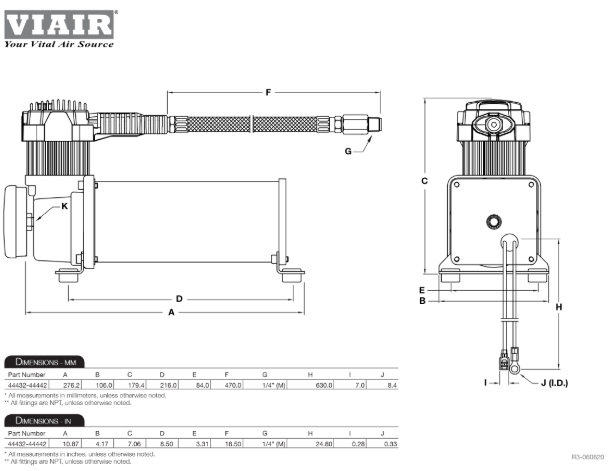

Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)
Net Weight: 21.60 lbs.
FEATURES:

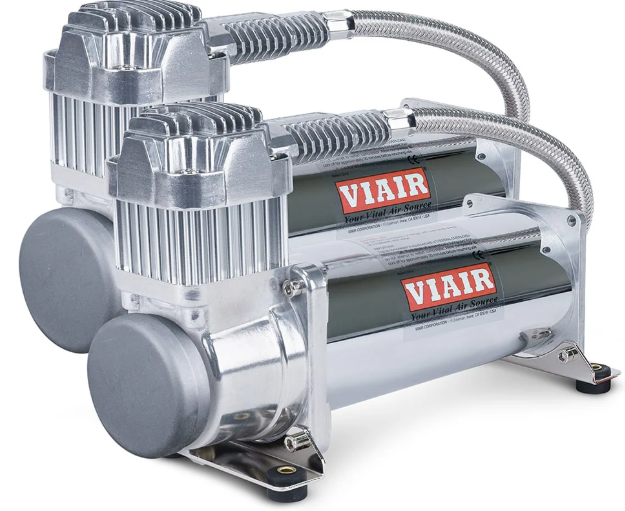

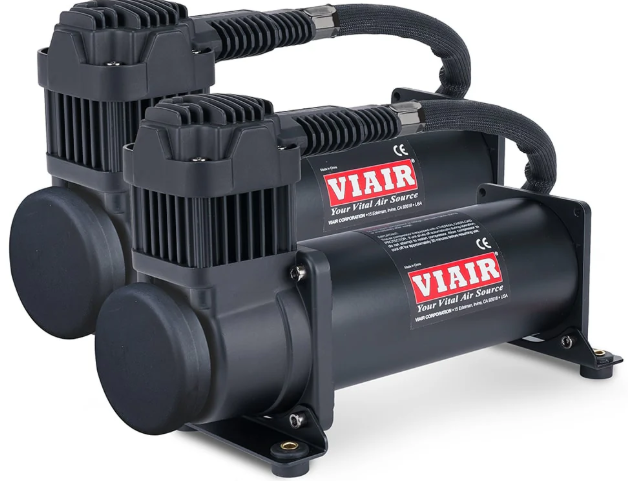

(2) 444C (Chrome or Stealth Black) Air Compressors
w/Thermal Overload Protectors
Intercooler Head (Patents Pending)
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
(6) Airline Clips with Included Hardware
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 3.53 | 25 | 0 | 100.0 | 25 |
| 10 | 3.25 | 27 | 1.0 | 88.5 | 29 |
| 20 | 2.97 | 31 | 2.0 | 81.3 | 33 |
| 30 | 2.86 | 33 | 3.0 | 75.6 | 34 |
| 40 | 2.72 | 34 | 4.0 | 70.6 | 36 |
| 50 | 2.58 | 35 | 5.0 | 65.5 | 37 |
| 60 | 2.47 | 36 | 6.0 | 59.0 | 39 |
| 70 | 2.35 | 37 | 7.0 | 53.1 | 40 |
| 80 | 2.19 | 38 | 8.0 | 47.7 | 39 |
| 90 | 2.03 | 39 | 9.0 | 43.2 | 39 |
| 100 | 1.90 | 40 | 10.0 | 38.8 | 38 |
| 110 | 1.74 | 40 | 11.0 | 34.7 | 37 |
| 120 | 1.65 | 39 | 12.0 | 30.6 | 36 |
| 130 | 1.53 | 39 | 13.0 | 25.8 | 34 |
| 140 | 1.41 | 38 | 14.0 | 23.8 | 33 |
| 150 | 1.32 | 38 | |||
| 160 | 1.22 | 37 | |||
| 170 | 1.13 | 36 | |||
| 180 | 1.00 | 35 | |||
| 190 | 0.89 | 34 | |||
| 200 | 0.85 | 33 |
Fill Rates
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 2 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI | 46 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 5 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 35 sec. (± 05 sec.) |
