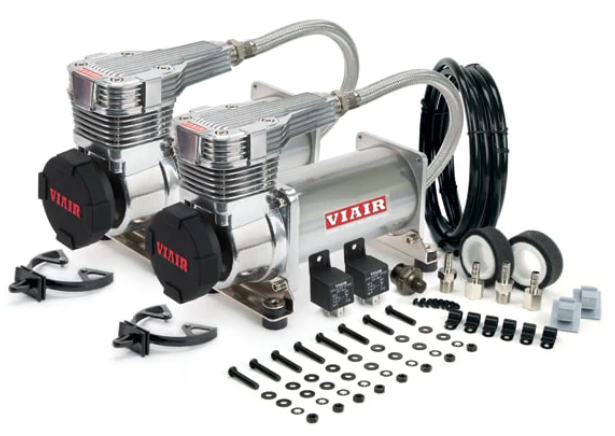

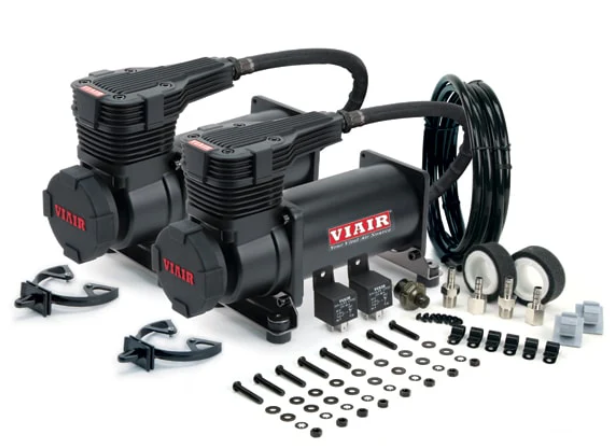

The 425C dual pack air compressors have a duty cycle of 33% at 175 PSI, and 50% at 100 PSI. It features upgraded internal components that make it a true 175 PSI-rated working pressure unit. An updated head design increases duty cycle while decreasing decibel levels. Available in Platinum or Stealth Black, it comes equipped with a stainless steel braided leader hose and inline check valve.
Specifications
SPECS:
CFM: 4.94 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 50% @ 100 PSI
Duty Cycle: 33% @ 175 PSI
Max. Working Pressure: 175 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 60-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

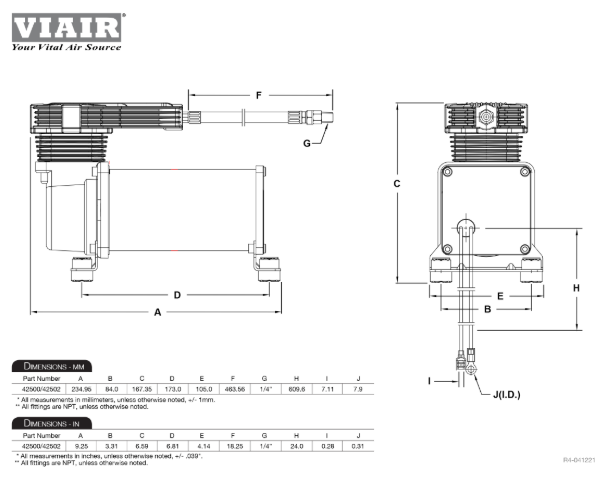

Dimensions: 9.25″L x 3.31″W x 6.59″H
Net Weight: 11.10 lbs.
FEATURES:
(2) 425C (Platinum or Stealth Black) Compressors
w/Thermal Overload Protectors
Stainless Steel Braided Leader Hose with Inline Check Valve
(2) Air Filter Assemblies
(2) VIAIR Removable Filter Covers
(2) Replacement Air Filter Elements
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
Set of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers, and Lock Washers
(2) Heavy Duty 40-Amp Relays
(1) Heavy Duty Pressure Switch (140 PSI on, 175 PSI off)
Air Line (For Remote Mount Filter Installation)
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 4.94 | 36 | 0 | 140.0 | 36 |
| 10 | 4.57 | 39 | 1.0 | 125.8 | 41 |
| 20 | 4.31 | 43 | 2.0 | 116.7 | 46 |
| 30 | 4.07 | 46 | 3.0 | 104.2 | 49 |
| 40 | 3.86 | 48 | 4.0 | 94.2 | 51 |
| 50 | 3.50 | 50 | 5.0 | 86.3 | 52 |
| 60 | 3.27 | 51 | 6.0 | 78.7 | 53 |
| 70 | 3.09 | 52 | 7.0 | 72.5 | 54 |
| 80 | 2.88 | 53 | 8.0 | 63.3 | 53 |
| 90 | 2.74 | 54 | 9.0 | 56.3 | 52 |
| 100 | 2.56 | 54 | 10.0 | 48.3 | 50 |
| 110 | 2.39 | 54 | 11.0 | 41.8 | 48 |
| 120 | 2.15 | 53 | 12.0 | 36.7 | 46 |
| 130 | 1.99 | 52 | |||
| 140 | 1.85 | 51 | |||
| 150 | 1.62 | 50 | |||
| 160 | 1.48 | 48 | |||
| 170 | 1.38 | 47 | |||
| 175 | 1.29 | 46 |
Fill Rates
TANK FILL RATE
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 175 PSI | 1 min. 20 sec. (± 10 sec.) |
| 140 to 175 PSI | 25 sec. (± 05 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 175 PSI | 1 min. 35 sec. (± 10 sec.) |
| 140 to 175 PSI | 30 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 175 PSI | 3 min. 20 sec. (± 10 sec.) |
| 140 to 175 PSI | 1 min. 05 sec. (± 05 sec.) |
