VIAIR | 425C Gen 2 Compressor
Color:
SELECT OPTIONS
Color:
Color:
Description
The 425C air compressor has a duty cycle of 33% at 175 PSI, and 50% at 100 PSI. It features upgraded internal components that make it a true 175 PSI-rated working pressure unit. An updated head design increases duty cycle while decreasing decibel levels. Available in Platinum or Stealth Black, it comes equipped with a stainless steel braided leader hose and inline check valve.
See Resources Section below for wiring Diagram Options
Specifications
SPECS:
CFM: 2.60 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 50% @ 100 PSI
Duty Cycle: 33% @ 175 PSI
Max. Working Pressure: 175 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

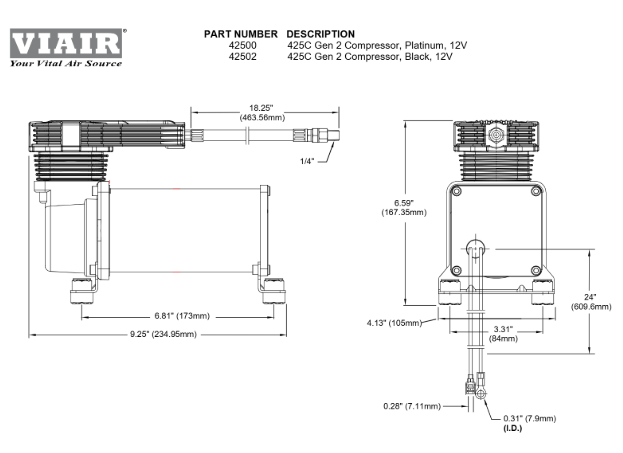

Dimensions: 9.25″L x 4.14″W x 6.59″H
Net Weight: 11.10 lbs.
FEATURES:
Thermal Overload Protector

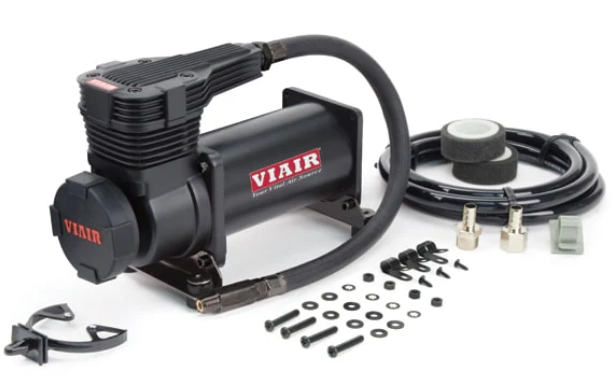

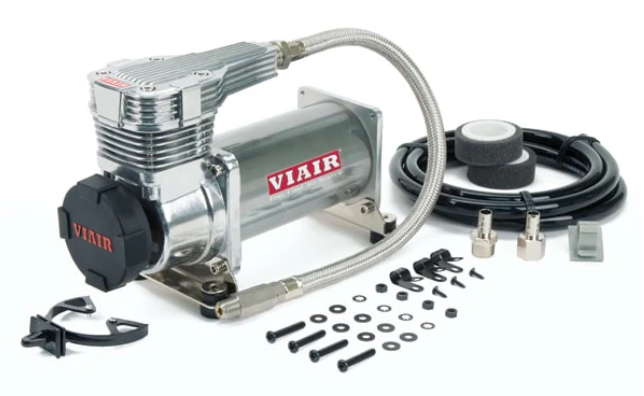

425C (Platinum or Stealth Black) Compressor
Stainless Steel Braided Leader Hose with Inline Check Valve
Air Filter Assembly
VIAIR Removable Filter Cover
Replacement Air Filter Elements
Remote Mount Filter Assembly
Leader Hose Clip
Air Line Clip with Included Hardware
Mounting Hardware
Air Line (For Remote Mount Filter Installation)
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.60 | 19 | 0 | 73.5 | 19 |
| 10 | 2.35 | 21 | 1.0 | 64.2 | 22 |
| 20 | 2.18 | 22 | 2.0 | 59.7 | 24 |
| 30 | 2.09 | 24 | 3.0 | 54.2 | 26 |
| 40 | 1.97 | 26 | 4.0 | 49.3 | 27 |
| 50 | 1.82 | 25 | 5.0 | 45.3 | 28 |
| 60 | 1.71 | 27 | 6.0 | 41.7 | 28 |
| 70 | 1.63 | 27 | 7.0 | 38.3 | 28 |
| 80 | 1.54 | 28 | 8.0 | 35.2 | 28 |
| 90 | 1.44 | 28 | 9.0 | 31.7 | 28 |
| 100 | 1.35 | 28 | 10.0 | 28.5 | 28 |
| 110 | 1.27 | 28 | 11.0 | 26.3 | 27 |
| 120 | 1.18 | 28 | 12.0 | 23.8 | 26 |
| 130 | 1.12 | 28 | |||
| 140 | 1.09 | 28 | |||
| 150 | 0.98 | 27 | |||
| 160 | 0.93 | 27 | |||
| 170 | 0.89 | 26 | |||
| 175 | 0.84 | 26 |
Fill Rates
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 175 PSI | 2 min. 20 sec. (± 10 sec.) |
| 140 to 175 PSI | 40 sec. (± 05 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 175 PSI | 2 min. 55 sec. (± 10 sec.) |
| 140 to 175 PSI | 50 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 2 min. 30 sec. (± 10 sec.) |
| 110 to 145 PSI | 52 sec. (± 05 sec.) |
