VIAIR | 400P RVS Automatic Tire Inflator (40044)
SELECT OPTIONS
Description
Maintain proper tire pressure on your Class C motorhome, toy hauler, or camper van quickly and easily. VIAIR’s automatic RVS high-pressure air compressor is built for the adventure with RV-specific accessories and unmatched power as the only tire inflator on the market capable of airing up to 150 PSI.

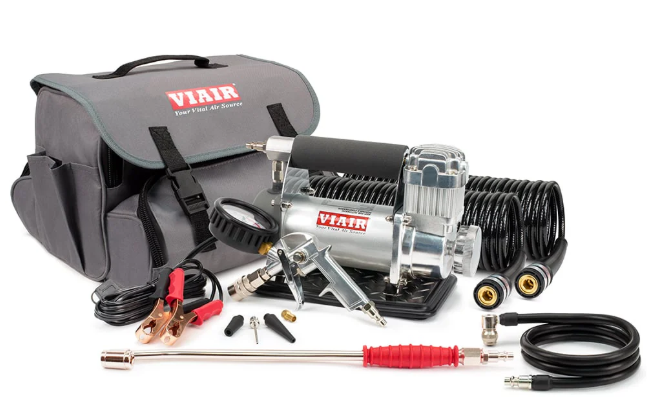

What’s in the Box
Compressor
Extension Hoses
Inflation Tips Kit
Chuck Hose
45-Degree Chuck Extension
Inflation Gun
Specifications
SPECS:
CFM: 2.30 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Max. Tire Size: 275/80R22.5
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -4°F

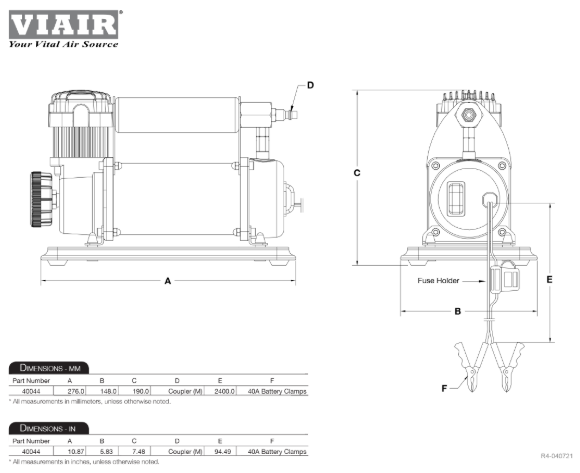

Dimensions: 10.9"L x 5.8"W x 7.5"H
Net Weight: 10.75lbs.
Power Cord Length: 8ft.
Primary Air Hose Length: 30ft.
Extension Air Hose Length: 30ft.
90-Degree Twist-On Chuck Air Hose Length: 40in.
FEATURES:
Thermal Overload Protector
Automatic Shut-Off Function
Primary & Extension Air Hoses
Vibration-Resistant Diamond-Plate Sand Tray
Heat Shielded Quick Connect Coupling
Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
Heavy Duty Dual Battery Clamps with Inline Fuse
45-Degree Extended Reach Chuck (For Dual Rear Wheels)
90-Degree Twist-On Chuck
Heavy Duty Deluxe Carry Bag
3pc. Inflation Tips Kit
Presta Valve Adaptor
PLEASE NOTE:
The 400P-RVS does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.
Performance
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.30 | 17 | 0 | 65.1 | 17 |
| 10 | 2.13 | 19 | 1.0 | 58.4 | 20 |
| 20 | 1.98 | 21 | 2.0 | 53.0 | 23 |
| 30 | 1.86 | 23 | 3.0 | 48.5 | 24 |
| 40 | 1.75 | 24 | 4.0 | 44.2 | 26 |
| 50 | 1.64 | 25 | 5.0 | 40.2 | 27 |
| 60 | 1.54 | 26 | 6.0 | 37.0 | 28 |
| 70 | 1.44 | 27 | 7.0 | 33.3 | 29 |
| 80 | 1.37 | 27 | 8.0 | 30.1 | 28 |
| 90 | 1.28 | 28 | 9.0 | 27.0 | 28 |
| 100 | 1.19 | 29 | 10.0 | 22.1 | 27 |
| 110 | 1.11 | 29 | |||
| 120 | 1.04 | 28 | |||
| 130 | 0.95 | 28 | |||
| 140 | 0.85 | 27 | |||
| 150 | 0.71 | 27 |
Fill Rates
| 33″ RV TIRE (245/70 R19.5) | FILL RATE |
|---|---|
| 50 to 60 PSI | 53 sec. (± 05 sec.) |
| 60 to 80 PSI | 1 min. 50 sec. (± 05 sec.) |
| 80 to 90 PSI | 1 min. 5 sec. (± 05 sec.) |
| 90 to 110 PSI | 2 min. 20 sec. (± 10 sec.) |
| 37″ RV TIRE (255/70 R22.5) | FILL RATE |
| 50 to 60 PSI | 1 min. 15 sec. (± 05 sec.) |
| 60 to 80 PSI | 2 min. 50 sec. (± 10 sec.) |
| 80 to 90 PSI | 1 min. 40 sec. (± 05 sec.) |
| 90 to 110 PSI | 3 min. 35 sec. (± 10 sec.) |
| 110 to 120 PSI | 2 min. 15 sec. (± 10 sec.) |
| 40″ RV TIRE (275/80 R22.5) | FILL RATE |
| 50 to 60 PSI | 1 min. 45 sec. (± 05 sec.) |
| 60 to 80 PSI | 3 min. 45 sec. (± 10 sec.) |
| 80 to 90 PSI | 2 min. 47 sec. (± 10 sec.) |
| 90 to 110 PSI | 2 min. 40 sec. (± 10 sec.) |
| 110 to 120 PSI | 2 min. 50 sec. (± 10 sec.) |
