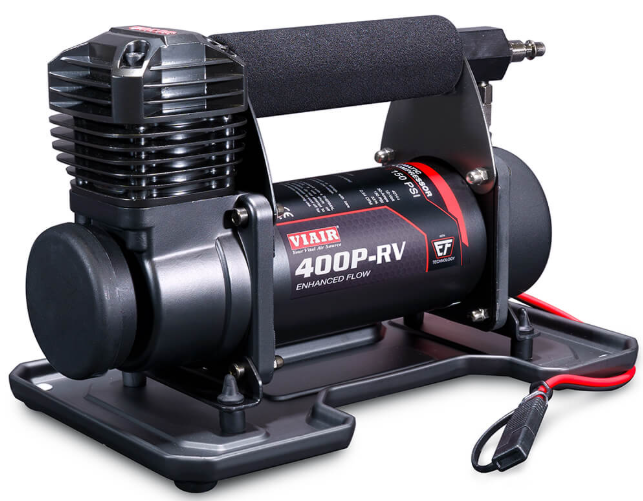

VIAIR | 400P-RV EF Automatic Portable Compressor (40144)
SELECT OPTIONS
Description
The 400P-RV EF is an updated version of our popular 400P RV. It features VIAIR's new EF (Enhanced Flow) Technology that delivers up to 10% faster fill and 20% more performance, getting you back on the road faster than ever. EF compressors also feature an SAE power cord that allows you to use different power attachments for maximum versatility, an updated head for better heat dissipation and the same legendary VIAIR durability. The 400P-RV EF is compatible with dually tires, has 60ft of total hose reach and comes with a 40" twist-on chuck so you don't have to crouch while inflating your tires.
What’s in the Box
Compressor
SAE Battery Clamps
90 Degree Extension
Inflation Gun
Inflation Tips Kit
Carry Bag
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Max. Ambient Temp: 158°F
Max. Ambient Temp: -40°F

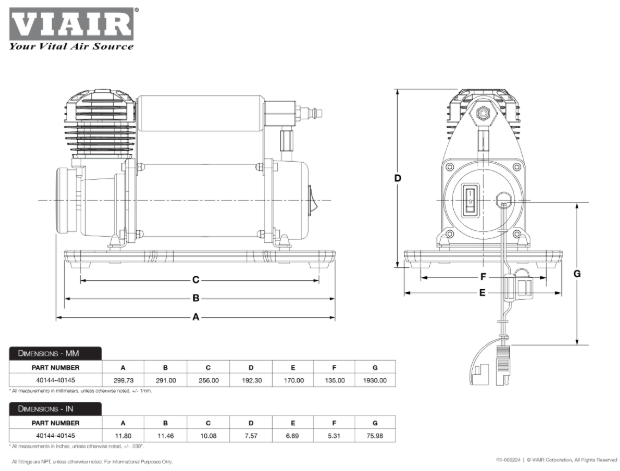

Dimensions: 11.8" x 7.57" x 6.69"
Net Weight: 10.35 lbs.
Power Cord Length: 6 ft.
Primary Air Hose Length: 25 ft.
Extension Air Hose Length: 30ft.
FEATURES:
EF (Enhanced Flow) Technology
2-Pin SAE Power connection with 40-Amp inline fuse holder
Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
Primary & Extension Air Hoses
45-Degree Extended Reach Chuck
3 pc. Inflation Tips Kit and Presta valve Adapter
Patented I-Beam Sand Tray
Stealth Black Look
Rugged Carry Bag
High Flow output for Oversize Tires
Performance
| PSI | CFM | AMP | BAR | LPM | AMP |
|---|---|---|---|---|---|
| 0 | 2.59 | 14 | 0 | 73.3 | 14 |
| 10 | 2.38 | 17 | 1 | 66.0 | 18 |
| 20 | 2.26 | 19 | 2 | 61.3 | 21 |
| 30 | 2.17 | 22 | 3 | 57.3 | 24 |
| 40 | 2.05 | 23 | 4 | 52.3 | 26 |
| 50 | 1.93 | 25 | 5 | 49.3 | 27 |
| 60 | 1.84 | 26 | 6 | 45.7 | 28 |
| 70 | 1.75 | 27 | 7 | 43.3 | 28 |
| 80 | 1.66 | 28 | 8 | 40.0 | 29 |
| 90 | 1.59 | 28 | 9 | 37.3 | 29 |
| 100 | 1.53 | 28 | 10 | 34.3 | 29 |
| 110 | 1.45 | 29 | |||
| 120 | 1.38 | 29 | |||
| 130 | 1.32 | 29 | |||
| 140 | 1.25 | 29 | |||
| 150 | 1.18 | 28 |
Refer to this chart for the latest performance data for this compressor, data shown on the package might not be up to date.
Fill Rates
Fill Rates
| 35 x 12.5 R15 | FILL RATE |
|---|---|
| 0 to 40 PSI | 6 min. 25 sec. (+/- 15 sec.) |
| 10 to 40 PSI | 4 min. 56 sec. (+/- 15 sec.) |
| 37 x 12.5 R15 | FILL RATE |
| 0 to 40 PSI | 7 min. 15 sec. (+/- 15 sec.) |
| 10 to 40 PSI | 5 min. 30 sec. (+/- 15 sec.) |
RV Tire Fill Rates
| 245/70R19.5 | FILL RATE |
|---|---|
| 50 to 60 PSI | 40 sec. (+/- 5 sec.) |
| 60 to 80 PSI | 1 min. 39 sec. (+/- 5 sec.) |
| 80 to 90 PSI | 55 sec. (+/- 5 sec.) |
| 90 to 110 PSI | 2 min. 2 sec. (+/- 10 sec.) |
| 255/70R22.5 | FILL RATE |
| 50 to 60 PSI | 1 min. 10 sec. (+/- 5 sec.) |
| 60 to 80 PSI | 2 min. 37 sec. (+/- 10sec.) |
| 80 to 90 PSI | 1 min. 25 sec. (+/- 5 sec.) |
| 90 to 110 PSI | 3 min. 20 sec. (+/- 10sec.) |
| 100 to 120 PSI | 1 min. 35 sec. (+/- 5 sec.) |
| 275/80R22.5 | FILL RATE |
| 50 to 60 PSI | 1 min. 37 sec. (+/- 5 sec.) |
| 60 to 80 PSI | 3 min. 27 sec. (+/- 10 sec.) |
| 80 to 90 PSI | 1 min. 52 sec. (+/- 5 sec.) |
| 90 to 110 PSI | 2 min. 7 sec. (+/- 10 sec.) |
