Sale price$387.95
Quantity:

Description

Our 400P-RV Automatic is a powerful portable tire inflator kit that can inflate 275/80/22.5 tires from 80 to 90 psi in under 3 Minutes. The gas station style trigger control function eliminates the need to turn the compressor OFF and ON between each tire fill, making multi-tire inflation a breeze and allowing you to check tire pressure during inflation by simply releasing the inflation gun trigger.

What’s in the Box

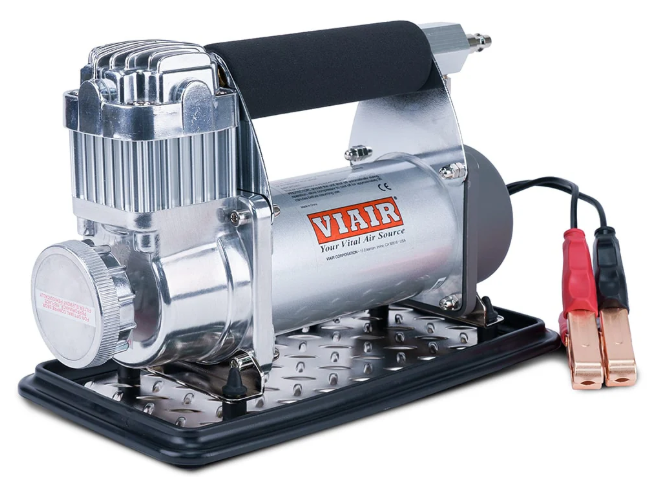

  • Compressor

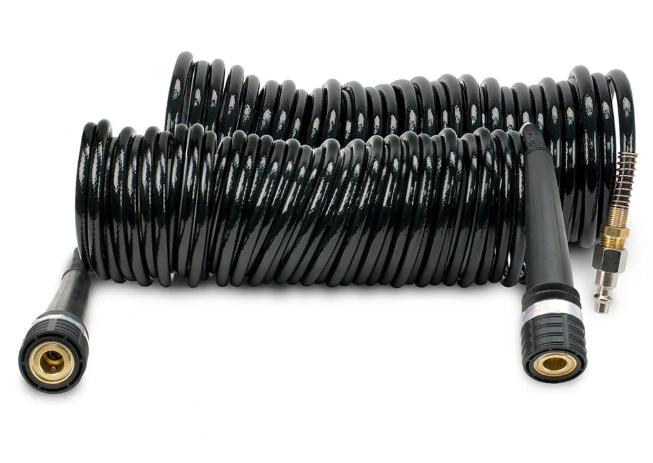

  • Coil Hoses

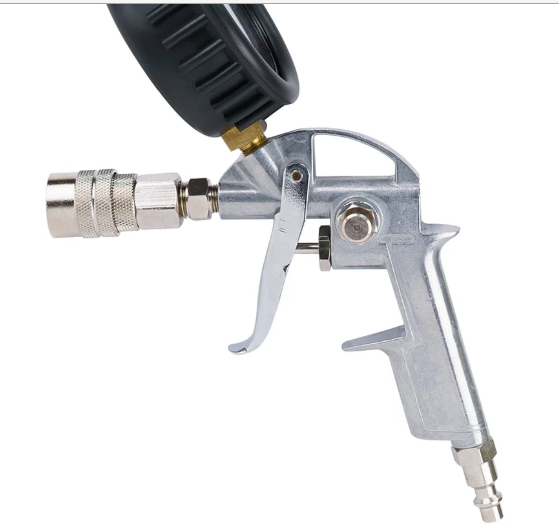

  • Inflation Gun

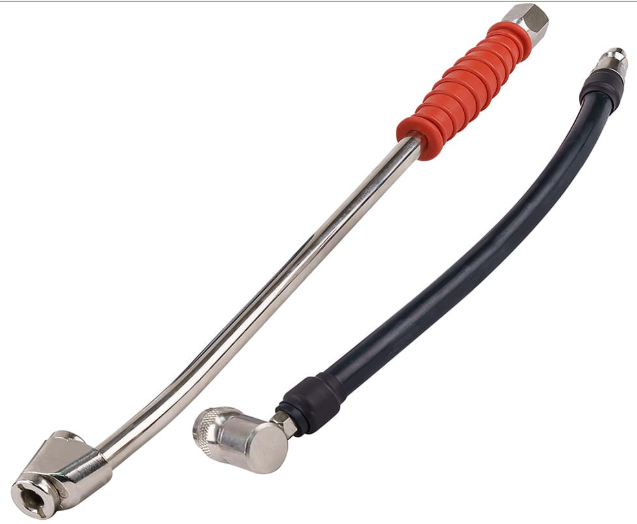

  • 45-Degree & Twist-on Chuck (Extensions)
  • Inflation Tips Kit

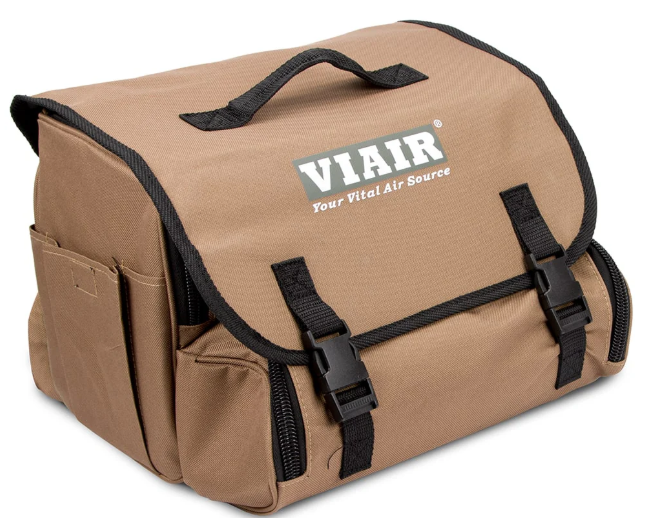

  • Carry Bag

Specifications

SPECS:

CFM: 2.30 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -4°F
Dimensions: 10.9"L x 5.8"W x 7.5"H
Net Weight: 10.75 lbs.
Power Cord Length: 8 ft.
Primary Air Hose Length: 30 ft.
Extension Air Hose Length: 30 ft.

FEATURES:

Thermal Overload Protector
Automatic Shut-Off Function
Primary & Extension Air Hoses
Vibration-Resistant Diamond-Plate Sand Tray
Heat Shielded Quick Connect Coupling
Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
Heavy Duty Dual Battery Clamps with Inline Fuse
45-Degree Extended Reach Chuck (For Dual Rear Wheels)
90-Degree Twist-On Chuck
Heavy Duty Deluxe Carry Bag
3 pc. Inflation Tips Kit
Presta Valve Adaptor

PLEASE NOTE:
The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 400P-RV does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 2.30 17 0 65.1 17
10 2.13 19 1.0 58.4 20
20 1.98 21 2.0 53.0 23
30 1.86 23 3.0 48.5 24
40 1.75 24 4.0 44.2 26
50 1.64 25 5.0 40.2 27
60 1.54 26 6.0 37.0 28
70 1.44 27 7.0 33.3 29
80 1.37 27 8.0 30.1 28
90 1.28 28 9.0 27.0 28
100 1.19 29 10.0 22.1 27
110 1.11 29
120 1.04 28
130 0.95 28
140 0.85 27
150 0.71 27



Fill Rates

31″ X 10.5″ FILL RATE
0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
33″ X 12.5″ FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 05 sec.)
40″ RV TIRE (275/80 R22.5) FILL RATE
50 to 60 PSI 1 min. 45 sec. (± 05 sec.)
60 to 80 PSI 3 min. 45 sec. (± 10 sec.)
80 to 90 PSI 2 min. 47 sec. (± 10 sec.)
90 to 110 PSI 2 min. 40 sec. (± 10 sec.)
110 to 120 PSI 2 min. 50 sec. (± 10 sec.)



Product Resources

User Manual

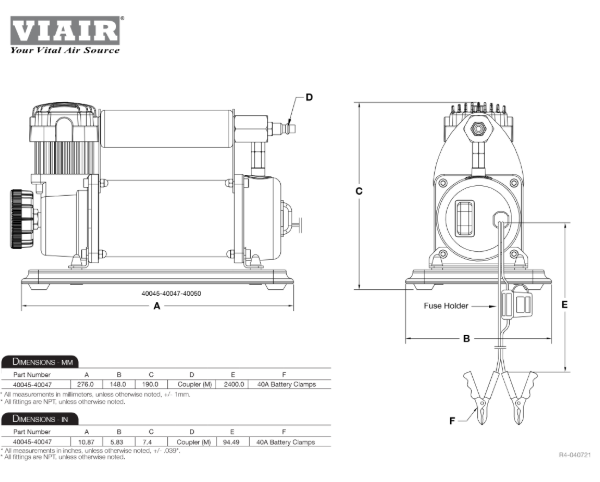

Dimensional Drawing
