Description

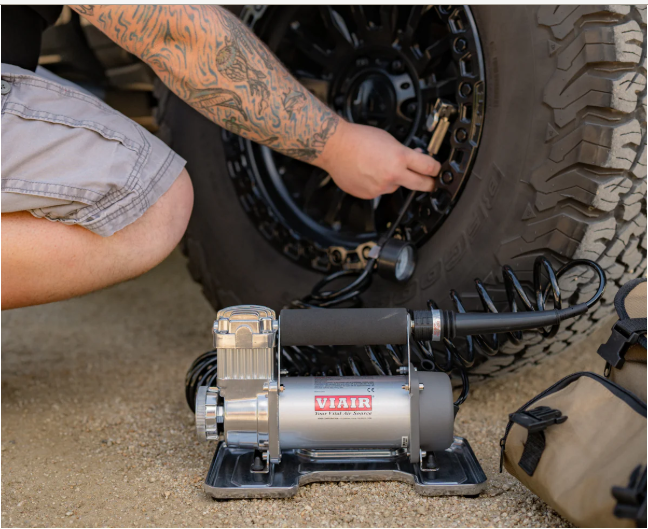

Fill your car, truck, SUV, or off-road vehicles quickly and easily with the VIAIR portable compressor. With its powerful direct-drive motor, maintenance-free operation, a full hour of runtime, and market-leading IP54 dust and water resistance rating, the 400P Portable Compressor performs perfectly in even the toughest conditions.
What’s in the Box
Specifications
SPECS:
CFM: 2.30 @ 0 PSI
12-Volt / 24-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. 12V Amp Draw: 30-Amps
Max. 24V Amp Draw: 15-Amps
Ingress Protection Rating: IP54

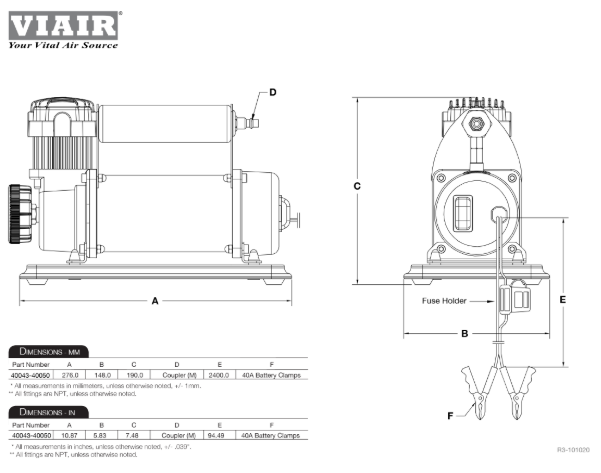

Dimensions: 10.9"L x 5.8"W x 7.5"H
Net Weight: 10.40 lbs.
Power Cord Length: 8 ft.
Air Hose Length: 25 ft.
FEATURES:
Thermal Overload Protector
5-in-1 Inflator/Deflator Air Hose
with Inline 100 PSI Gauge
I-beam Sand Tray
Deluxe Dual Compartment Carry Bag
Inline Fuse Holder
Dual Battery Clamps
3 pc. Inflation Tips Kit
Presta Valve Adaptor
PLEASE NOTE:
The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 400P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 400P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.30 | 17 | 0 | 65.1 | 17 |
| 10 | 2.13 | 19 | 1.0 | 58.4 | 20 |
| 20 | 1.98 | 21 | 2.0 | 53.0 | 23 |
| 30 | 1.86 | 23 | 3.0 | 48.5 | 24 |
| 40 | 1.75 | 24 | 4.0 | 44.2 | 26 |
| 50 | 1.64 | 25 | 5.0 | 40.2 | 27 |
| 60 | 1.54 | 26 | 6.0 | 37.0 | 28 |
| 70 | 1.44 | 27 | 7.0 | 33.3 | 29 |
| 80 | 1.37 | 27 | 8.0 | 30.1 | 28 |
| 90 | 1.28 | 28 | 9.0 | 27.0 | 28 |
| 100 | 1.19 | 29 | 10.0 | 22.1 | 27 |
| 110 | 1.11 | 29 | |||
| 120 | 1.04 | 28 | |||
| 130 | 0.95 | 28 | |||
| 140 | 0.85 | 27 | |||
| 150 | 0.71 | 27 |
24-Volt Compressor - Supply Voltage 28 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.54 | 10 | 0 | 72.0 | 10 |
| 10 | 2.26 | 11 | 1.0 | 62.2 | 11 |
| 20 | 2.12 | 12 | 2.0 | 55.4 | 12 |
| 30 | 1.94 | 13 | 3.0 | 50.7 | 13 |
| 40 | 1.84 | 13 | 4.0 | 46.3 | 14 |
| 50 | 1.70 | 14 | 5.0 | 43.4 | 14 |
| 60 | 1.62 | 14 | 6.0 | 40.5 | 14 |
| 70 | 1.55 | 14 | 7.0 | 35.7 | 14 |
| 80 | 1.48 | 14 | 8.0 | 32.1 | 14 |
| 90 | 1.41 | 15 | 9.0 | 27.0 | 14 |
| 100 | 1.27 | 14 | 10.0 | 22.1 | 14 |
| 110 | 1.20 | 14 | |||
| 120 | 1.09 | 14 | |||
| 130 | 0.95 | 14 | |||
| 140 | 0.85 | 14 | |||
| 150 | 0.71 | 14 |
Fill Rates
12-Volt Compressor
| 31″ X 10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 3 min. 00 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 35 sec. (± 05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 20 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 05 sec. (± 05 sec.) |
| 35″ X 12.5″ | 'FILL RATE |
| 0 to 30 PSI | 5 min. 20 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 45 sec. (± 05 sec.) |
24-Volt Compressor
| 31″ X 10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 2 min. 50 sec. (± 05 sec.) |
| 15 to 30 PSI | 1 min. 25 sec. (± 05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 00 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 00 sec. (± 05 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 05 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 40 sec. (± 05 sec.) |
