VIAIR | 400P EF Portable Compressor (40143)
SELECT OPTIONS
Description
The 400P EF is an updated version of our popular 400P Portable Compressor. It features VIAIR's new EF (Enhanced Flow) Technology that delivers up to 10% faster fill and 20% more performance, getting you back on the road faster than ever. EF compressors also feature an SAE power cord that allows you to use different power attachments for maximum versatility, an updated head for better heat dissipation and the same legendary VIAIR durability.
What’s in the Box
Compressor
SAE Power Connects
Coil Hose
Inflation Tips kit
Carry Bag
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 40 PSI - 33% @100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Max. Ambient Temp: 158°F
Max. Ambient Temp: -40°F

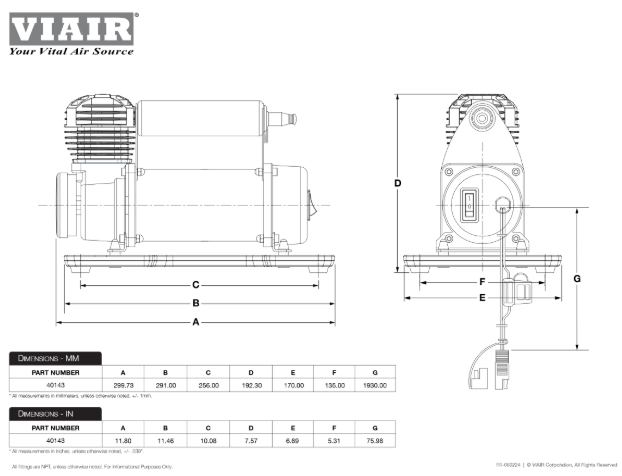

Dimensions: 11.8" x 7.57" x 6.69"
Net Weight: 10.35 lbs.
Power Cord Length: 6 ft.
Air Hose Length: 25 ft.
FEATURES:
EF (Enhanced Flow) Technology
2-Pin SAE Power connection with 40-Amp inline fuse holder
5-in-1 Inflator/Deflator Air Hose with Inline 100 PSI Gauge
3 pc. Inflation Tips kit and Presta Valve adapter
Patented I-Beam Sand Tray
Stealth Black Look
Rugged Carry Bag
High Flow output for Oversize Tires
Performance
| PSI | CFM | AMP | BAR | LPM | AMP |
|---|---|---|---|---|---|
| 0 | 2.59 | 14 | 0 | 73.3 | 14 |
| 10 | 2.38 | 17 | 1 | 66.0 | 18 |
| 20 | 2.26 | 19 | 2 | 61.3 | 21 |
| 30 | 2.17 | 22 | 3 | 57.3 | 24 |
| 40 | 2.05 | 23 | 4 | 52.3 | 26 |
| 50 | 1.93 | 25 | 5 | 49.3 | 27 |
| 60 | 1.84 | 26 | 6 | 45.7 | 28 |
| 70 | 1.75 | 27 | 7 | 43.3 | 28 |
| 80 | 1.66 | 28 | 8 | 40.0 | 29 |
| 90 | 1.59 | 28 | 9 | 37.3 | 29 |
| 100 | 1.53 | 28 | 10 | 34.3 | 29 |
| 110 | 1.45 | 29 | |||
| 120 | 1.38 | 29 | |||
| 130 | 1.32 | 29 | |||
| 140 | 1.25 | 29 | |||
| 150 | 1.18 | 28 |
Refer to this chart for the latest performance data for this compressor, data shown on the package might not be up to date.
Fill Rates
| 35 x 12.5 R15 | FILL RATE |
|---|---|
| 0 to 40 PSI | 6 min. 25 sec. (+/- 15 sec.) |
| 10 to 40 PSI | 4 min. 56 sec. (+/- 15 sec.) |
| 37 x 12.5 R15 | FILL RATE |
| 0 to 40 PSI | 7 min. 15 sec. (+/- 15 sec.) |
| 10 to 40 PSI | 5 min. 30 sec. (+/- 15 sec.) |
